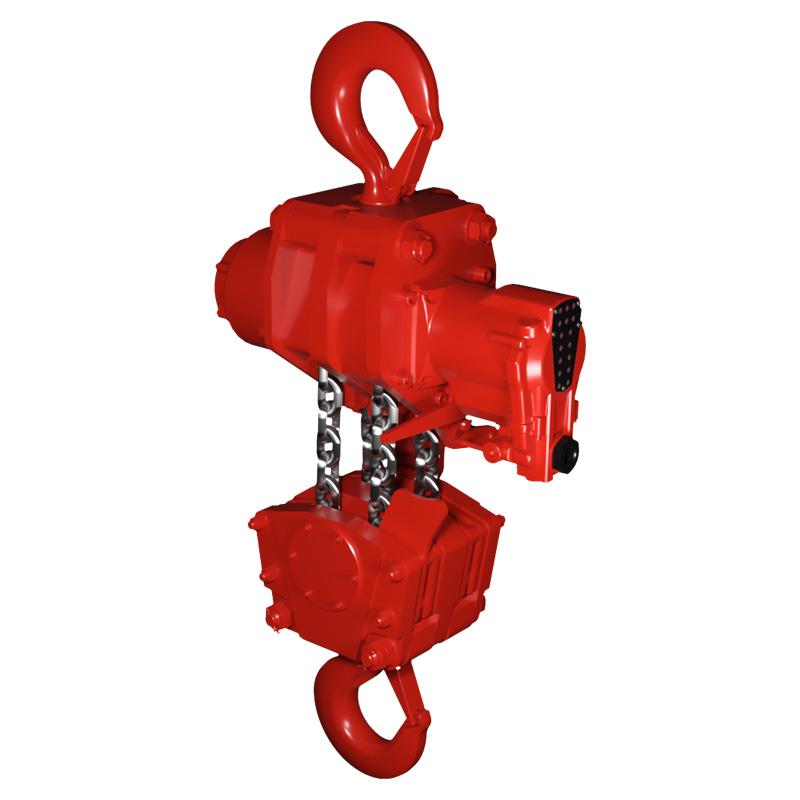

The NEW RED ROOSTER TMH series air chain hoists has the highest lifting speed on the hoist market. With M4 classification of mechanism this hoist is extremely durable. This hoist will guarantee the continuity of your process. The TMH hoists are designed with a supporting eye for easy installation.
Standard features:
• Precise variable speed control (cord- and pendant control)
• Optimum control of the load, very precise positioning
• Main air shut off valve
• Mechanical end stop system
• Load limiter built-in without loss of headroom
• Working air pressure 0,4 - 0,63 MPa (4-6,3 bar)
• Piped away exhaust air
Related products
16X45
Chain EN 818-7
AC60-F10DM-8-B
Modular FRL Unit
Specifications
| Brand | Red Rooster |
| Number of chain falls | 4 |
| Lowering speed full load (m/min) | 1,6 |
| Lowering speed 0-load (m/min) | 1,6 |
| Weight incl. 3m lift (kg) | 466 |
| Lifting speed full load (m/min) | 0,8 |
| Lifting speed 0-load (m/min) | 1,6 |
| Chain weight (kg/m) | 5,7 |
| Chain (mm) | 16 x 45 |
| Chainbag/Chainbucket | + |
| Loadlimiter | + |
| Airconnection | 1"BSPT |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 58,3 |

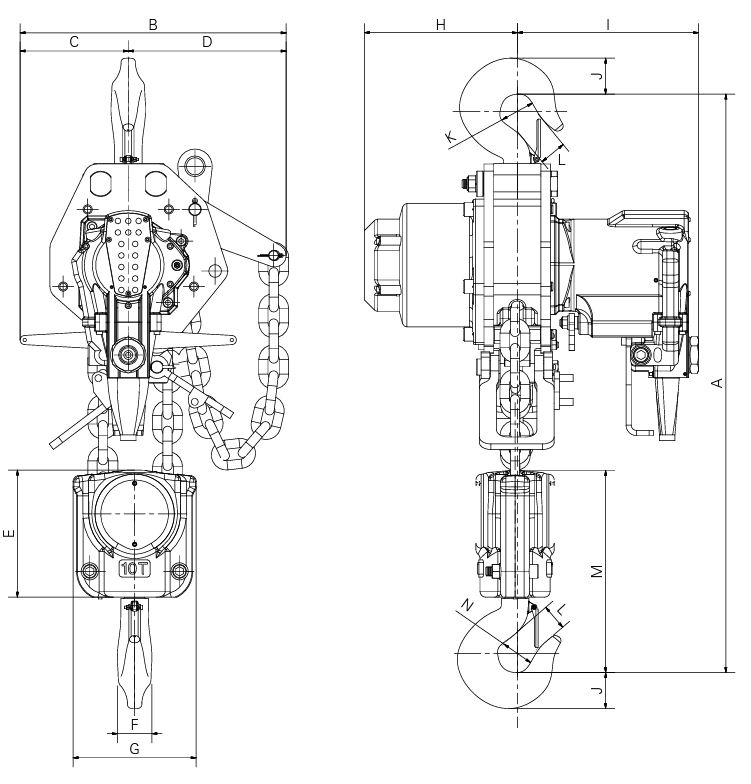

| mm A | 1028 |
| mm B | 500 |
| mm C | 150 |
| mm D | 350 |
| mm F | 64 |
| mm G | 315 |
| mm H | 326 |
| mm I | 387 |
| mm J | 80 |
| mm K | 110 |
| mm L | 78 |
| mm M | 475 |
| mm N | 110 |
| Hosediameter (mm) | 25 |
| SMC Airtreatment unit | AC60-F10DM-8-B |
| Capacity (kg) | 20.000 |
| Airconnection exhaust | 1" |
| EAN | 8717981400539 |
