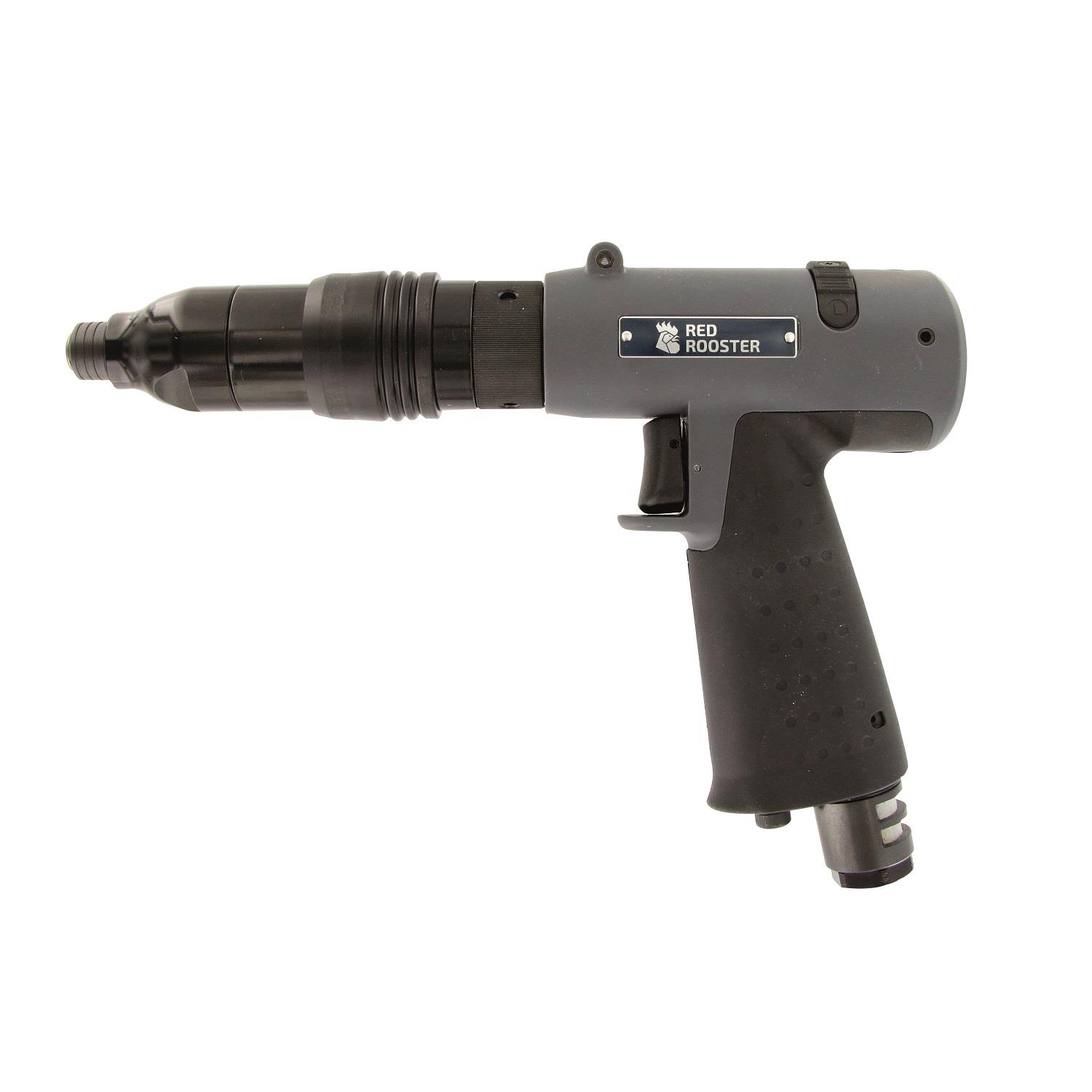

The RED ROOSTER Shut-Off screwdrivers have a large torque-range, are highly accurate and have a low vibration level. Very ergonomic design and low noise level. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This air tool is designed for the assembly industry, where threaded fasteners are used.
Characteristics:
* New body-design (in composite)
* Reversible
* Revolving rear-exhaust, silenced
* Pistol-version with air on top
* ergonomic grip
* easily adjustable
Related products
AC30A-F03E-B
Modular FRL Unit
HTB-0
Spring Balancer Hosereel
Related accessories
766-027
Side Handle
61022-TH001
Tool Holder, diameter 42mm
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 5 |
| RPM | 1700 |
| Torque (Nm) | 3,5 - 5,0 |
| Airconsumption (l/s) | 12 |
| Weight (kg) | 1,1 |
| Hexagon | 1/4" |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

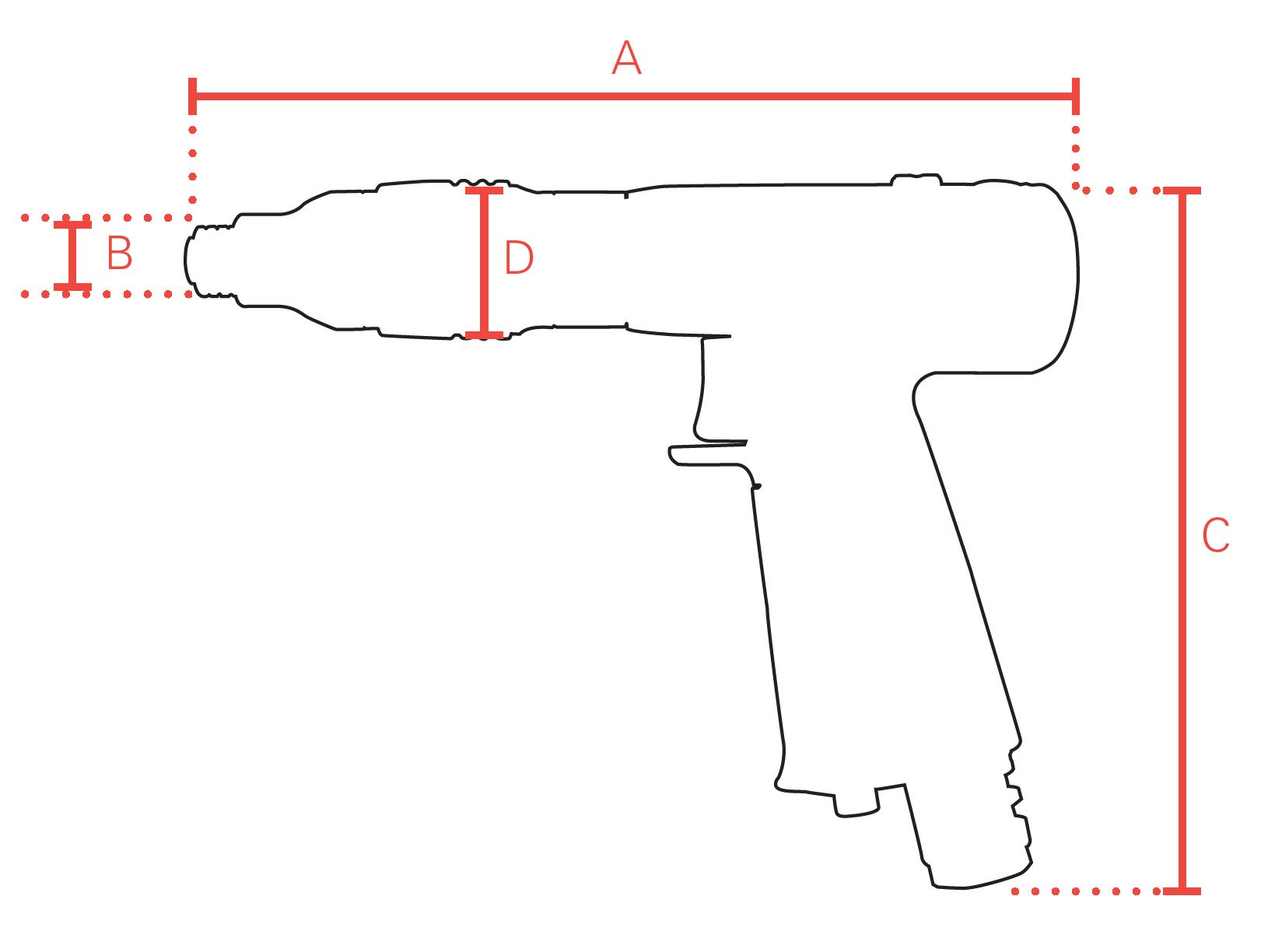

| mm A | 238 |
| mm B | 18 |
| mm C | 157 |
| Hosediameter (mm) | 6,5 |
| Execution | Pistol |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 0,1 |
| Vibration uncertainty (m/s²) | 0,51 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 73,2 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981279227 |
