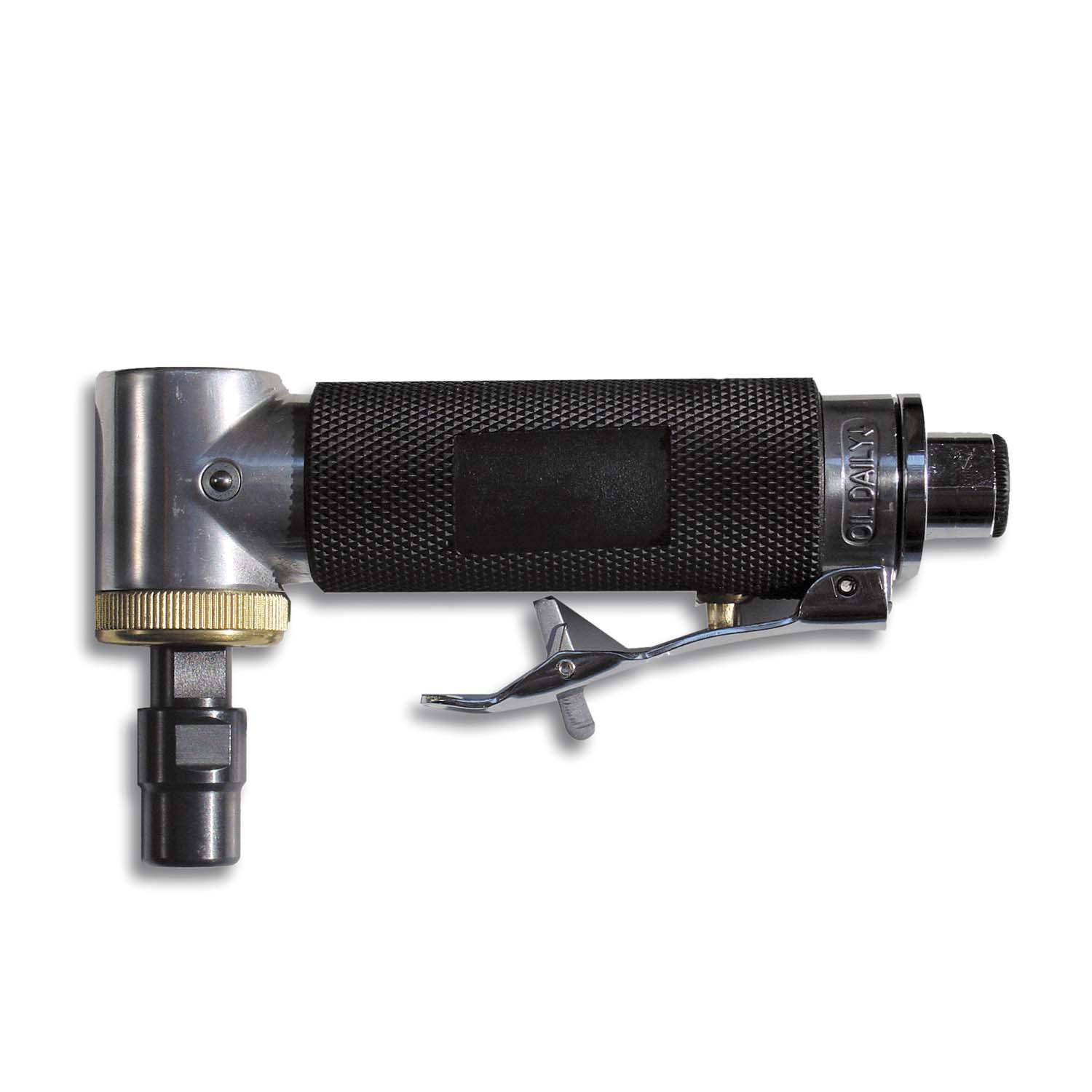

RED ROOSTER die grinders are extremely suitable for de-burring applications as well as weld seam finishing and general die grinding applications.
Characteristics:
* The RRG range of die grinders are developed for enhanced productivity.
* The rubber cover allows the hand to grip the tool firmly due to the unique ergonomic design.
* The grinders have an adjustable rear exhaust.
* Air inlet with a swivel allowing the tool to be very flexible, especially in difficult access areas.
* When depressed fully the safety lever lays flat against the tool adding extra comfort for the operator.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
1001-0659-00-01
Adaptor 3mm for 6mm Chuck
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| RPM | 20.000 |
| Airconsumption (l/s) | 4,9 |
| Weight (kg) | 0,55 |
| Sound level (dB(A)) | 80 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

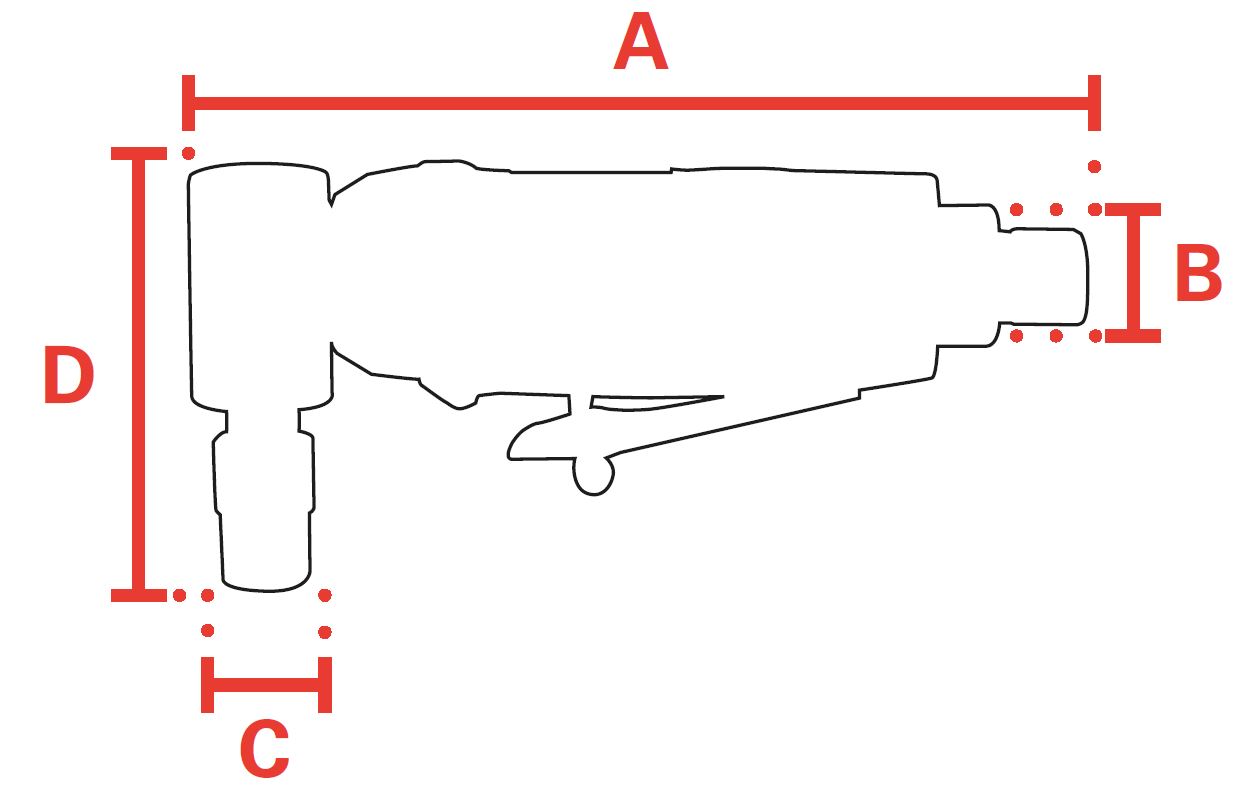

| mm A | 154 |
| mm B | 38 |
| mm C | 19 |
| mm D | 82 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 6 |
| Power (kW) | 0,22 |
| Vibration level (m/s²) | 1 |
| Wheel size (mm) | 40 |
| Safety standard | EN ISO 11148-7 |
| EAN | 8717981033645 |
