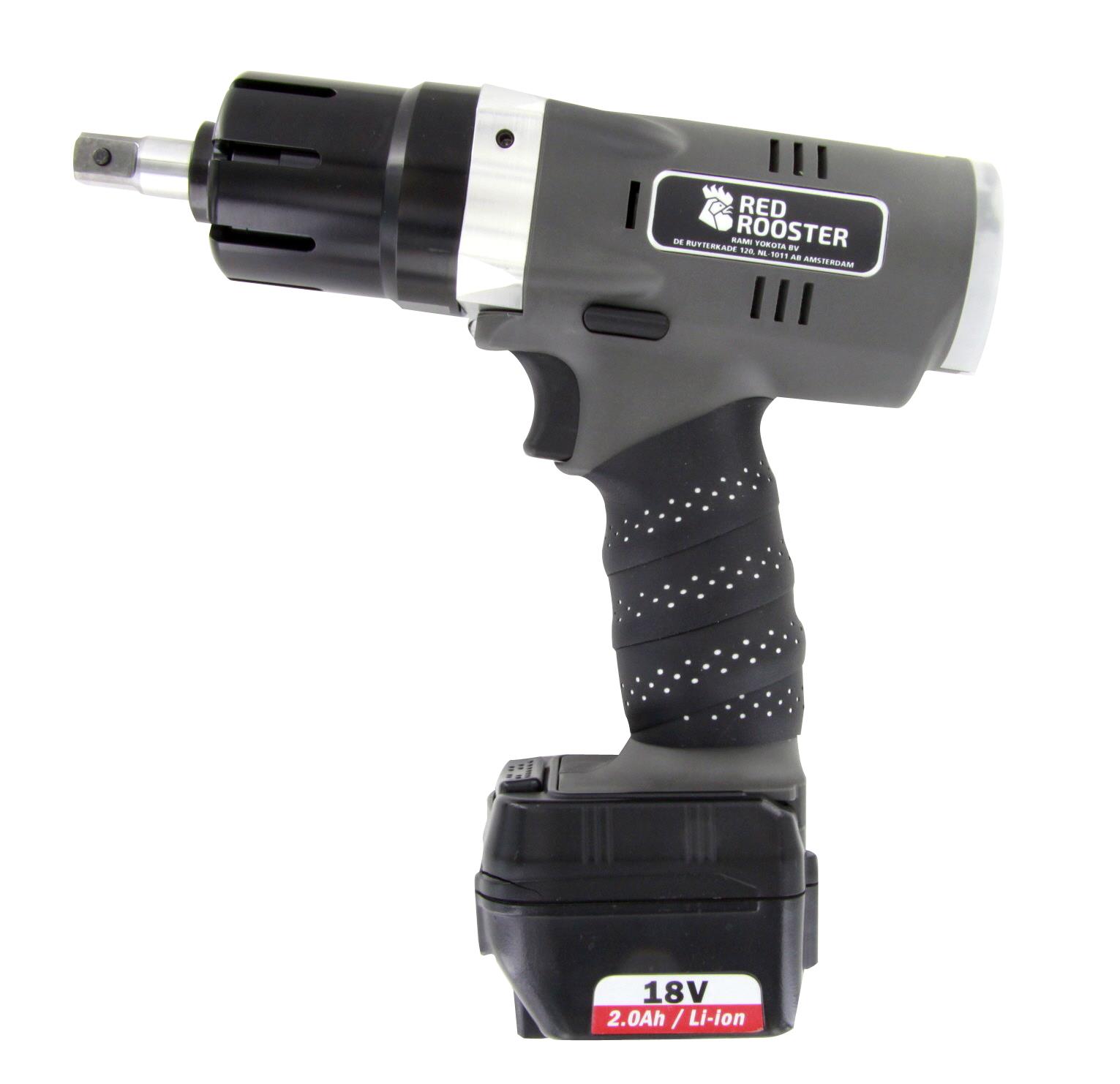

RED ROOSTER Cordless shut-off impulse wrench. High tightening speed combined with good accuracy. No reaction forces during the tightening process. Brushless motor for long motor life and high efficiency. No tightening functionality when battery charge is low, thus process safety improves. Very well suited in areas where cables and hoses impede handling flexibility of tools, such as interiors of cars, coaches and trains.
Characteristics:
• Brushless motor
• Lithium-Ion battery (choice for 2,5 Ah or 5,0 Ah capacity)
• LED status indicates: Reverse, OK, NG, Battery low
• Torque adjustable
• Fine-tuning on hardness of the joint, electronically
• Variable speed control with non-contact trigger
• Run-down speed: 3200 RPM
Battery and charger to be ordered separately
Related products

BB200D-325
18V 2.5Ah Battery, Li-ion

B74SC180B
Programmer

BB200D-350
18V 5.0Ah Battery, Li-ion

B84192B
18-20V Charger

E86B-VD
Power Cord (EU)
Related accessories

C16180C-40
Battery Protection Cover 18V 4.0 Ah

C16180C-20
Battery Protection Cover 18V 2.0 Ah

61022-TH005
Tool Holder

B10PW15
Back Panel Cover (ALU)
Specifications
Brand | Red Rooster Industrial |
Square Drive | 1/2" |
Bolt capacity (mm) | 8 - 10 |
RPM | 3200 |
Torque (Nm) | 45 - 65 |
Weight w/o battery (kg) | 1,9 |

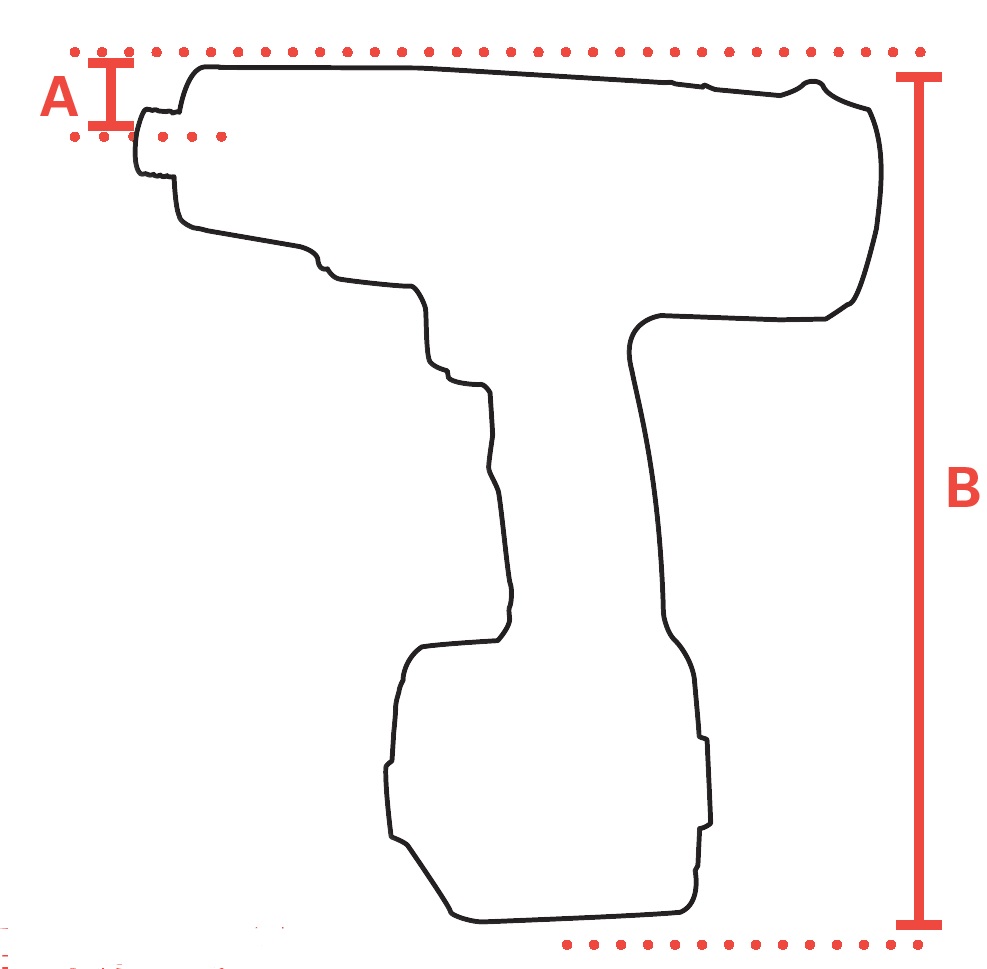

mm A | 29 |
mm B | 240 |
Battery voltage (Volt) | 18 |
Battery type Li-ion….(Ah) | 2,5 / 5,0 |
Safety standard | EN ISO 11148-6 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | 12,255 |
Vibration uncertainty (m/s²) | 1,5 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | 79,5 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981387090 |
