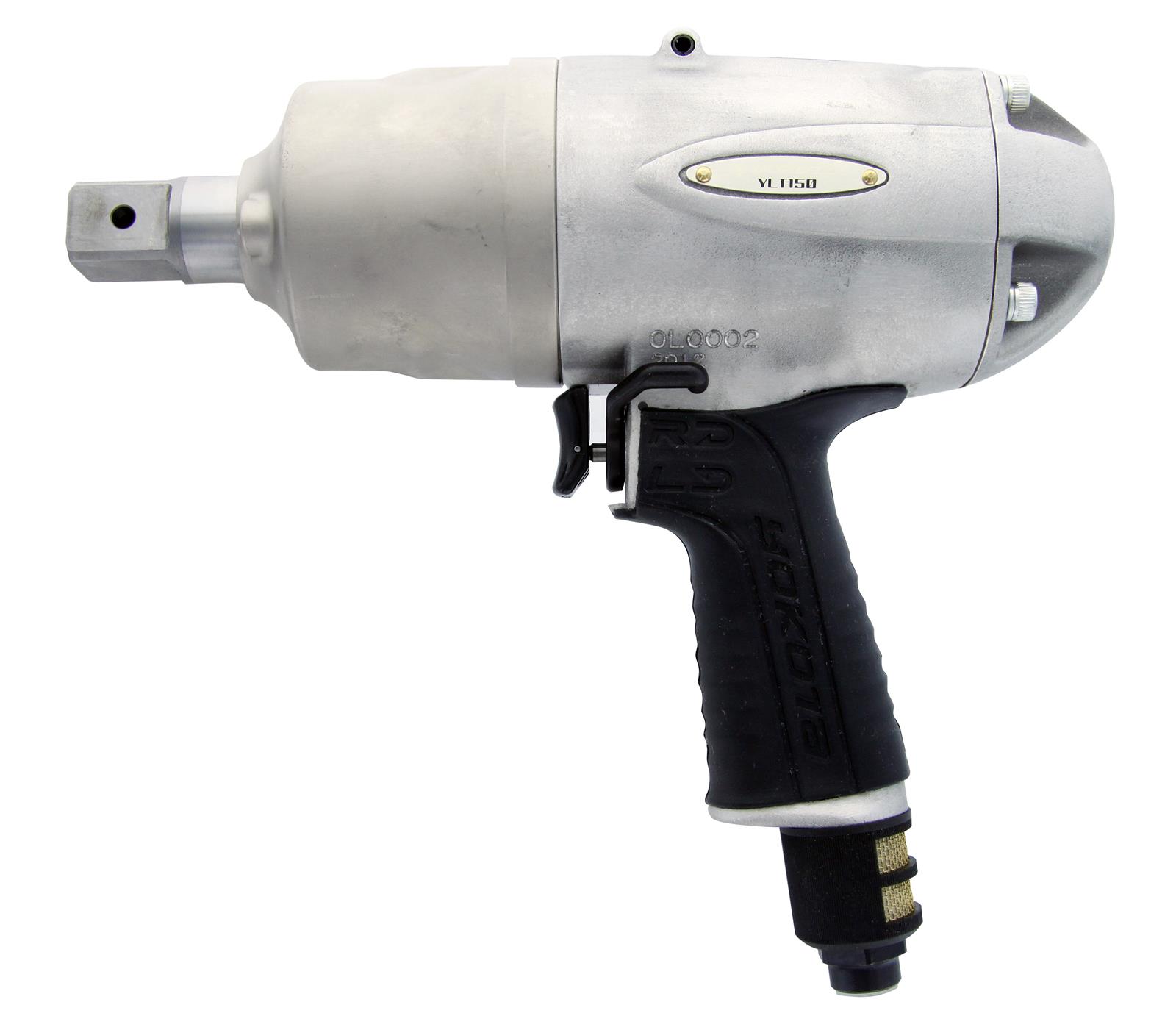

YOKOTA impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor and auto shut-off. No-lube airmotor.
Related products
AC30A-F03E-B
Modular FRL Unit
TW-5C
Spring balancer 2,5-5,0 kg
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 16 |
| RPM | 4400 |
| Torque (Nm) | 140 - 210 |
| Airconsumption (l/s) | 11,8 |
| Weight (kg) | 2,95 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

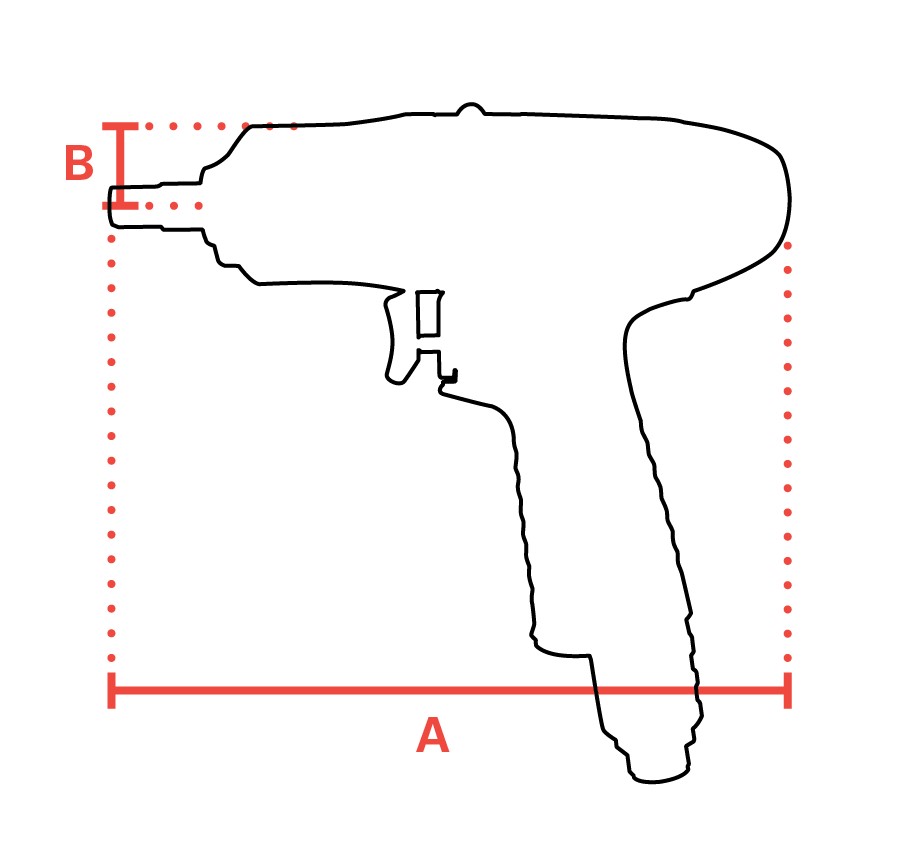

| mm A | 237 |
| mm B | 38,5 |
| Hosediameter (mm) | 9,5 |
| Square Drive / Hexagon | 3/4" |
| Safety standard | EN ISO 11148-6 |
| Air consumption no load (l/s) | 17 |
| Formal Capacity | 140 - 210 |
| Formal Serie From | 0P0001 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 4,9 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 85,8 |
| Sound power (dB(A)) | 96,8 |
| Sound uncertainty (dB(A)) | 3 |
| Product Group | Impulse Wrenches |
| Sales Group | 002 |
| UNSPSC number | 27131501 |
| Eclass number | 21061206 |
| EAN | 8717981356553 |
Manuals
| YLTX150-EN.pdf | Download |
| YLTX150-DE.pdf | Download |
| YLTX150-FR.pdf | Download |
| YLTX150-NL.pdf | Download |
| YLTX150 - QR Card.pdf | Download |
