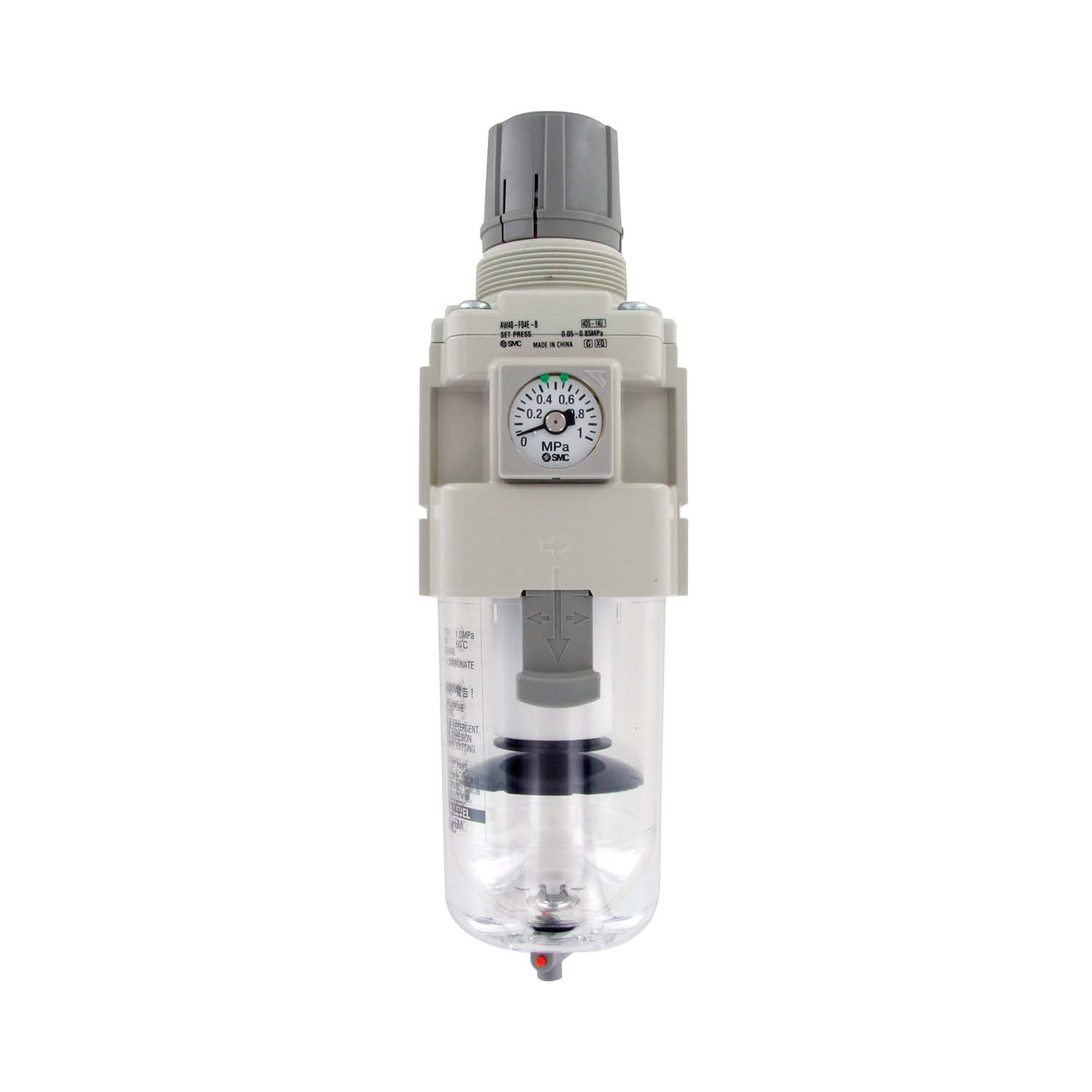

Filtration grade: 5µm
Port Size: 1/4" G
Pressure gauge: Square embedded type pressure gauge (with limit indicator)
Bowl: Polycarbonate
Drain port: With drain cock
Exhaust mechanism: Relieving type
Standard set pressure: 0,05 - 0,85MPa
Related products
AR23P-260S
Set Nut
AR23P-270AS
Bracket assembly
Specifications
| Brand | SMC |
| Connection pressure gauge | 1/8" |
| Bowl | Polycarbonate |
| Filter (micron) | 5 |
| Airconnection | 1/4" |
| Airpress max. (MPa) | 1 |
| Mountingbrackets | AW23P-270AS |
| Mountingnuts | AR23P-260S |
| (Nl/min) | 500 |
| Workingpressure (MPa) | 0,05 - 0,85 |
| EAN | 8717981338177 |
