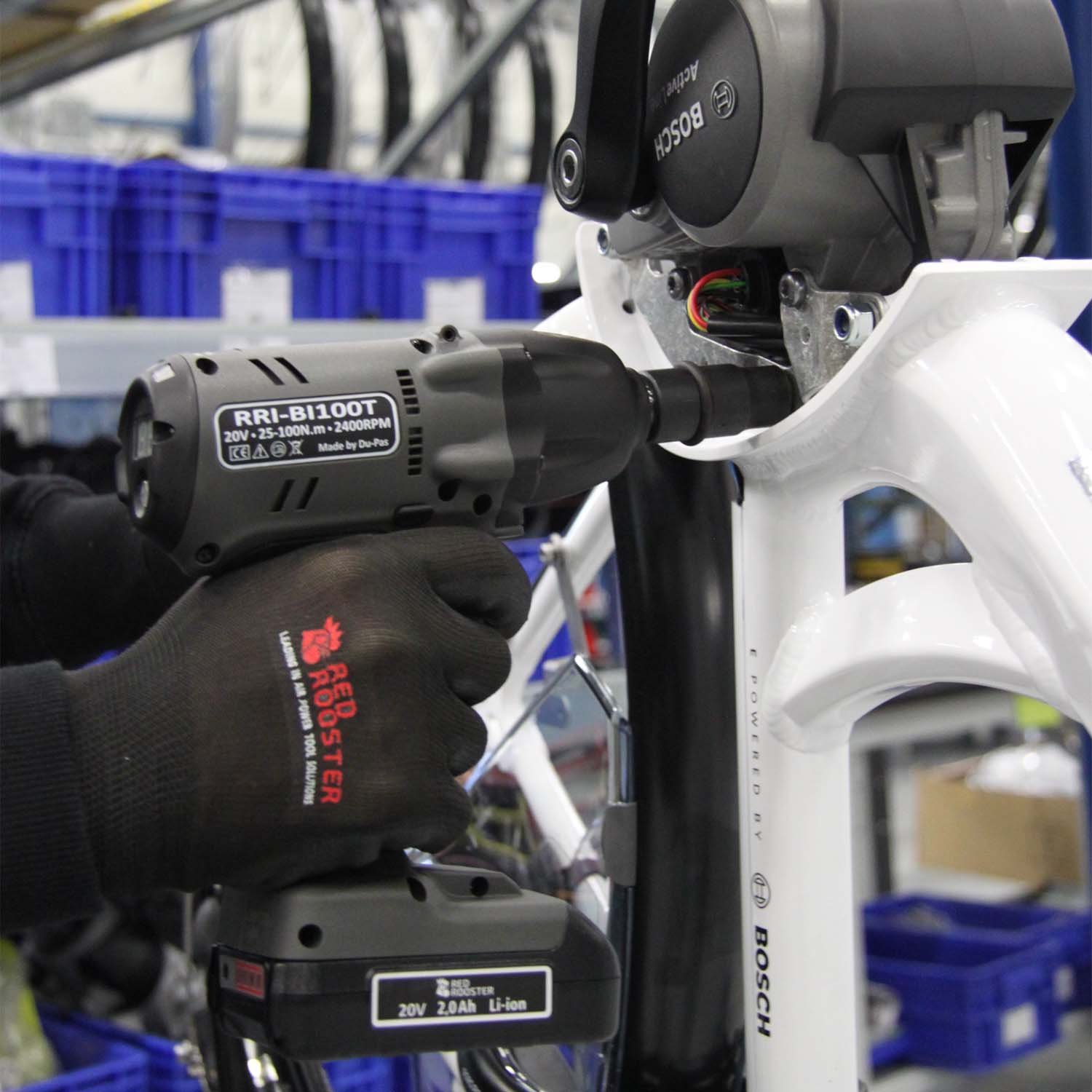

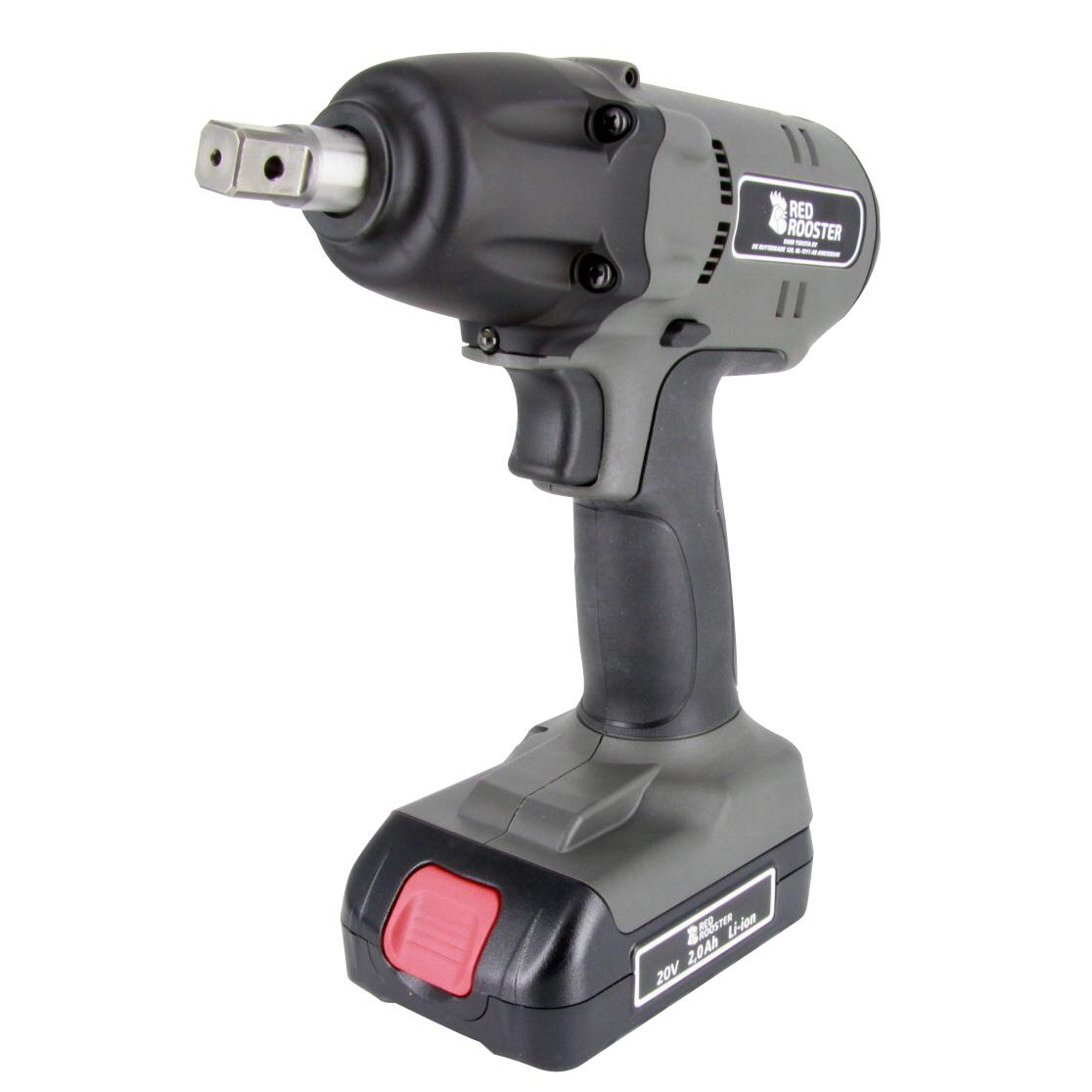

RED ROOSTER Cordless Impact Wrench with electronically adjustable shut-off. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility, such as interiors of cars, coaches and trains.
Characteristics:
• Brushless motor
• 18 Volt Lithium-Ion battery
• Dynapact impact mechanism
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque (50 steps)
• two step trigger
• Speed 1500 - 2000 - 2400 RPM
• Compact and light weight
Battery and charger to be ordered separately
Related products
B74SC180B
Programmer
Related accessories
31084-200E
20V Charger
61022-TH005
Tool Holder
13-08-09-054
Hanger
61022-TH003
Tool Holder, diameter 58mm
BB200E-320
18V 2.0Ah Battery, Li-ion
BB200E-340
18V 4.0Ah Battery, Li-ion
33116-IWCP-01
Protection Cover
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Square Drive | 1/2" |
| Bolt capacity (mm) | 8 - 10 |
| RPM | 1500 - 2000 - 2400 |
| Torque (Nm) | 25 - 100 |
| Weight w/o battery (kg) | 1,1 |

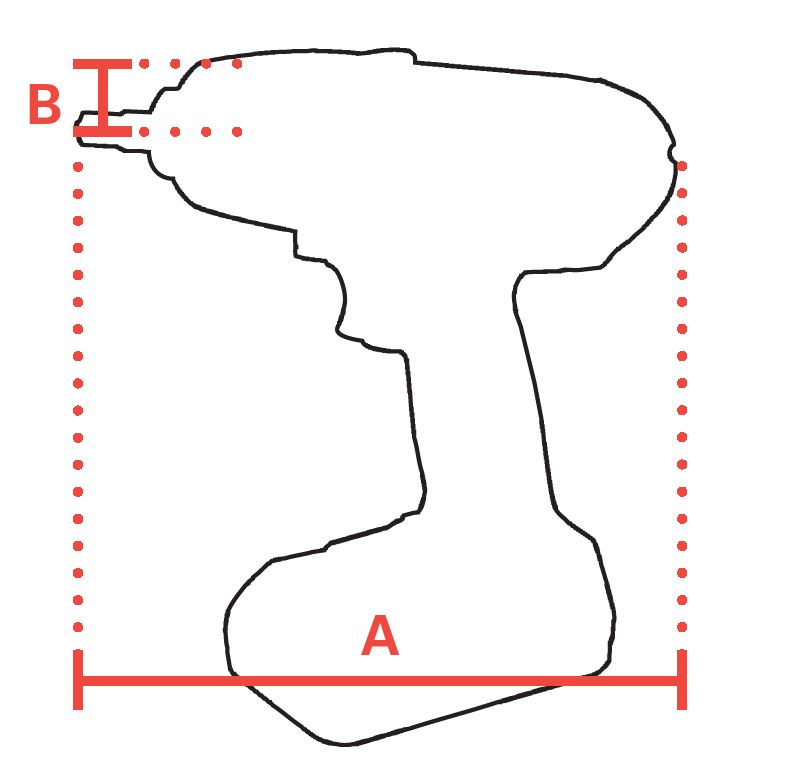

| mm A | 195 |
| mm B | 29 |
| Battery voltage (Volt) | 18 |
| Battery type Li-ion….(Ah) | 2,0 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 16,4 |
| Vibration uncertainty (m/s²) | 1,59 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 66,2 |
| Sound power (dB(A)) | 77,2 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981370436 |
Manuals
| RRI-BI100T-DA.pdf | Download |
| RRI-BI100T-DE.pdf | Download |
| RRI-BI100T-EL.pdf | Download |
| RRI-BI100T-FI.pdf | Download |
| RRI-BI100T-EN.pdf | Download |
| RRI-BI100T-PL.pdf | Download |
| RRI-BI100T-FR.pdf | Download |
| RRI-BI100T-IT.pdf | Download |
| RRI-BI100T-PT.pdf | Download |
| RRI-BI100T-SK.pdf | Download |
| RRI-BI100T-NL.pdf | Download |
| RRI-BI100T-ES.pdf | Download |
| RRI-BI100T-SV.pdf | Download |
| RRI-BI100T - QR Card.pdf | Download |
