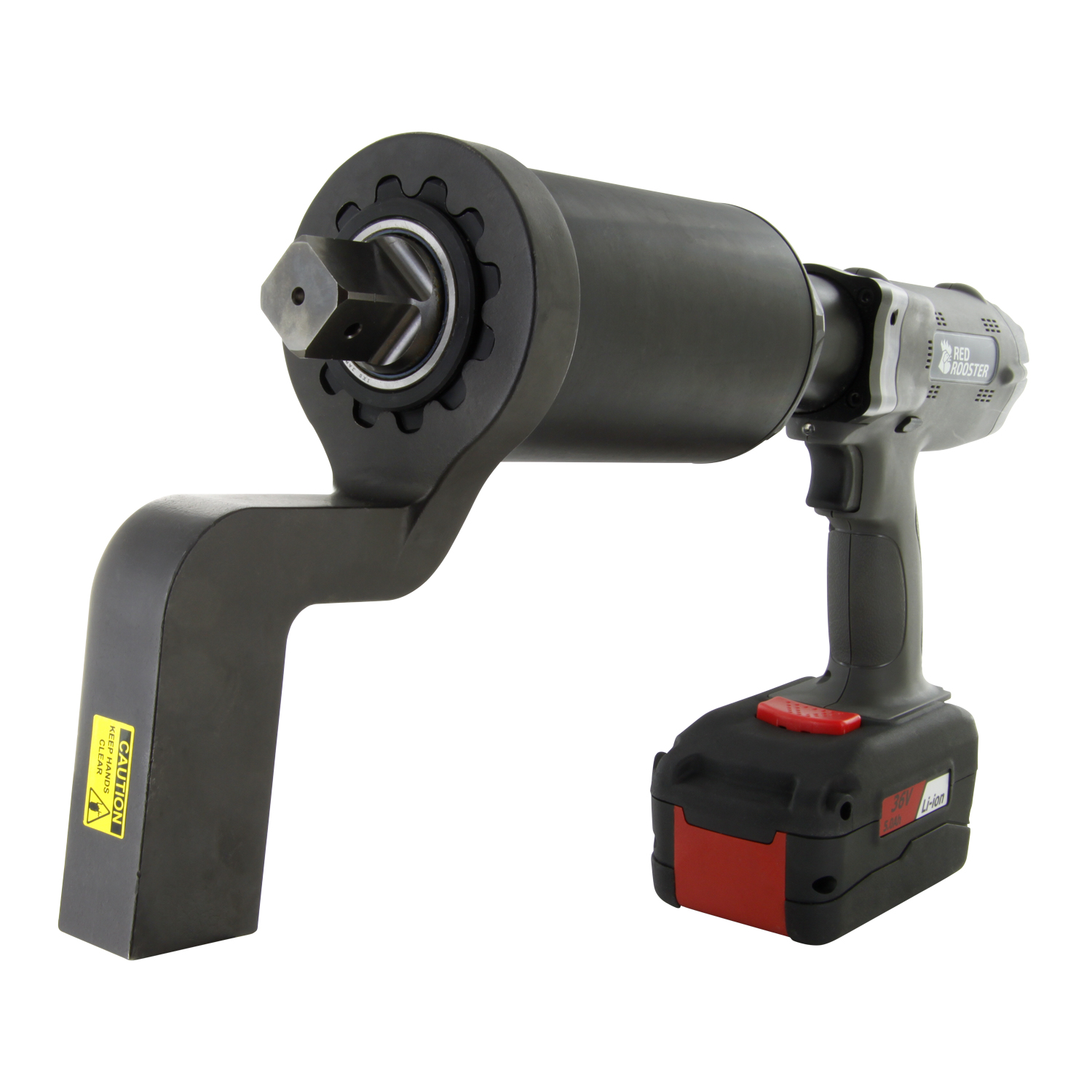

RED ROOSTER Cordless high torque geared wrench. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility. Contactless trigger and forward / reverse switch for a long lifetime. Version with two-hand safety control. This gear wrench has an extremely high speed. And reaches CMk > 2,5 at +/- 7% accuracy.
Characteristics:
• Brushless motor

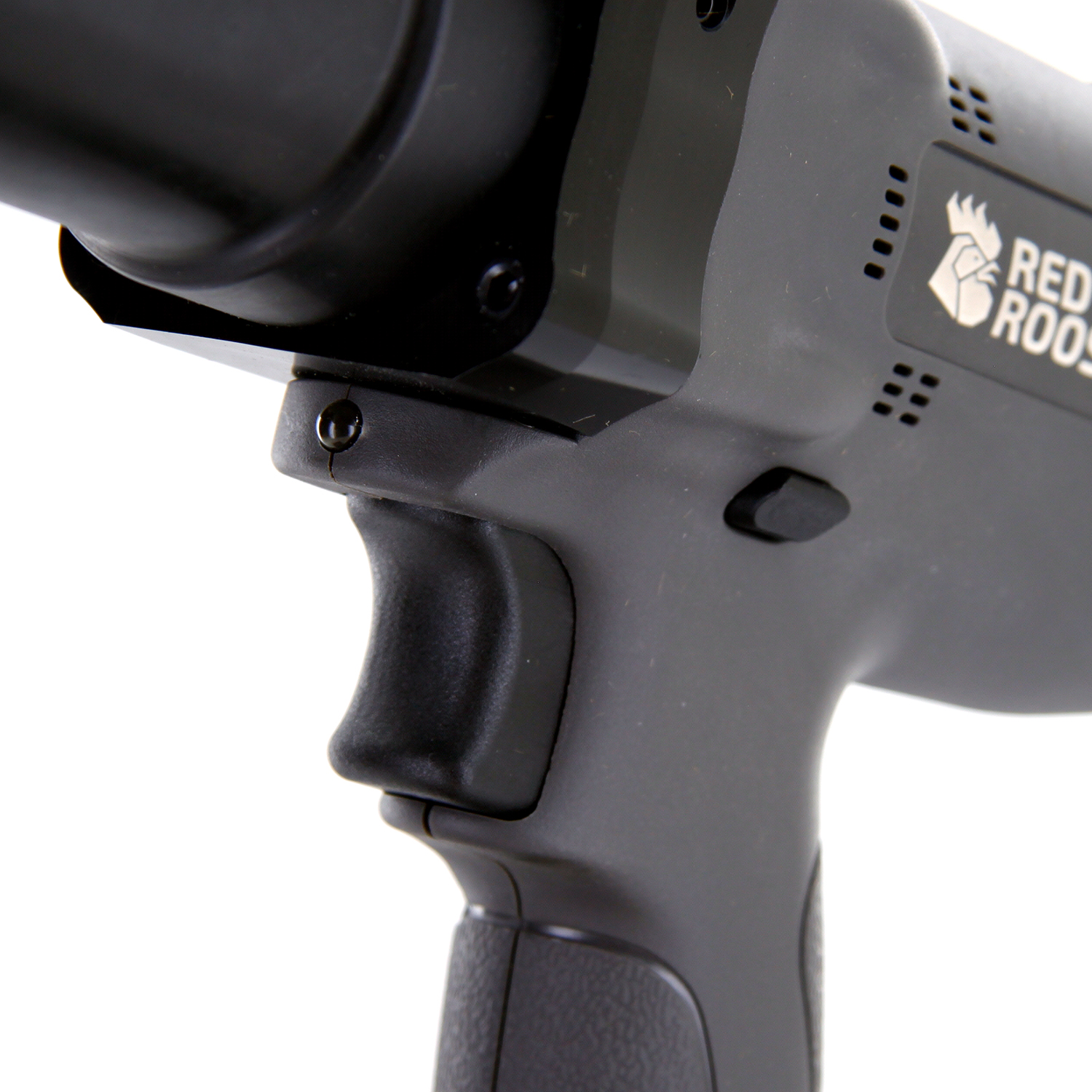

• 36 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque in 50 steps

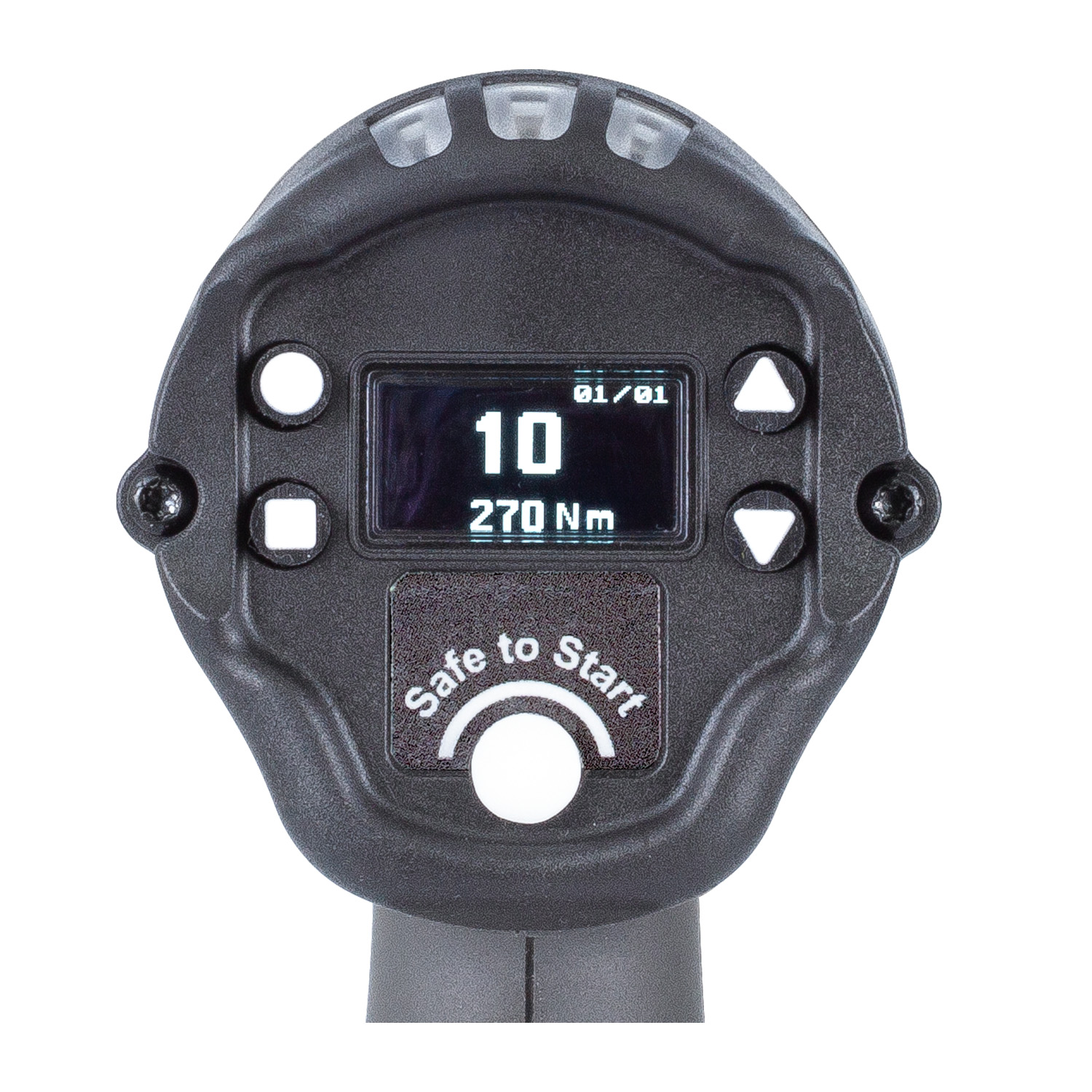

• Display shows torque and setting
• automatic reaction arm release
• Tightening data retrievable via USB interface
Standard reaction arm is included. Batteries, charger and other accessories must be ordered separately.
Related accessories
SW40-283-0102
Hanger
31084-360F
36V Charger
DO6055S036
High Torque Socket 1" x 36mm
33257-RRI-BEC400
Reaction Bar
31022-GW025
Reaction Welding ring for RRI-BEC400(S)
Koffer RRI-BEC400
Case RRI-BEC400
DO18715S
Ret Ring
DO6055S065
High Torque Socket 1"x 65mm
BB360F-350
36V 5.0Ah Li-ion Battery
Specifications
| Brand | Red Rooster Industrial |
| Square Drive | 1" |
| Bolt capacity (mm) | 27 ~ 45 |
| RPM | 25 / 4,2 |
| Torque (Nm) | 800 ~ 4000 |
| Weight w/o battery (kg) | 8,2 |
| Sound level (dB(A)) | < 80 |

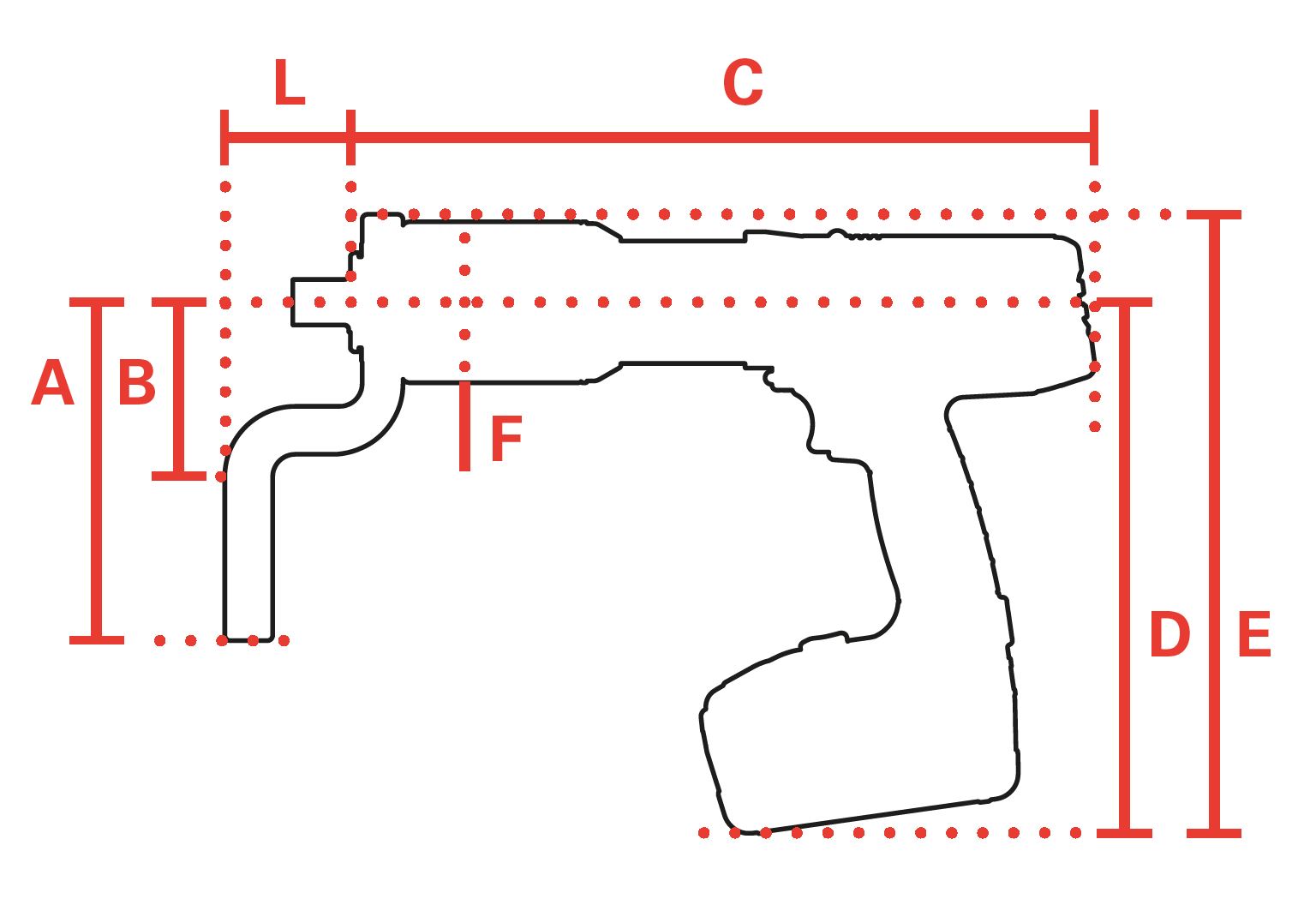

| mm A | 177 |
| mm B | 87 |
| mm C | 380 |
| mm D | 228 |
| mm E | 260 |
| mm F | Ø 90 |
| mm L | 90 |
| Battery voltage (Volt) | 36 |
| Battery type Li-ion….(Ah) | 5,0 |
| EAN | 8717981459070 |
Manuals
| RRI-BEC400S-FI.pdf | Download |
| RRI-BEC400S-SV.pdf | Download |
| RRI-BEC400S-EN.pdf | Download |
| RRI-BEC400S-FR.pdf | Download |
| RRI-BEC400S-PL.pdf | Download |
| RRI-BEC400S-DE.pdf | Download |
| RRI-BEC400S-DA.pdf | Download |
| RRI-BEC400S-ES.pdf | Download |
| RRI-BEC400S-PT.pdf | Download |
| RRI-BEC400S-EL.pdf | Download |
| RRI-BEC400S-NL.pdf | Download |
| RRI-BEC400S-SK.pdf | Download |
| RRI-BEC400S-IT.pdf | Download |
| RRI-BEC400S - QR Card.pdf | Download |
