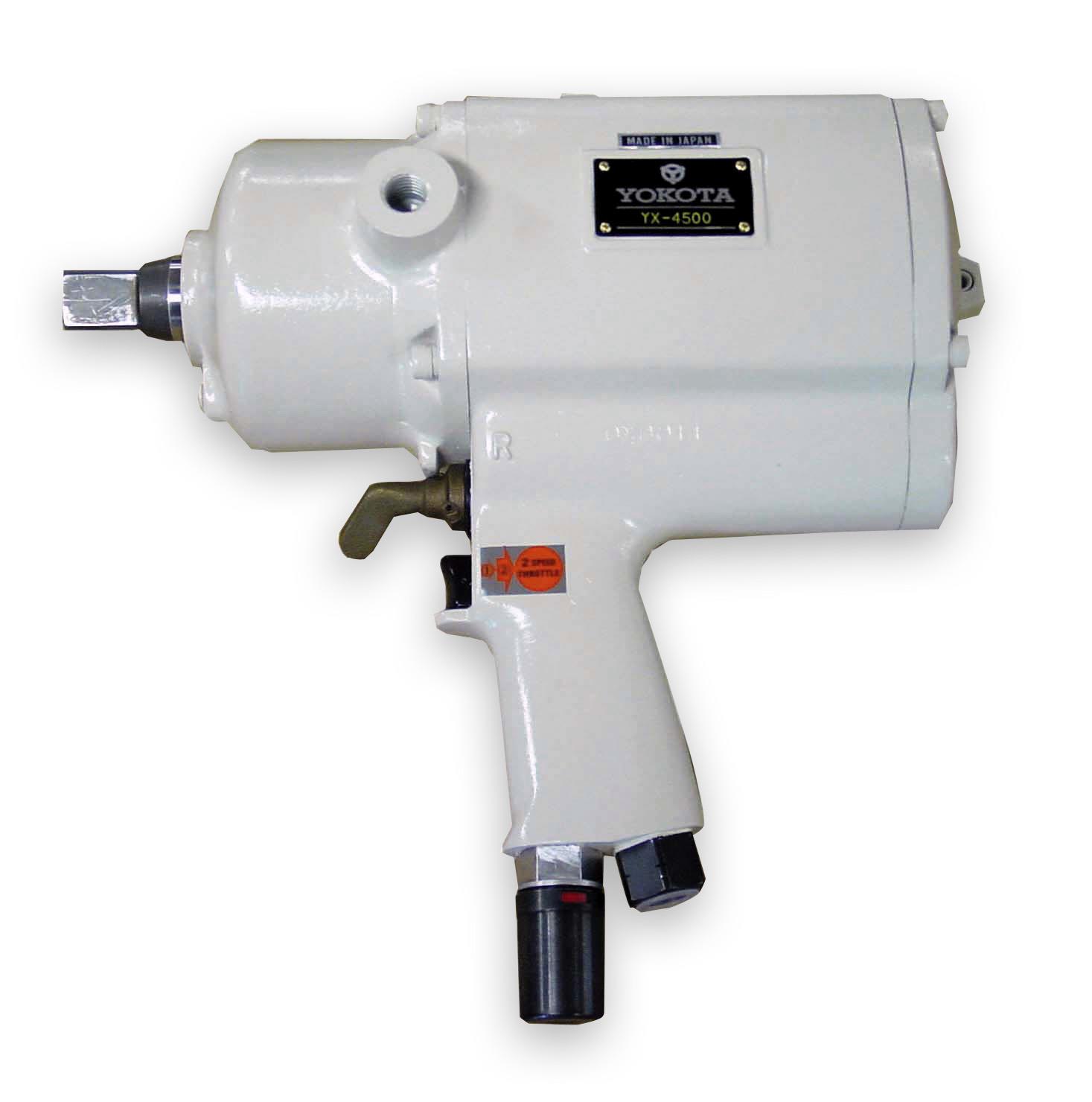

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model.



Related accessories

ATLUB

Air Tool Oil, 1 litre



Specifications

Brand Yokota
Bolt capacity (mm) 18 - 20
RPM 3400
Torque (Nm) 392 - 490
Weight (kg) 9,80
Airconnection PT 3/8"
Airpress max. (MPa) 0,63
Airconsumption fullload (l/s) 11,6

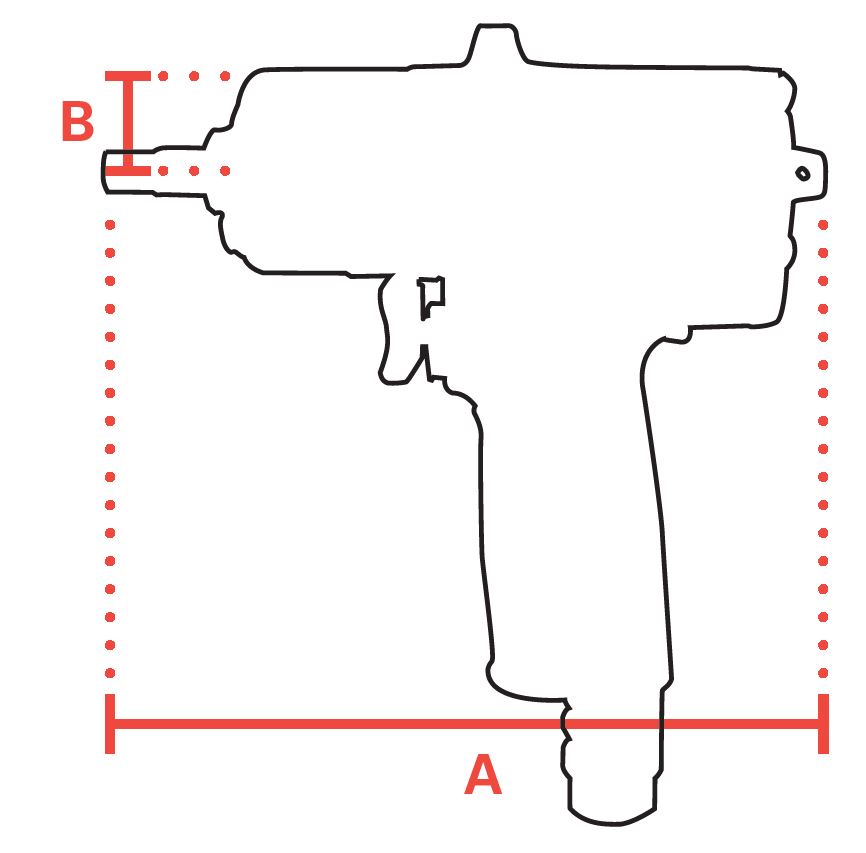

mm A 300
mm B 65
Hosediameter (mm) 12,7
Square Drive / Hexagon 3/4"
Safety standard EN ISO 11148-6
Air consumption no load (l/s) 24
Vibration standard EN ISO 28927-2
Vibration value (m/s²) < 2,5
Vibration uncertainty (m/s²) 1
Sound standard ISO 15744
Sound pressure (dB(A)) 87
Sound power (dB(A)) 98
Sound uncertainty (dB(A)) 3
EAN 8717981009022



Manuals

YX-4500-PT.pdf Download
YX-4500-DA.pdf Download
YX-4500-ES.pdf Download
YX-4500-SV.pdf Download
YX-4500-EL.pdf Download
YX-4500-PL.pdf Download
YX-4500-NO.pdf Download
YX-4500-EN.pdf Download
YX-4500-SK.pdf Download
YX-4500-FI.pdf Download
YX-4500-NL.pdf Download
YX-4500-DE.pdf Download
YX-4500-IT.pdf Download
YX-4500-FR.pdf Download
YX-4500 - QR Card.pdf Download
