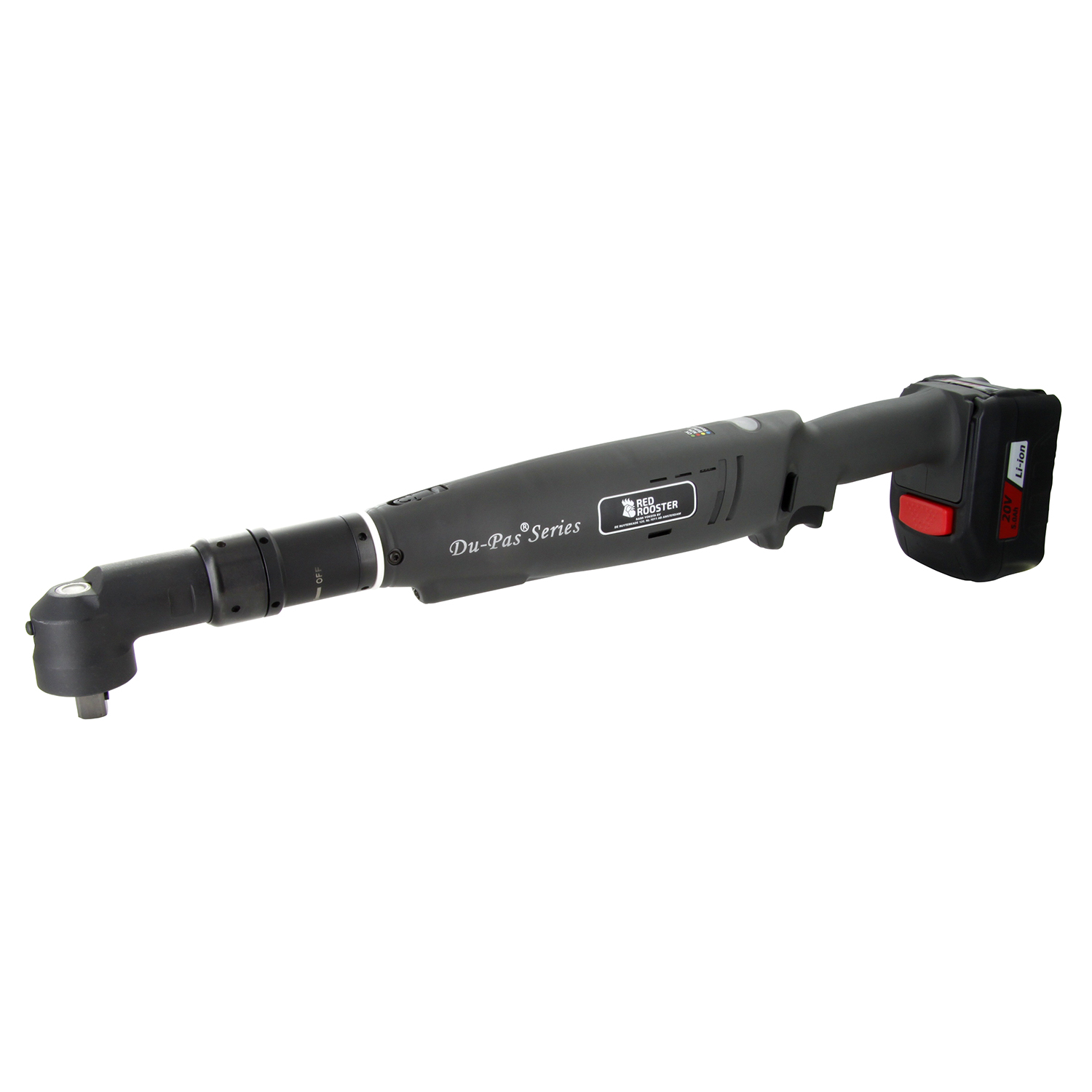

RED ROOSTER cordless angle wrench with automatic shut-off. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility, such as interiors of cars, coaches and trains.
Characteristics:
• Brushless motor
• Lithium-Ion battery, choice for 2,5 Ah or 5,0 Ah capacity
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque
• Speed 160 RPM
• Compact and light weight
Battery and charger to be ordered separately. The reaction bar 31022-WR00 is included in the delivery.
Related products
BB200D-325
18V 2.5Ah Battery, Li-ion
B74SC180B
Programmer
BB200D-350
18V 5.0Ah Battery, Li-ion
B84192B
18-20V Charger
E86B-VD
Power Cord (EU)
Related accessories
33116-B200D-01
Protection Cover
61022-TH005
Tool Holder
33116-B200D-02
Protection Cover
31022-WR00
Reaction Bar for RRI-BA70/90
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Square Drive | 1/2" |
| Bolt capacity (mm) | 8 - 12 |
| RPM | 160 |
| Torque (Nm) | 30 - 70 |
| Weight w/o battery (kg) | 2,5 |

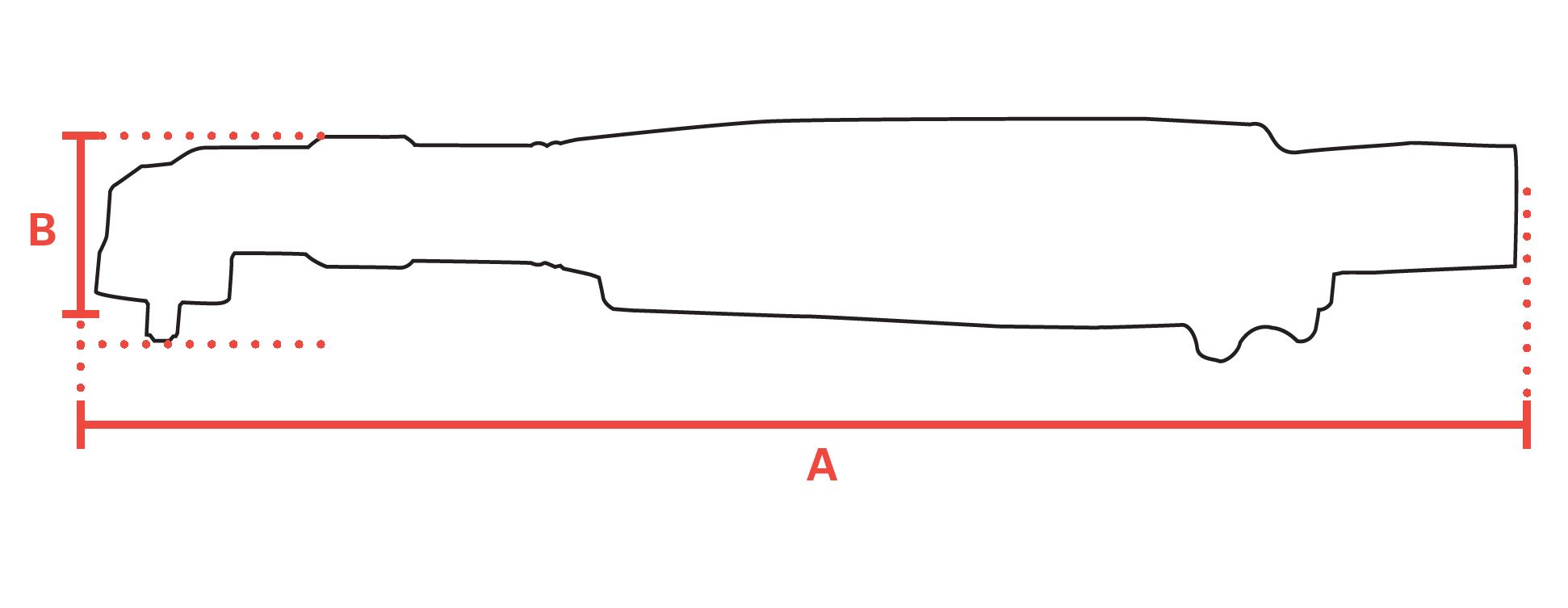

| mm A | 535 |
| mm B | 50 |
| Battery voltage (Volt) | 18 |
| Battery type Li-ion….(Ah) | 2,5 - 5,0 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 18 |
| Vibration uncertainty (m/s²) | 1,5 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 69,2 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981452132 |
Manuals
| RRI-BA70S4-NL.pdf | Download |
| RRI-BA70S4-DA.pdf | Download |
| RRI-BA70S4-PL.pdf | Download |
| RRI-BA70S4-FR.pdf | Download |
| RRI-BA70S4-EL.pdf | Download |
| RRI-BA70S4-FI.pdf | Download |
| RRI-BA70S4-SK.pdf | Download |
| RRI-BA70S4-EN.pdf | Download |
| RRI-BA70S4-PT.pdf | Download |
| RRI-BA70S4-ES.pdf | Download |
| RRI-BA70S4-IT.pdf | Download |
| RRI-BA70S4-SV.pdf | Download |
| RRI-BA70S4-DE.pdf | Download |
| RRI-BA70S4 - QR Card.pdf | Download |
