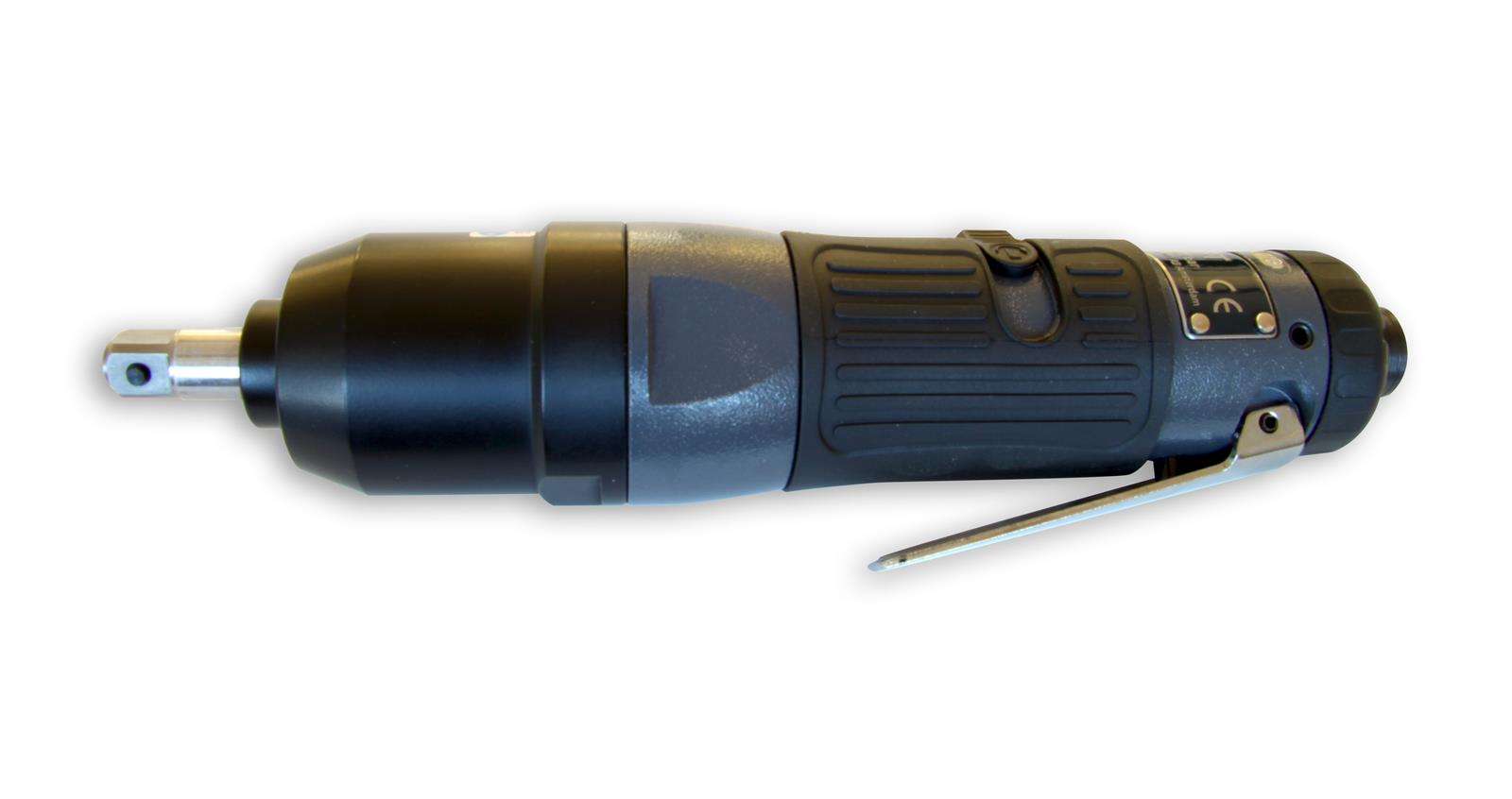

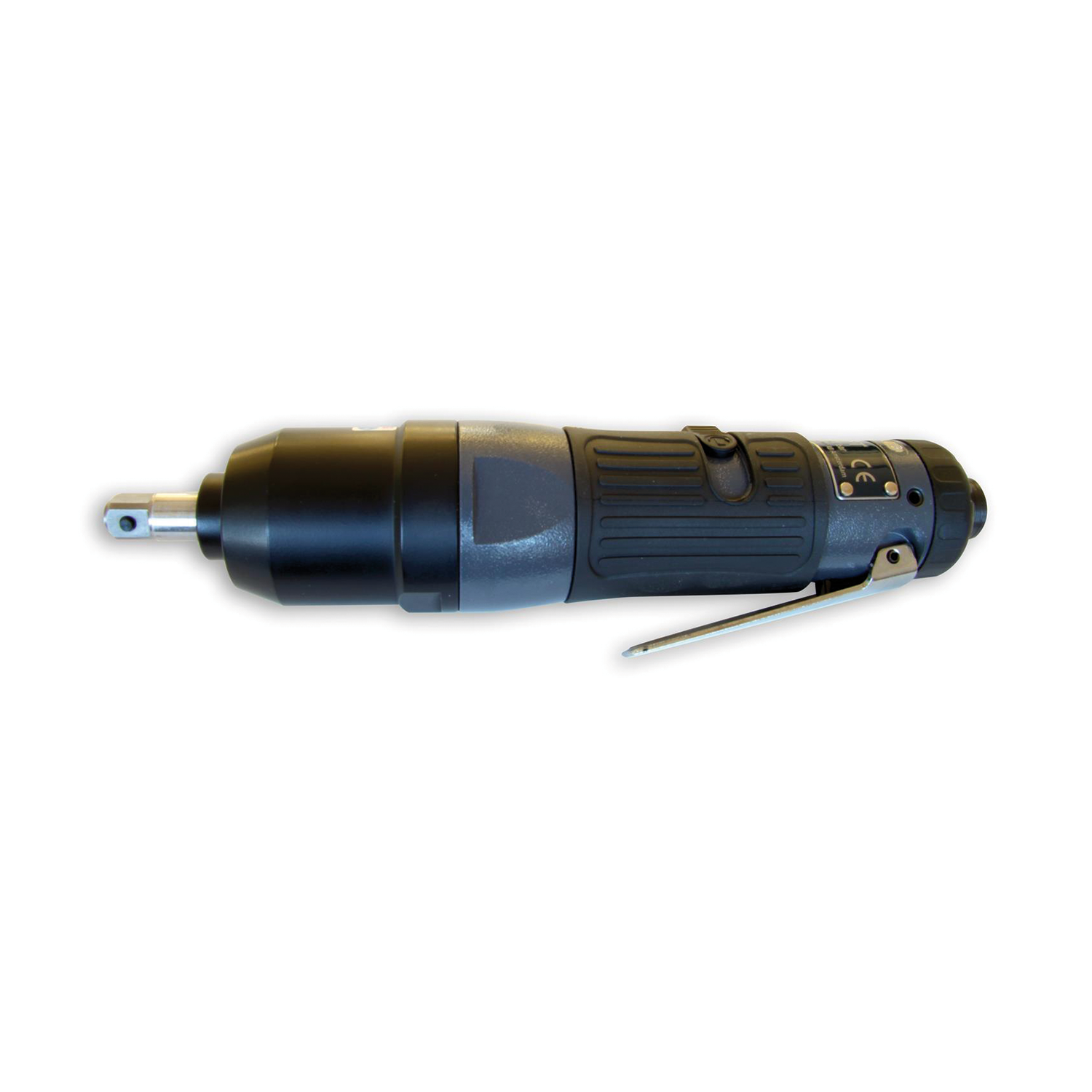

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Straight model
• Auto shut off function
Related products
AC30A-F03E-B
Modular FRL Unit
HTB-0
Spring Balancer Hosereel
Related accessories
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 6 - 8 |
| RPM | 4200 |
| Torque (Nm) | 11 - 19 |
| Airconsumption (l/s) | 3,7 |
| Weight (kg) | 0,80 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

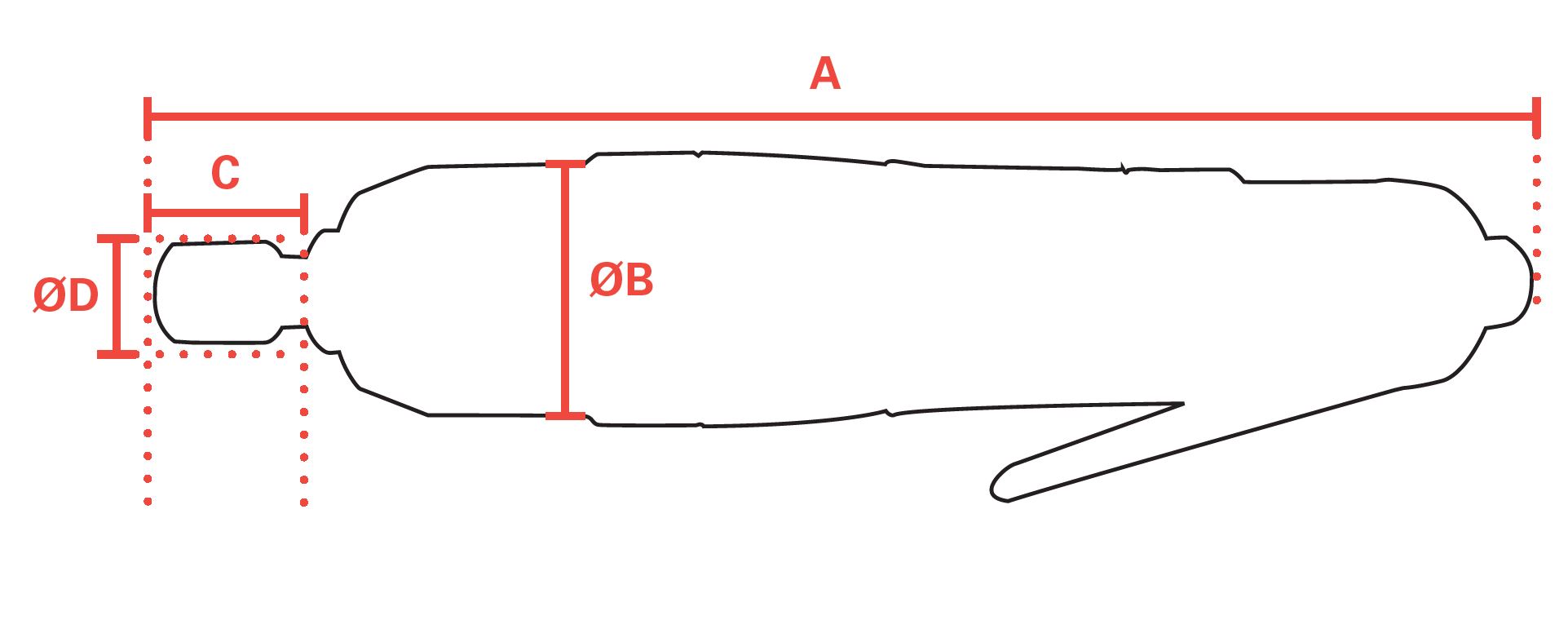

| mm A | 221 |
| mm B | 46 |
| mm C | 24 |
| mm D | 17,5 |
| Hosediameter (mm) | 6,5 |
| Square Drive / Hexagon | 3/8" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 5,3 |
| Vibration uncertainty (m/s²) | 1,02 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 74,6 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981204205 |
