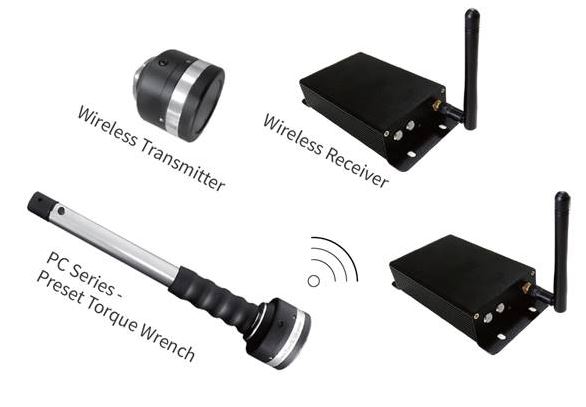

● This One-to-One wireless transmission system is specially designed for the production line to ensure all the bolts are tightened.
● After “Click” , the wireless receiver will capture a signal and meanwhile send out one to the switch, then the system is available.
● Wireless wrenches can be used at a radial distance of 20m.
● Wireless transmission frequency is 2.4GHz.
● The power of receiver is 12V DC, transformed by dedicated adapter.
● When “Click”, the four green LEDs around the transmitter will on, as well as the green LED on the receiver.
● The transmitter is equipped with 3.7V 14500 lithium battery, which can be replaced without delay.
● The antenna of the transmitter is built-in, good looking and safe.

Related products

PC3200

Torque wrench 40 ~ 200 Nm

PCH24800

Torque wrench 160~800 Nm

PCH9180T1

Torque wrench 40~180Nm

PC51500

Torque Wrench preset with ratchet 1", 300~1500 Nm

PC41000

Torque Wrench preset 200~1000Nm

PC3340

Torque wrench 65 ~ 340 Nm

PC51000

Torque Wrench preset with ratchet 1", 200~1000 Nm

PCH14200

Torque wrench 40~200Nm

PC4800

Torque wrench, 160 ~ 800Nm

PC52000

Torque Wrench preset with ratchet 1", 400~2000 Nm

PC4650

Torque wrench, 150 ~ 650Nm

PCH14300

Torque wrench 50 ~ 300Nm



Datasheet

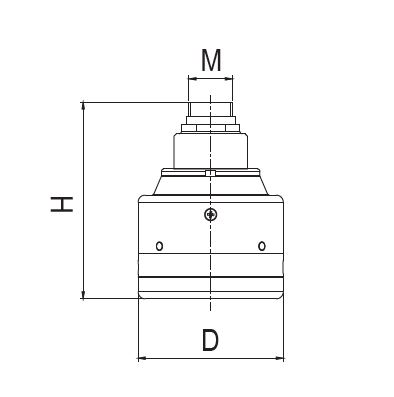

Dimensions



Specifications

Brand NovaTork
mm D 62
mm H 70,5
mm M M20x1,25
EAN 8717981442423



Manuals
