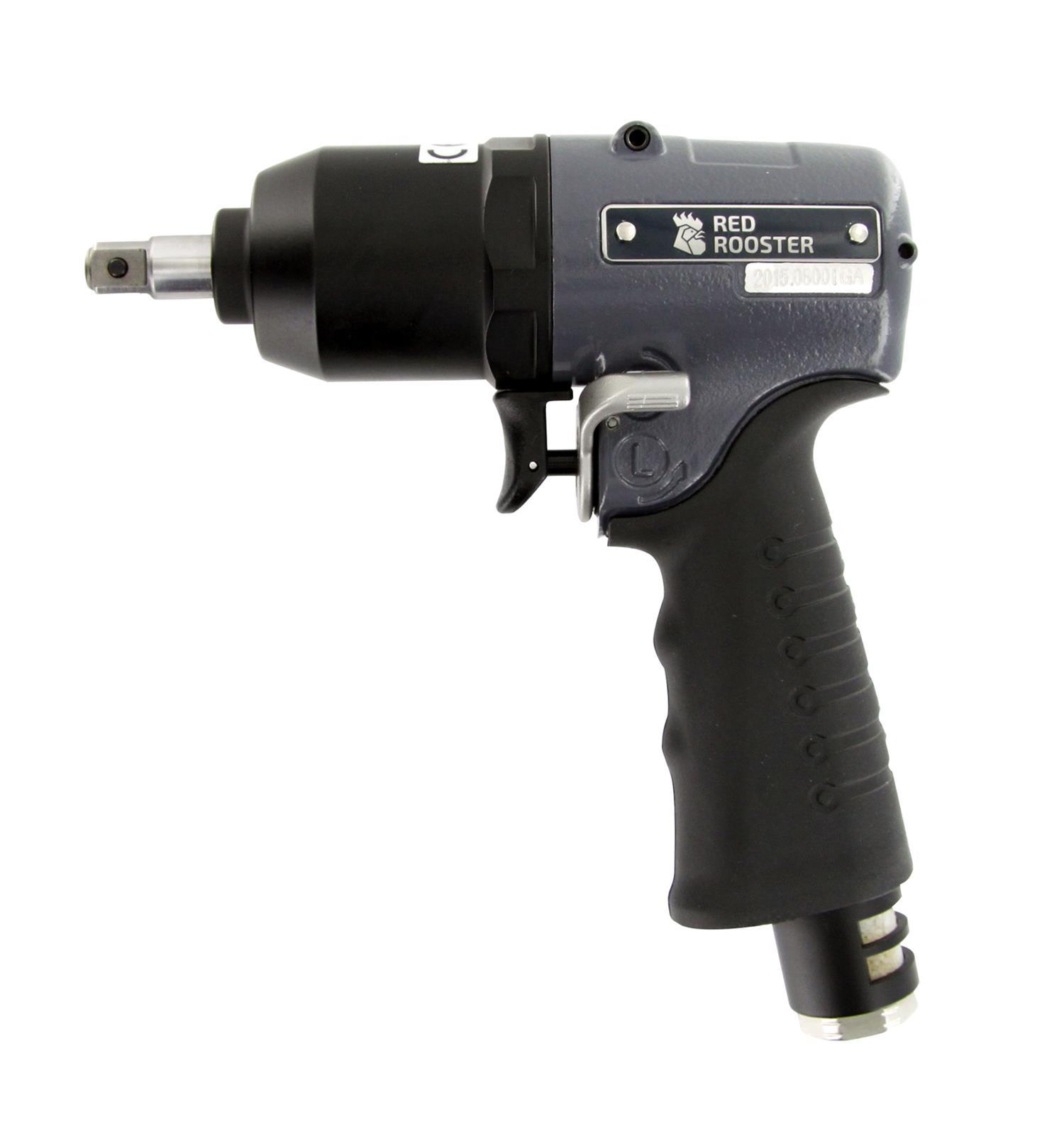

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
Related accessories
61022-TH002
Tool Holder, diameter 47mm
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 6 |
| RPM | 4.600 |
| Torque (Nm) | 7 - 12,5 |
| Weight (kg) | 0,87 |
| Airconnection | PT 1/4" |
| Airconsumption (l/min) | 3,7 |
| Airpress max. (MPa) | 0,63 |
| Hosediameter (mm) | 6,5 |
| Square Drive / Hexagon | 3/8" |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 2 |
| Vibration uncertainty (m/s²) | 0,69 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 70,5 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981326501 |
