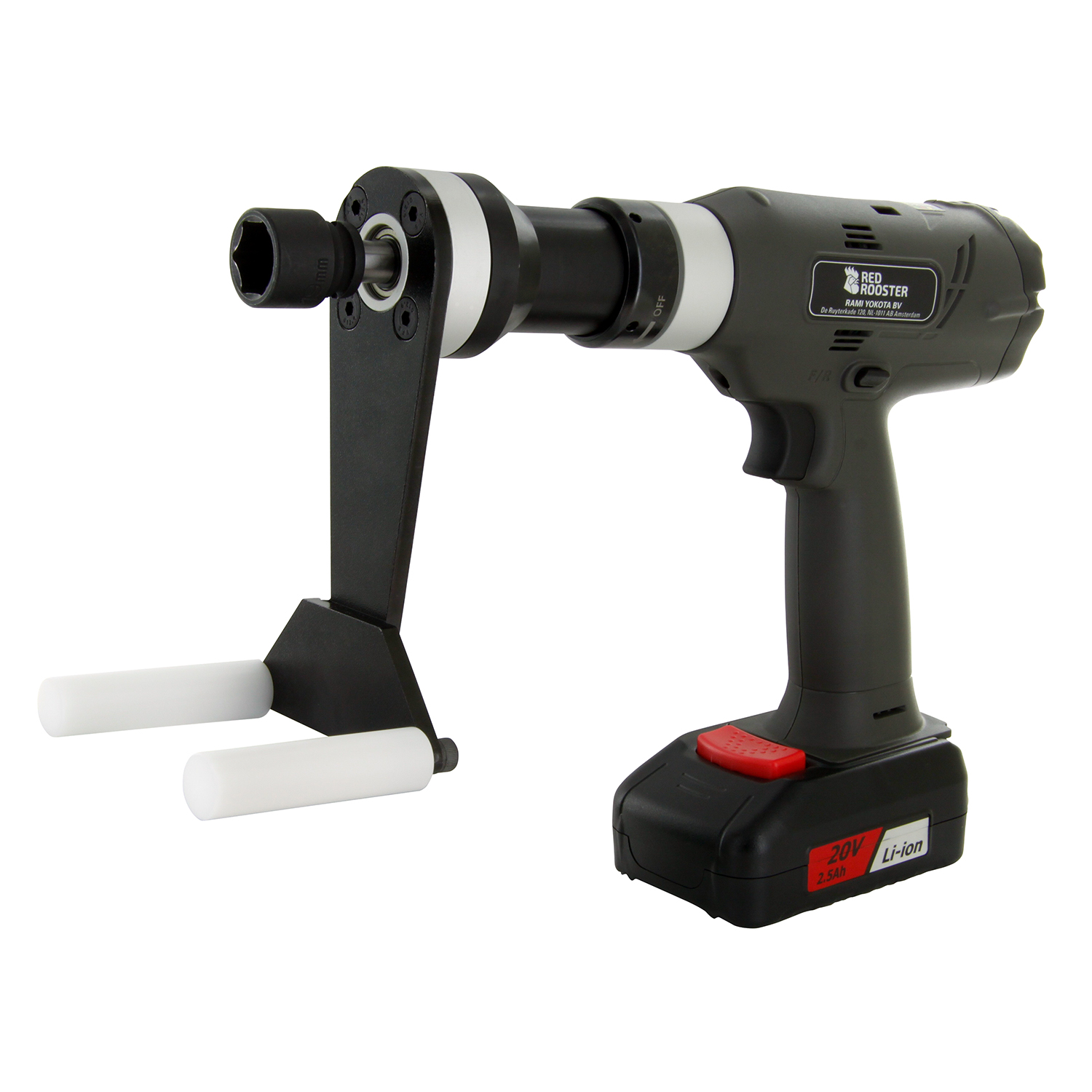

RED ROOSTER Cordless transducerized screwdriver.
Very well suited for assembly applications with a need of good torque accuracy.

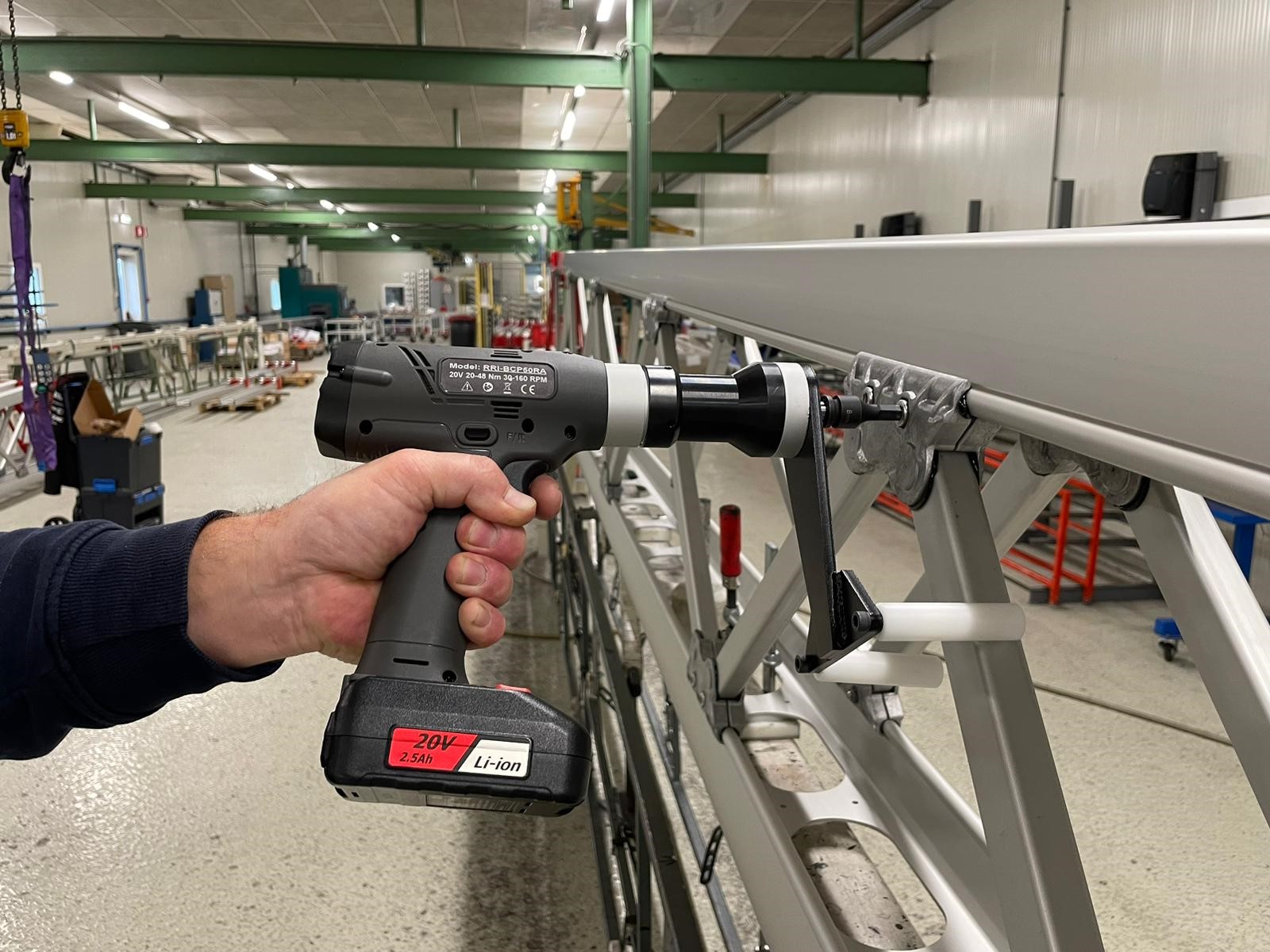

This specific tool is developed for the bicycle manufacturing industry, crank shaft application.
Contactless trigger and forward / reverse switch for a long lifetime. Repeatability Cm/Cmk > 2 at +/- 7%.
Characteristics:
• Brushless motor
• 18 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Tightening mode setting – Torque or Angle
• Programmable torque
• Programmable angle limits
• Programmable speed
• Group check / counting
• 8 programs including sequence
• Compact and light weight
• Battery (2,5 Ah: BB200D-325; 5,0 Ah: BB200D-350) and charger (B84192B) to be ordered separately
Related products
BB200D-325
18V 2.5Ah Battery, Li-ion
BB200D-350
18V 5.0Ah Battery, Li-ion
B84192B
18-20V Charger
Related accessories
D39SC180B-1
Suspension Bail
33116-B200D-01
Protection Cover
32088-NPA-01
Cable
33116-B200D-02
Protection Cover
31022-NP006
Special adaptor for the RRI-BCP50RA
Specifications
| Brand | Red Rooster Industrial |
| Square Drive | 3/8" |
| Bolt capacity (mm) | 10 |
| RPM | 30 ~ 160 |
| Torque (Nm) | 20 ~ 48 |
| Weight w/o battery (kg) | 2,26 |
| Battery voltage (Volt) | 18 |
| Battery type Li-ion….(Ah) | 2,5 / 5,0 |
| Safety standard | EN ISO 11148-6 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | < 75 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981438846 |
