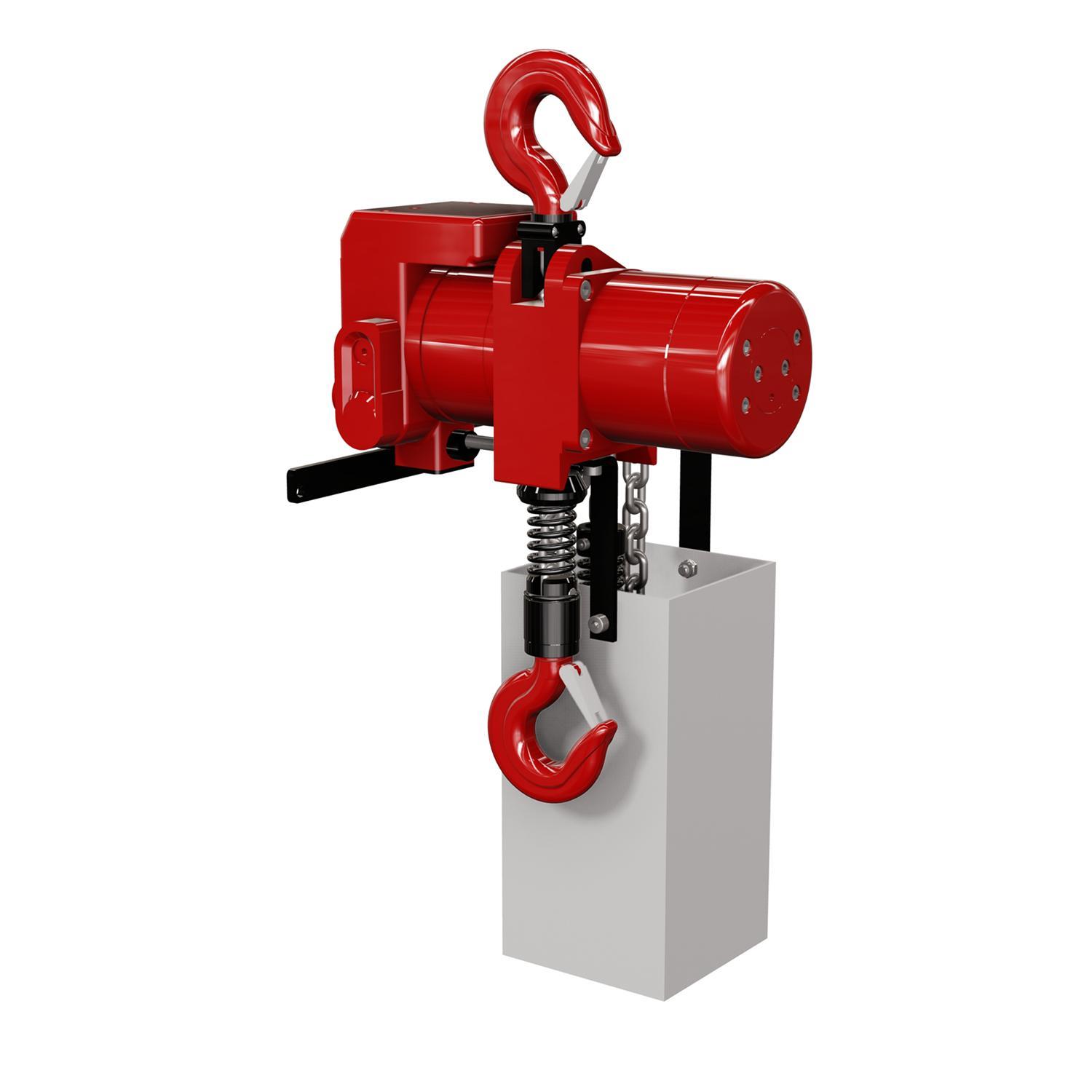

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use.
Robust cast steel body. Valveblock same for all models, less spare parts. Standard with load limiter.
Characteristics:
o Precise variable speed control
o Optimum control of the load, very precise positioning
o Compact design
o Endstop system
o Load limiter built-in without loss of headroom
o Cord control
o Quiet, low noise level, silenced
o Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar)

The price includes three meter of lift and two meter of control length, excluding the chain bucket.





Specifications

Brand Red Rooster
Number of chain falls 1
Lowering speed full load (m/min) 10,3
Lowering speed 0-load (m/min) 6,5
Weight incl. 3m lift (kg) 34
Lifting speed full load (m/min) 6
Lifting speed 0-load (m/min) 11,3
Chain weight (kg/m) 1,1
Chain (mm) 7,1 x 21
Chainbag/Chainbucket +
Loadlimiter +
Airconnection 1/2" BSPT
Airpress max. (MPa) 0,63
Airconsumption fullload (l/s) 25
mm A 485
mm B 212
mm C 139
mm D 73
mm E 156
mm F 186
mm G 29
mm H 40
mm I 29
mm J 25
mm X 100
mm Z 250
Hosediameter (mm) 13
SMC Airtreatment unit AC40-F04DM-8-B
Capacity (kg) 1000
EAN 8717981391776
