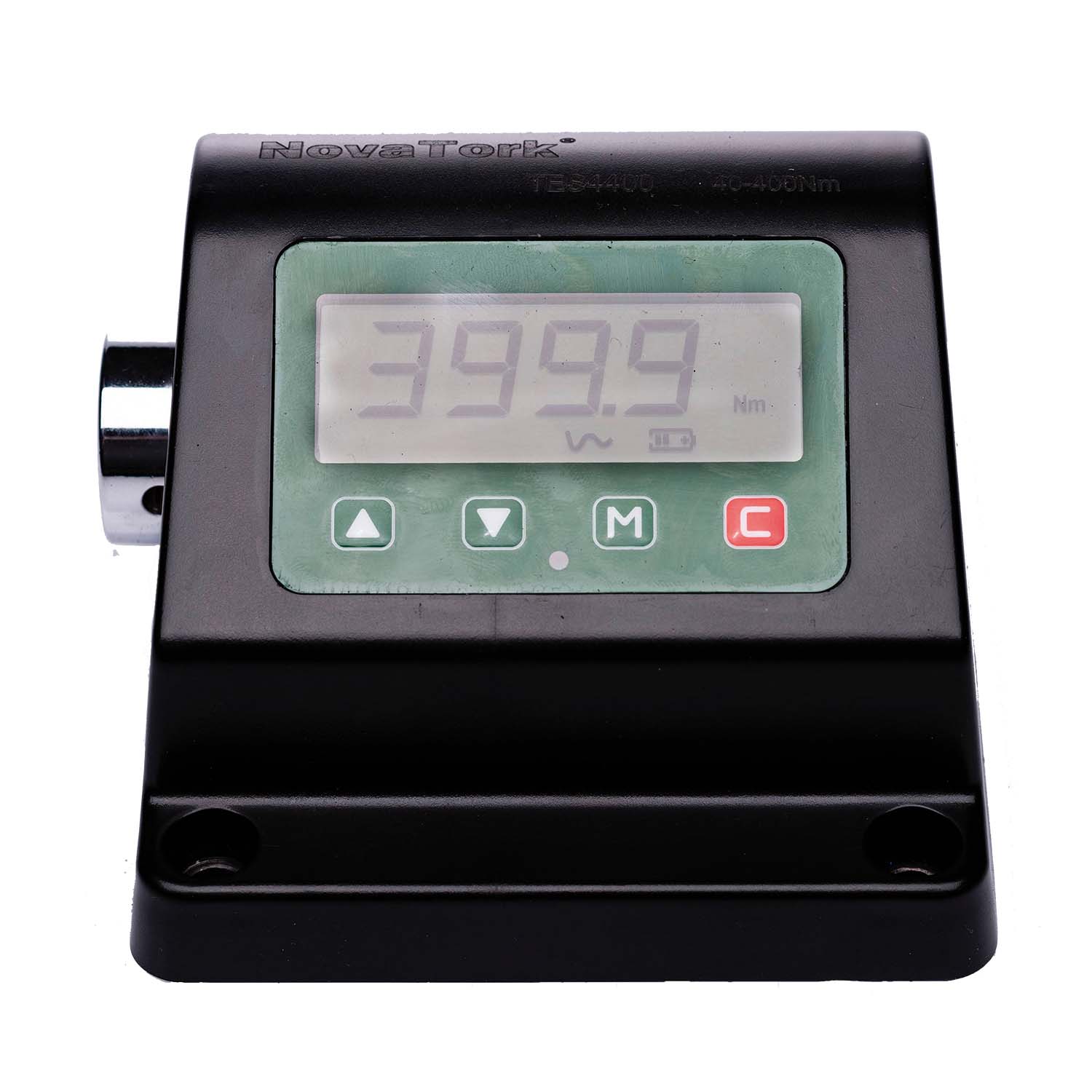

Designed for calibration or inspection of torque wrenches at the production site.

• Accuracy: ±1% from 10% to 100% of capacity.
• 4 Units: Nm, Kgcm, Lbft, Lbin.
• Three test mode: First Peak, Peak and Track.
• Peak value hold function for First Peak and Peak mode.
• Three-color light and buzzer will alarm when the torque reaches the set value.
• Torque error percentage display function, saves the operator from tedious calculations.
• Backlight optional, good for low light conditions.
• Memory function: Store 1500 sets of data as required, each set include time, unit, and value.
• Battery capacity display.
• Micro-USB port for charging and uploading data to computer.
• Built-in rechargeable lithium battery, easy to charge by connecting the power adapter.
• Four bolts are designed at the bottom for fixing the tester on a workbench or other floor.
• Automatic shutdown after 10 minutes of non-use.




Related accessories

ZJ2-10

Calibration adapter - 3/8", 9+10 mm hex

ZJ2-13

Calibration adapter - 3/8", 12+13 mm hex

ZJ2-16

Calibration adapter - 3/8", 14+16 mm hex

ZJ2-18

Calibration adapter - 3/8", 17+18 mm hex

ZJ2-8

Calibration adapter - 3/8", 7+8 mm hex



Specifications

Brand NovaTork
Square Drive 3/8"
Torque (Nm) 4,0 ~ 40
Weight (kg) 2,6

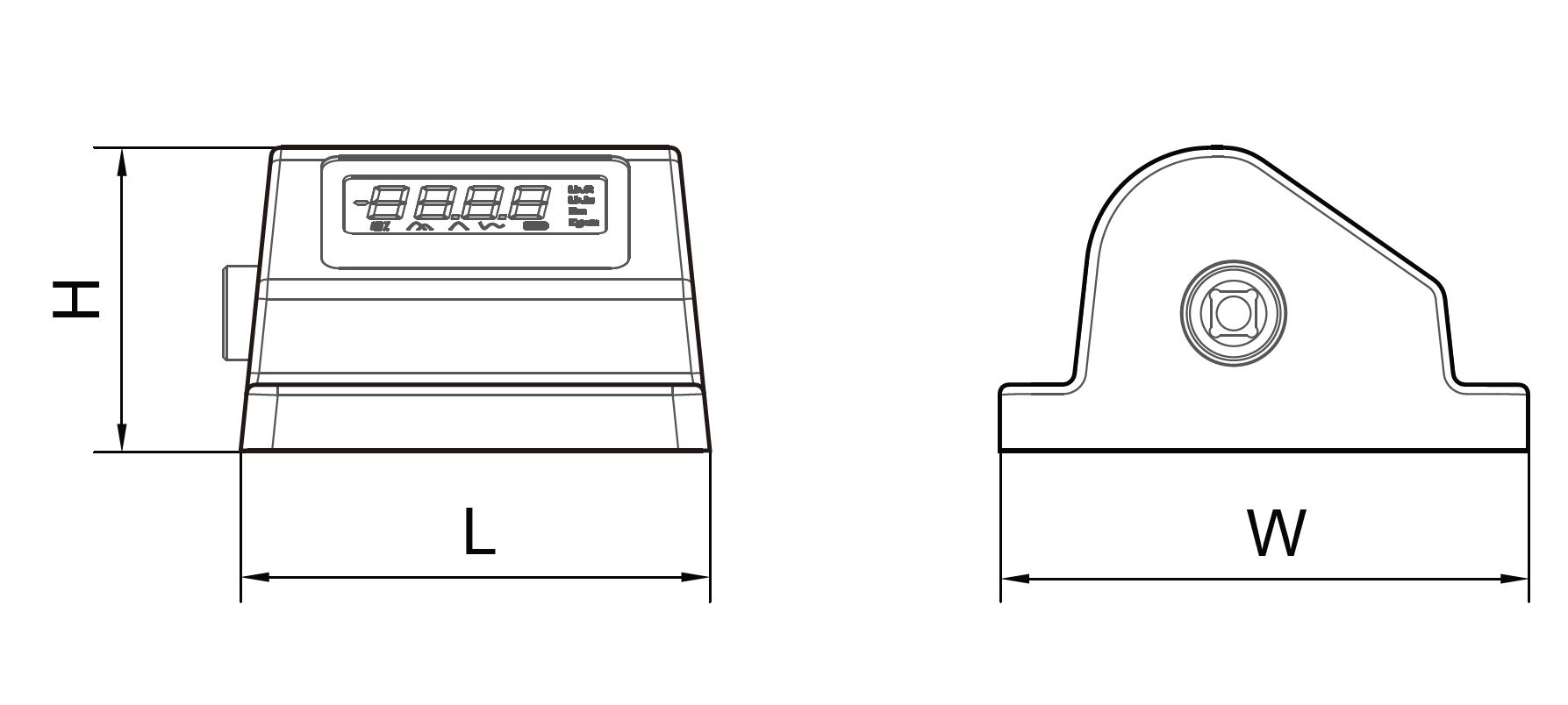

mm H 85
mm W 136
L mm 135
EAN 8717981426942



Manuals

TES240-EN.pdf Download
TES240 - QR Card.pdf Download
