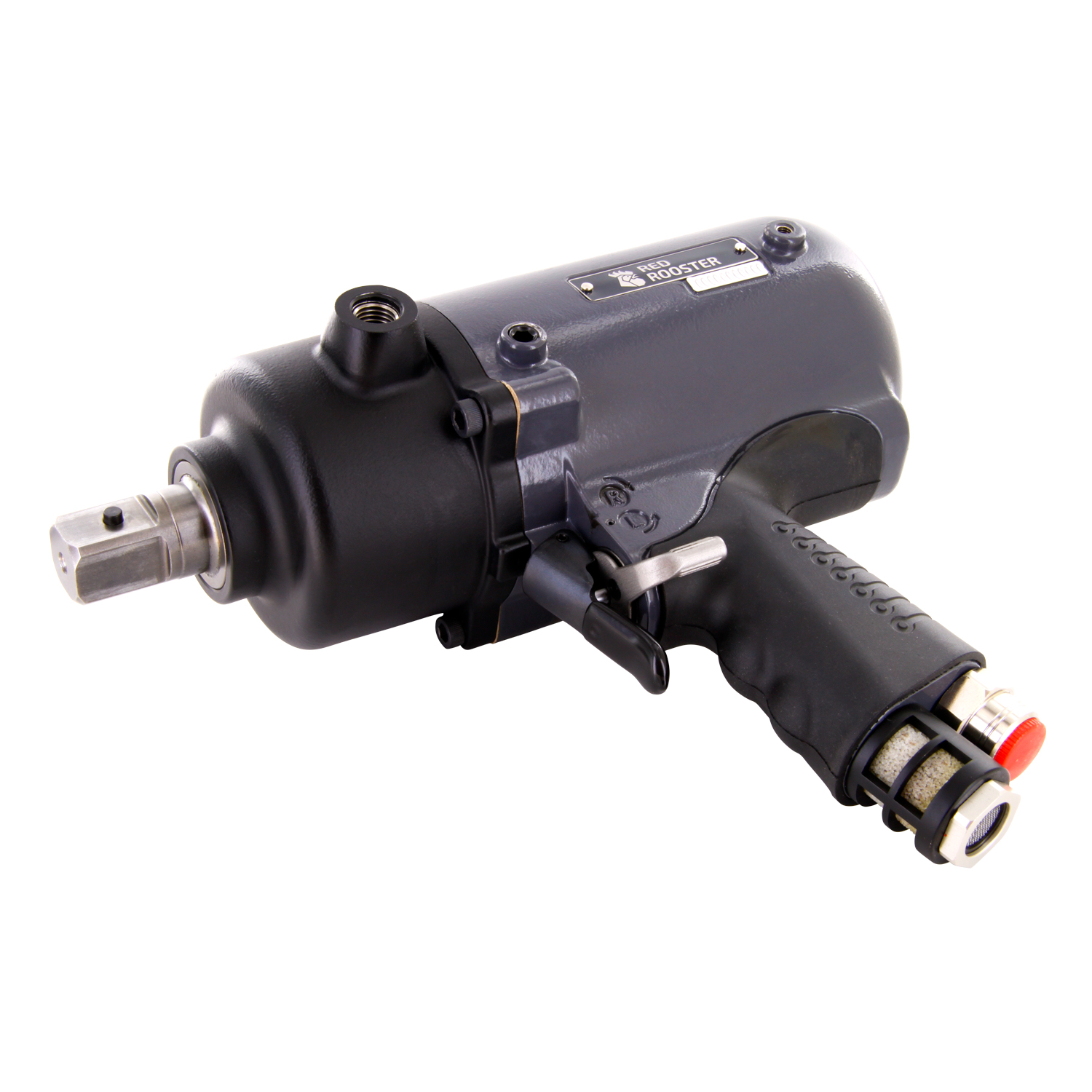

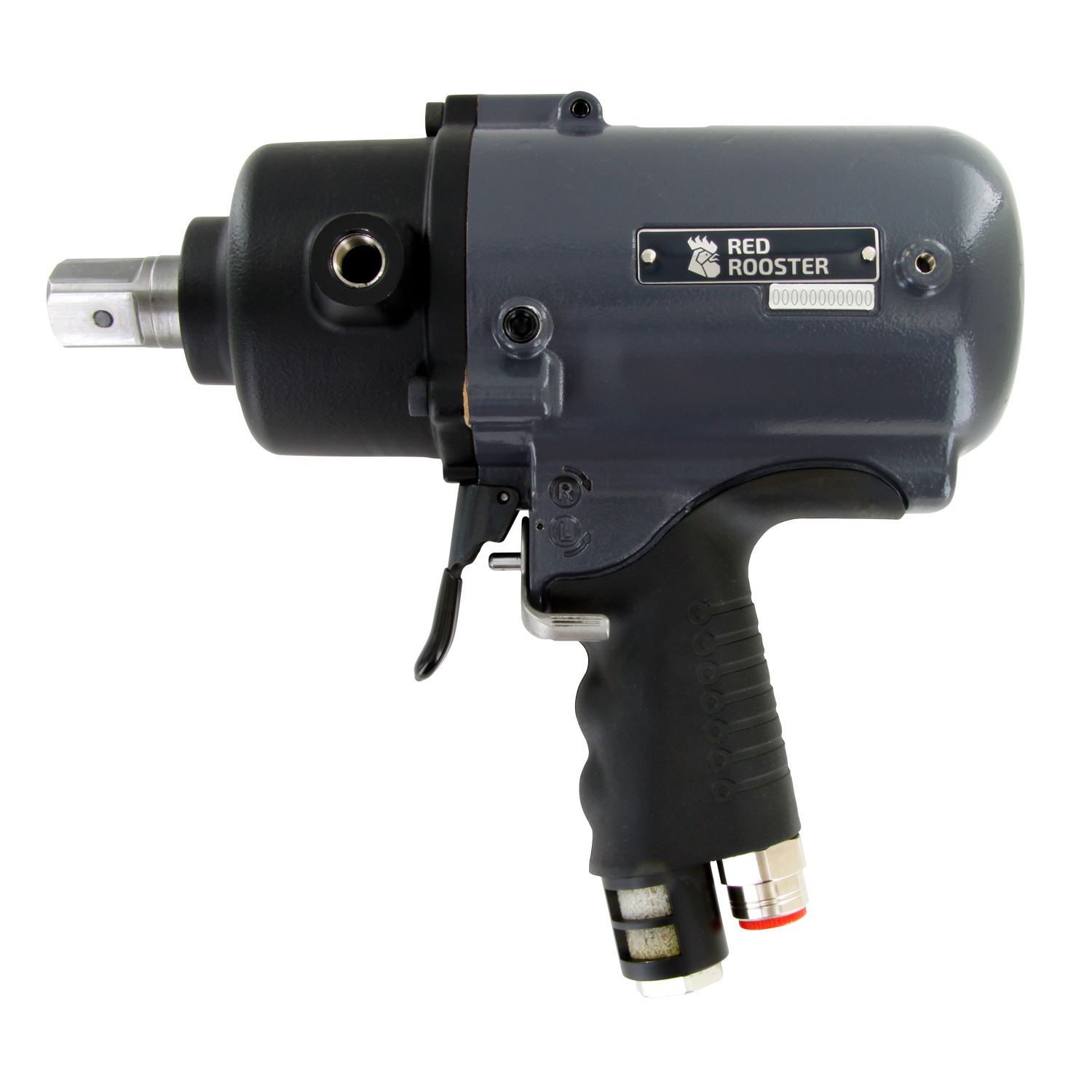

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
• Auto shut off function
Related products
AC40A-F04-D
Modular FRL unit
Related accessories
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 18 - 20 |
| RPM | 3000 |
| Torque (Nm) | 230 - 450 |
| Airconsumption (l/s) | 26 |
| Weight (kg) | 4,25 |
| Airconnection | PT 3/8" |
| Airpress max. (MPa) | 0,73 |
| mm A | 250 |
| mm B | 239 |
| Hosediameter (mm) | 13 |
| Square Drive / Hexagon | 3/4" |
| Safety standard | EN ISO 11148-6 |
| Max Torque to be achieved with air pressure (Bar) | 7 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 8 |
| Vibration uncertainty (m/s²) | 1,29 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 87 |
| Sound power (dB(A)) | 98 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981280643 |
