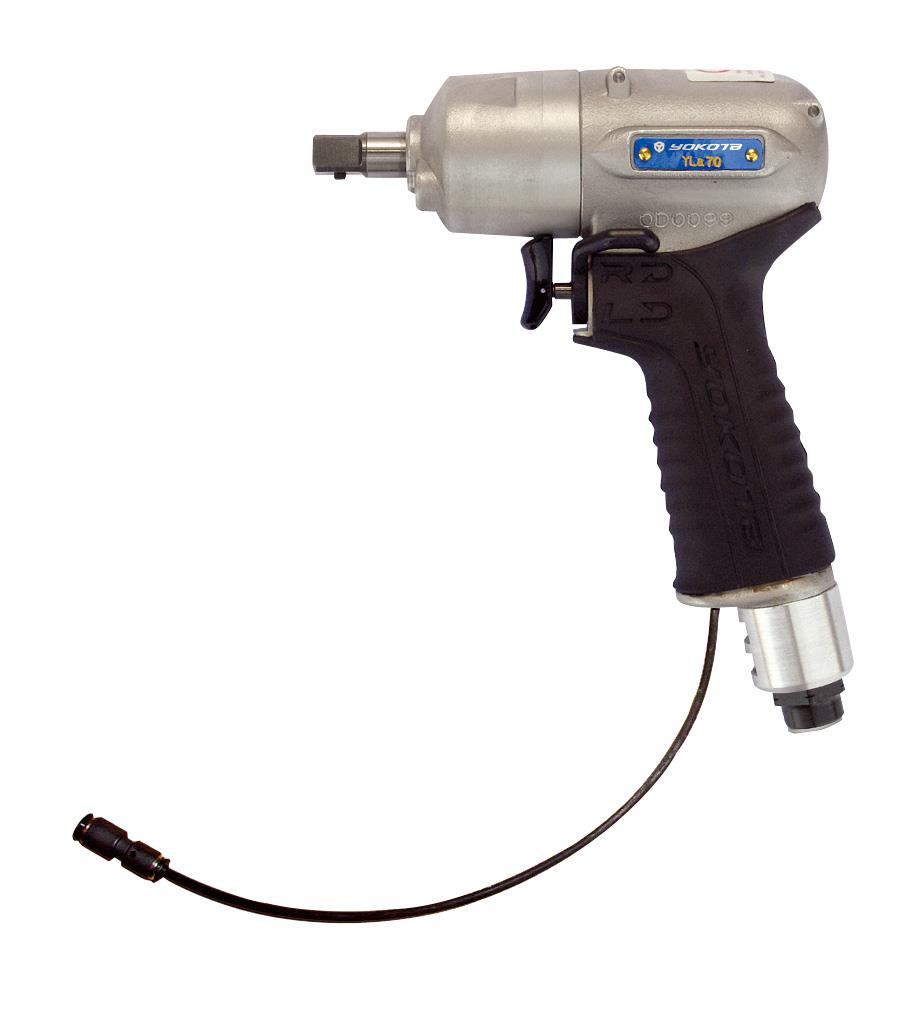

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor. Extremely low weight and adapted for use with non-lubricated air. Exclusively for use with YTC-3 Poka Yoke controller.
Related products
YTC-3*
Poka Yoke+ Controller
AC30A-F03E-B
Modular FRL Unit
TW-3
Spring balancer 1,0-3,0 kg
Related accessories
0191-0029-01-00
Rubber protection cover YLA80
61022-TH002
Tool Holder, diameter 47mm
ATLUB
Air Tool Oil, 1 litre
Specifications
Brand | Yokota |
Bolt capacity (mm) | 8 |
RPM | 7000 |
Torque (Nm) | 33 - 50 |
Airconsumption (l/s) | 5,8 |
Weight (kg) | 0,9 |
Airconnection | PT 1/4" |
Airpress max. (MPa) | 0,63 |

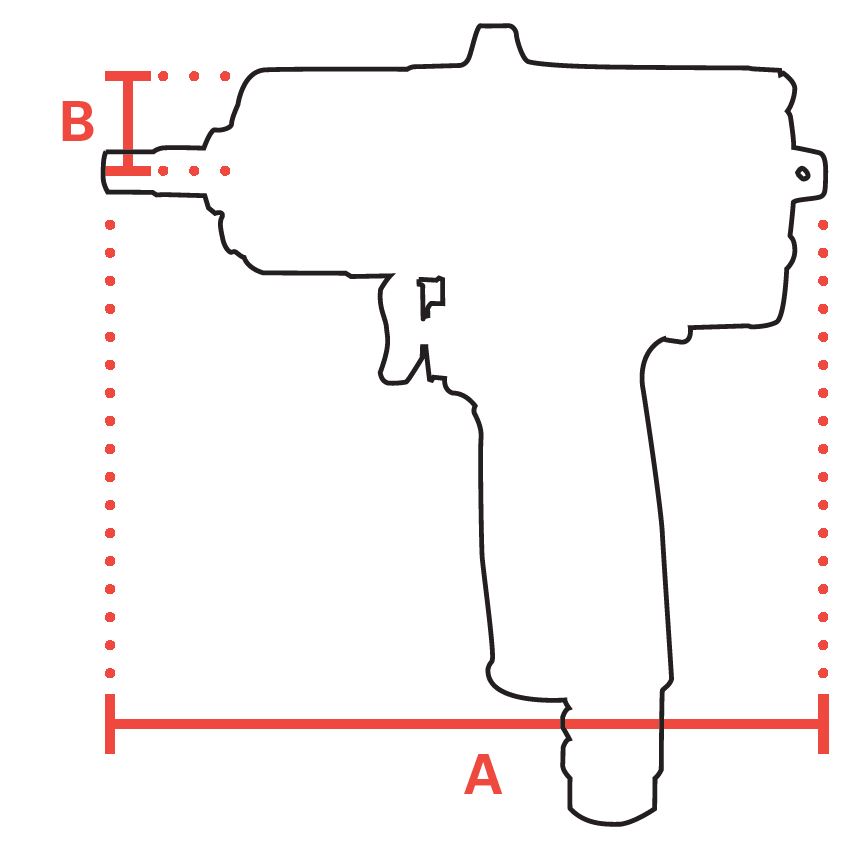

mm A | 139 |
mm B | 22 |
Hosediameter (mm) | 6,5 |
Square Drive / Hexagon | 3/8" |
Safety standard | EN ISO 11148-6 |
Air consumption no load (l/s) | 9 |
Vibration standard | EN ISO 28927-2 |
Vibration value (m/s²) | < 2,5 |
Vibration uncertainty (m/s²) | 1 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | 75 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981043248 |
Manuals
YLA80E-JQ-FR.pdf | Download |
YLA80E-JQ-DE.pdf | Download |
YLA80E-JQ-EN.pdf | Download |
YLA80E-JQ-NL.pdf | Download |
YLA80E-JQ - QR Card.pdf | Download |
