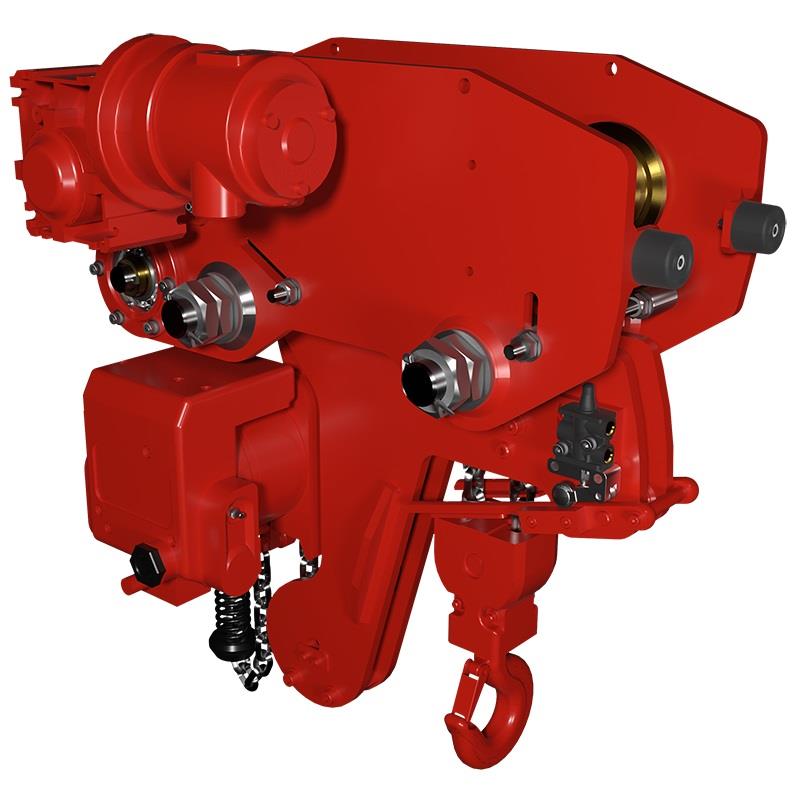

Heavy duty hoist built into low headroom trolley frame with high efficiency motor gearbox
STANDARD FEATURES:
• TOKU rotary vane motor
• Failsafe automatic internal disc brake
• Trolley travel self braking
• Choice of pendant controls or control stations
• Upper & lower limit switches
• Forged alloy steel safety swivel hooks with safety catch
• Anti-tilt & anti-drop plates
• Wheel profile to suit parallel or tapered flanges
AVAILABLE OPTIONS:
• Marine specification paint systems
• ATEX Category 2 (zone 1/21) specification
• Chain collectors ( PVC, galvanised or stainless steel)
• Travel limits
• Beam brake
• Articulated trolley for small beam radius
Related products
42-02-35-VRD
4-Button Pendant Valve Assy TCR/TMH
AC40-F04DM-8-B
Modular FRL Unit
6,3X19,1RS60
Chain RSA60 DIN 5684-6
6,3X19,1RTS
Chain RTS EN 818-7
Specifications
| Brand | Red Rooster |
| Number of chain falls | 2 |
| Lowering speed full load (m/min) | 9 |
| Flange width with integrated hoist (mm) | 60 - 300 |
| Weight incl. 3m lift (kg) | 90 |
| Lifting speed full load (m/min) | 5,3 |
| Lifting speed 0-load (m/min) | 9,5 |
| Chain weight (kg/m) | 0,8 |
| Chain (mm) | 6,3x19,1 |
| Airconnection | PT 1/2" |
| Workingpressure (MPa) | 0,4 - 0,63 |
| Capacity (kg) | 1000 |
| Air consumption lifting (l/s) | 25 |
| Standard travel speed (m/min) | 9 |
| Air consumption traveling (l/s) | 25 |
| EAN | 8717981347544 |
