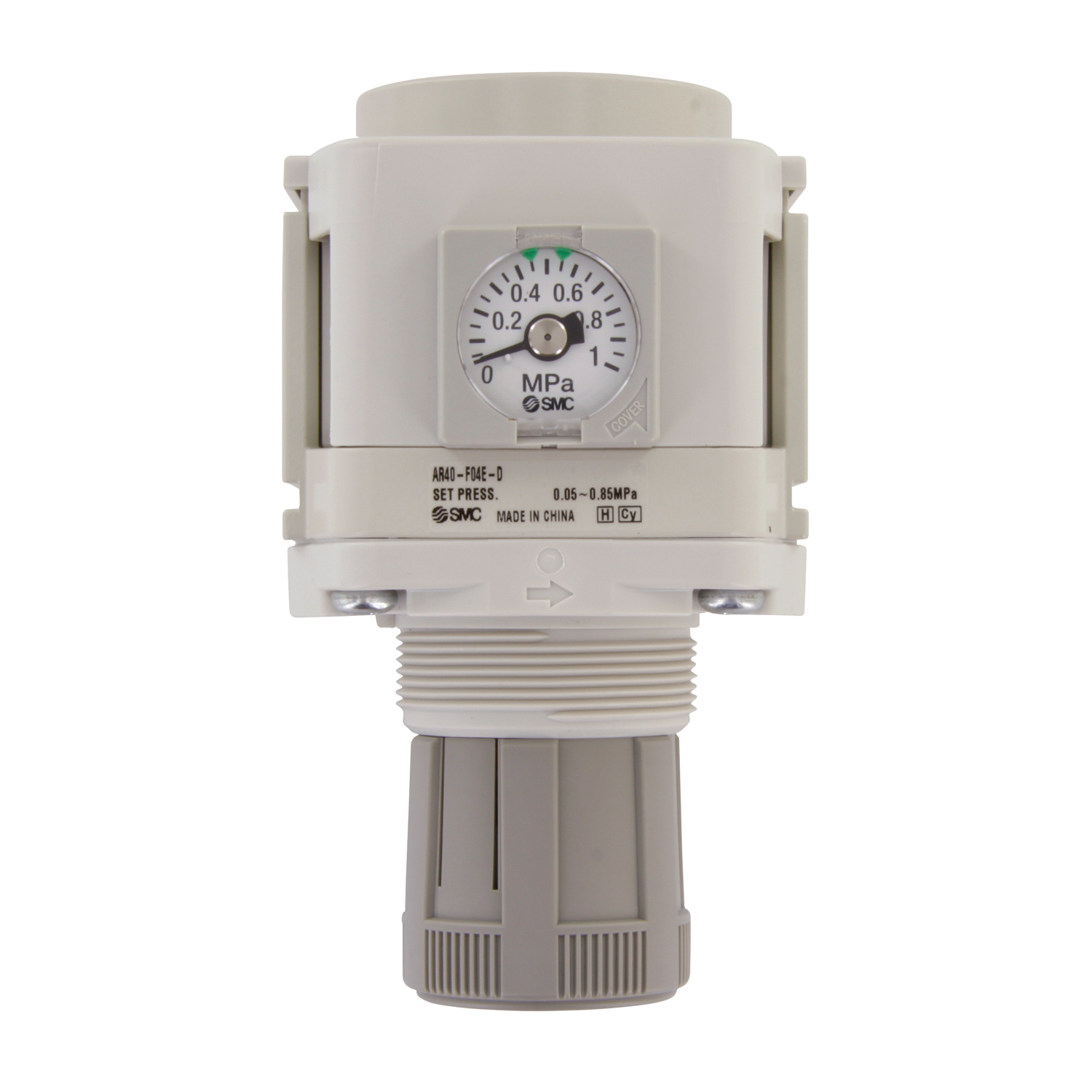

Standard type
Port Size: 1/2" G
Pressure gauge: Square embedded type pressure gauge (with limit indicator)
Exhaust mechanism: Relieving type
Standard set pressure: 0,05 - 0,85MPa



Related accessories

AR43P-260S

Set nut

E400-F04-D

Piping adapter

AR43P-270AS

Bracket Assembly

Y410-F03-D

T-Spacer - Standard

Y400-D

Cross Spacer

Y400T-D

Spacer with bracket

Datasheet



Specifications

Brand SMC
Connection pressure gauge 1/8"
Airconnection 1/2"
Airpress max. (MPa) 1
(Nl/min) 5000
Workingpressure (MPa) 0,05 - 0,85
EAN 8717981435616
