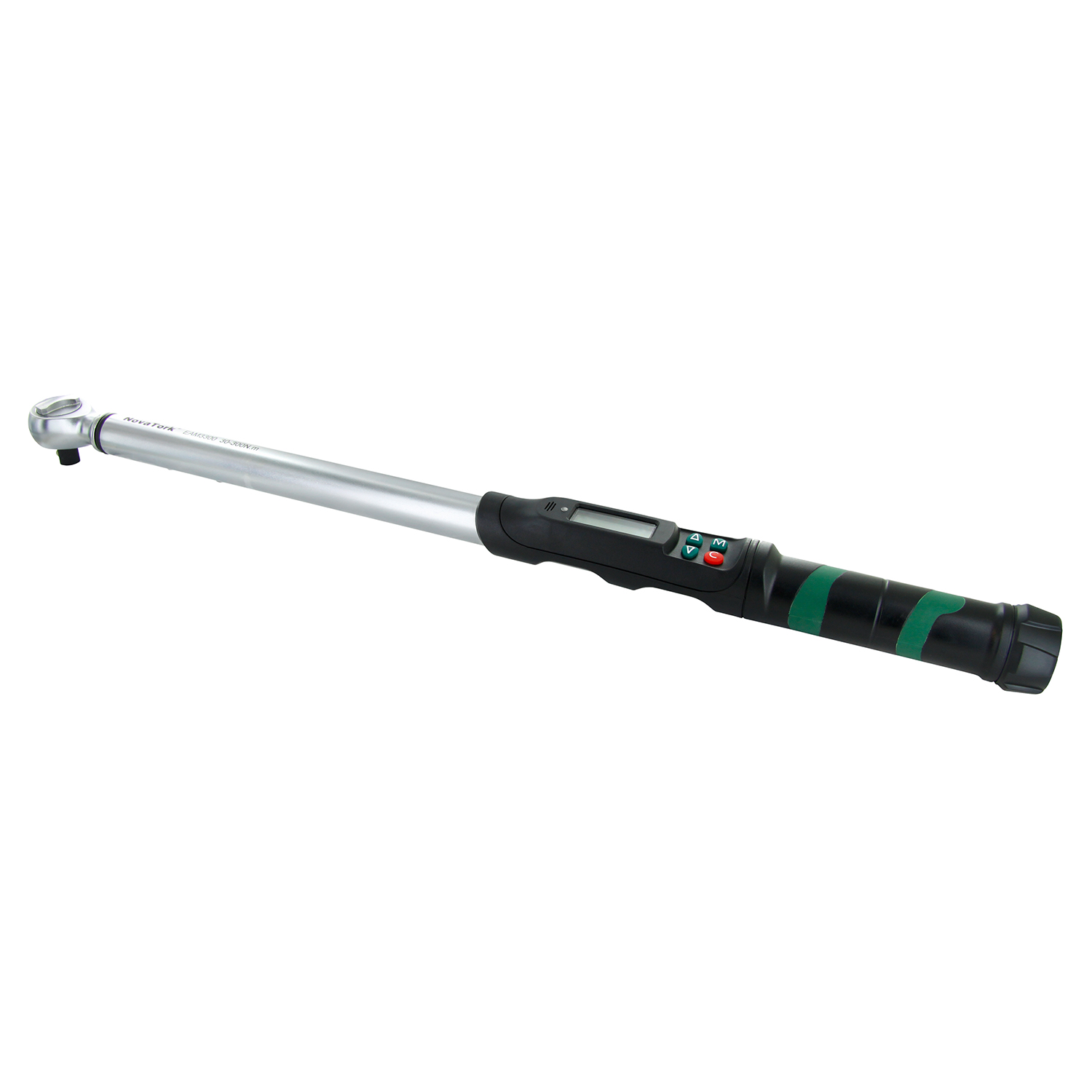

EAM Series Multifunctional Electronic Angle Torque Wrench
• Accuracy:
- Torque: CW±2%, CCW±3% from 10% to 100% of capacity;
- Angle: ( ±1% of reading) + ( ±1° @ angular speed of 10°/s~180°/s) +( ±1° of test fixture)
• Angle Function
Specially developed by a team of expert scientists
- High-precision gyroscope angle chip
- Sensitive recognition of any plane and any angle
- Can preset the target angle value
- Sound and light alarm function when reaching the target value
• Digital Display and functions
- The reading is intuitive and clear, with high resolution
- Torque error% display function
- Angle difference display in angle mode
- Back light for dark working condition
- Can store 1000 data sets, retrievable by micro-USB connector
- Rechargeable (by micro-USB connector) battery
• Hand grip in engineering plastic, oil resistant and non-slip resistant, durable





Specifications

Brand NovaTork
Square Drive 3/8"
Torque (Nm) 3 ~ 30
Weight (kg) 0,88
mm B 38
L mm 427
EAN 8717981419845


Manuals

EAM230-EN.pdf Download
EAM230 - QR Card.pdf Download
