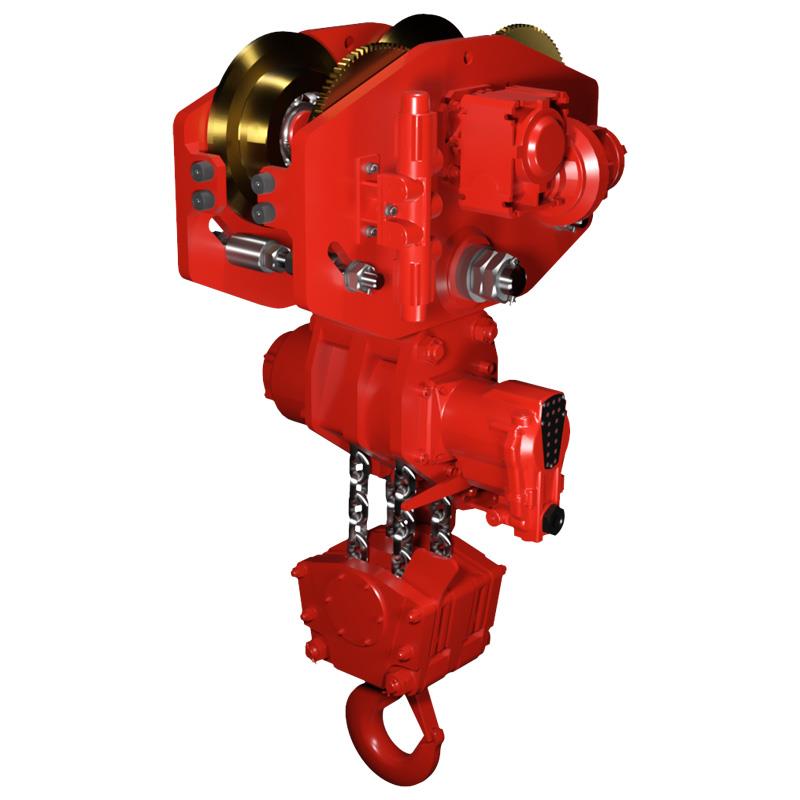

Heavy duty range of hoists with high efficiency motor gearbox
STANDARD FEATURES:
• TOKU rotary vane motor
• Failsafe automatic internal disc brake
• Trolley travel self braking
• Choice of pendant controls or control stations
• Upper & lower limit switches
• Forged alloy steel safety swivel hooks with safety catch
• Anti-tilt & anti-drop plates
• Wheel profile to suit parallel or tapered flanges
AVAILABLE OPTIONS:
• Marine specification paint systems
• ATEX Category 2 (zone 1/21) specification
• Chain collectors ( PVC, galvanised or stainless steel)
• Travel limits
• Beam brake
• Articulated trolley for small beam radius
Standard flange range R1: 130 - 200 mm
Other flange ranges also available: R2: 200 - 260 mm, or R3: 260 - 300 mm
Related products
42-02-35-VRD
4-Button Pendant Valve Assy TCR/TMH
16X45
Chain EN 818-7
AC60-F10DM-8-B
Modular FRL Unit
Specifications
| Brand | Red Rooster |
| Airconsumption (l/s) | 40 |
| Number of chain falls | 4 |
| Flange width with integrated hoist (mm) | 130 - 200 |
| Weight incl. 3m lift (kg) | 670 |
| Lifting speed full load (m/min) | 0,8 |
| Lifting speed 0-load (m/min) | 1,6 |
| Chain weight (kg/m) | 5,7 |
| Chain (mm) | 16X45 |
| Airconnection | 1" PT |
| Min beam radius (m) | 3,0 |
| Workingpressure (MPa) | 0,4 - 0,63 |
| Airhose (mm) | 25 |
| Air consumption lifting (l/s) | 58 |
| Std temperature range (° C) | -10 - +50 |
| Optional tempertaure range (° C) | -20 - +70 |
| Standard travel speed (m/min) | 4 |
| Number of driven wheels | 2 |
| Sound pressure (dB(A)) | 4 |
| EAN | 8717981401345 |
