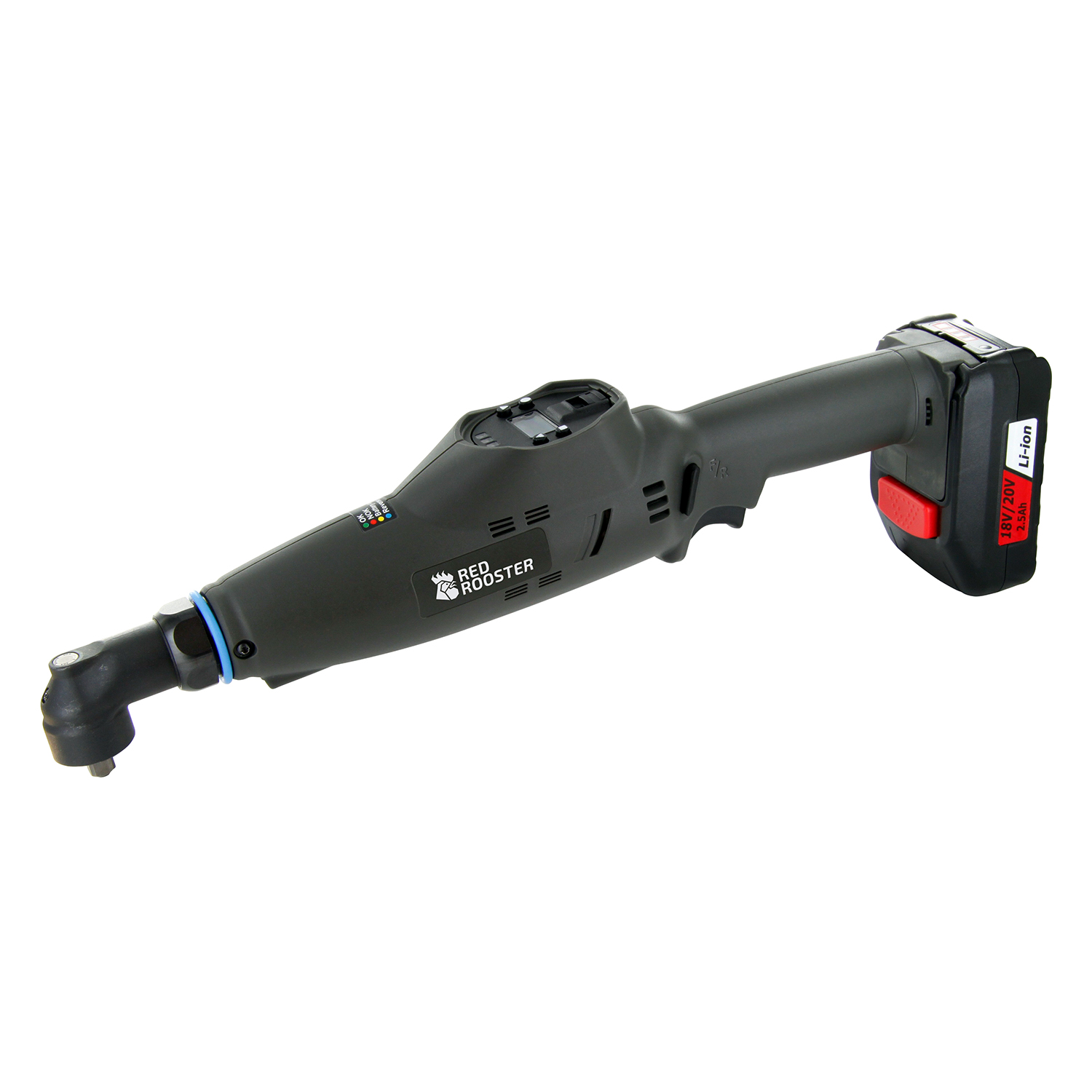

RED ROOSTER Cordless transducerized angle wrench. Very well suited for assembly applications where good torque accuracy is required. 8 programs can be set for both torque and angular displacement. The programs can be easily selected or programmed in a fixed sequence. Contactless trigger and forward / reverse switch for a long lifetime. Repeatability Cm/Cmk > 2 at +/- 7%.
Characteristics:
• Brushless motor
• 18 Volt Lithium-Ion battery

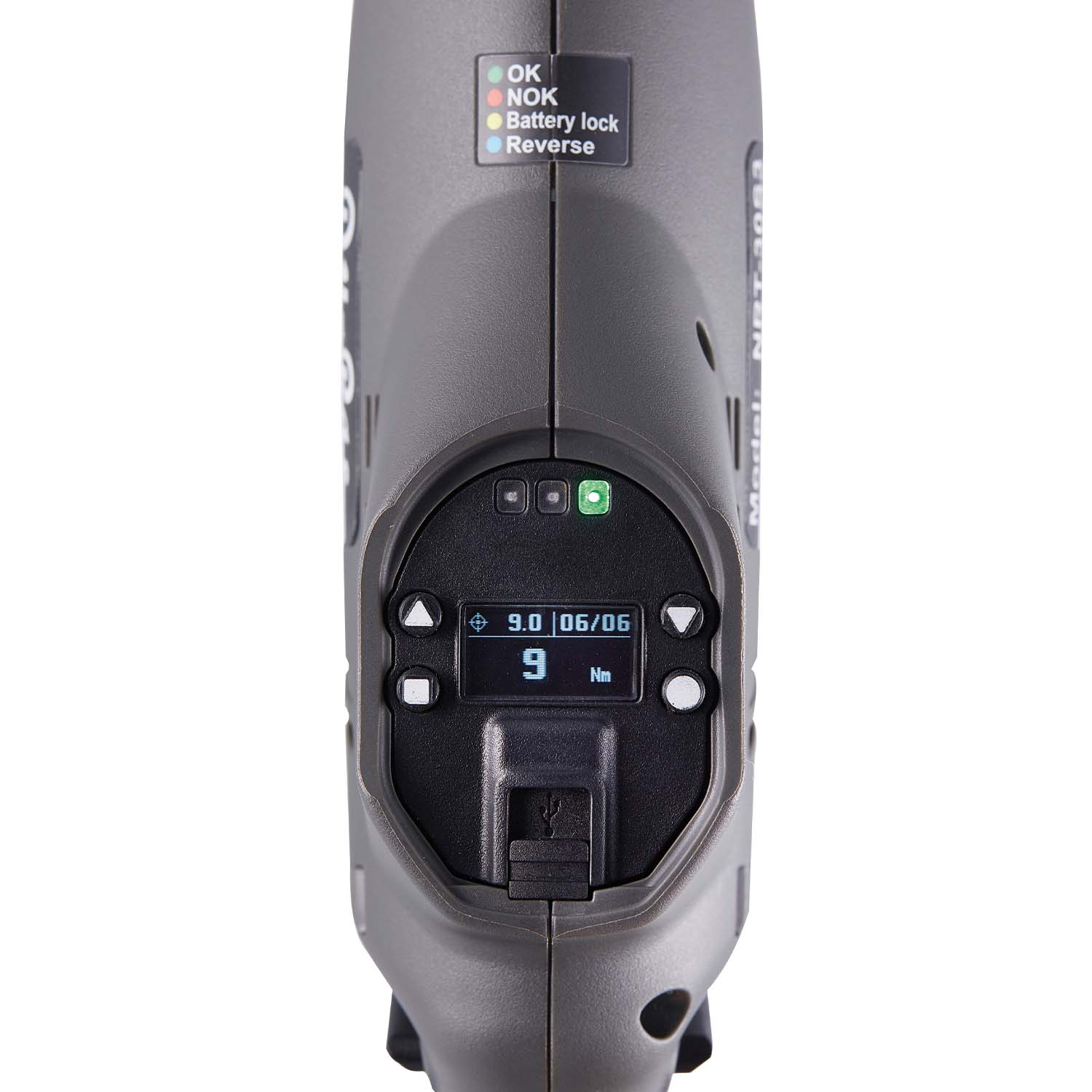

• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Tightening mode setting – Torque or Angle
• Programmable torque
• Programmable angle limits
• Programmable speed
• Group check / counting
• 8 programs including sequence
• Compact and light weight
• The flat battery pack offers stability
• Battery (2,5 Ah: BB200D-325; 5,0 Ah: BB200D-350) and charger (B84192B) to be ordered separately
Related products

BB200D-325
18V 2.5Ah Battery, Li-ion

BB200D-350
18V 5.0Ah Battery, Li-ion

B84192B
18-20V Charger
Related accessories

33116-B200D-01
Protection Cover

61022-TH005
Tool Holder

32088-NPA-01
Cable

33116-B200D-02
Protection Cover

33116-NRA-01
Protection Cover RRI-BCA16&30
Specifications
Brand | Red Rooster Industrial |
Square Drive | 3/8" |
Bolt capacity (mm) | 6 |
RPM | 120 - 600 |
Torque (Nm) | 5 - 16 |
Weight w/o battery (kg) | 1,68 |

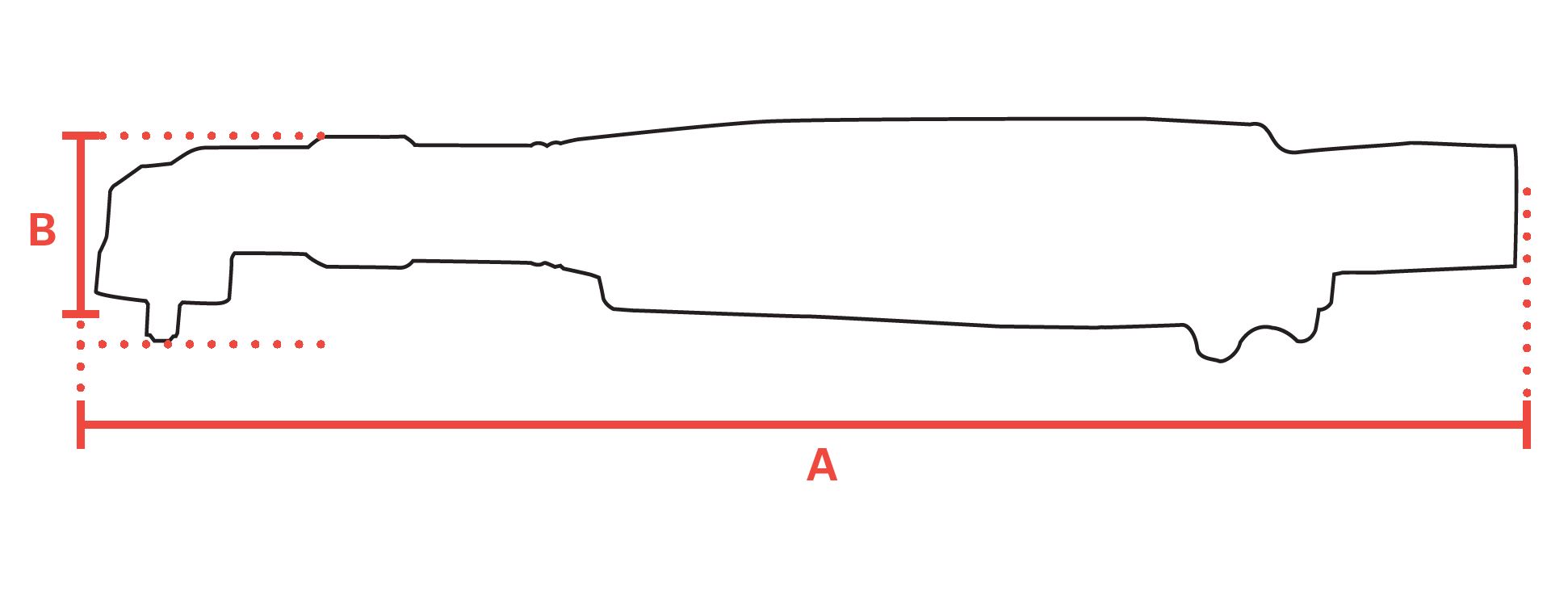

mm A | 438,9 |
mm B | 38 |
Battery voltage (Volt) | 18 |
Battery type Li-ion….(Ah) | 2,5 / 5,0 |
Safety standard | EN ISO 11148-6 |
Sound standard | ISO 15744 |
Sound pressure (dB(A)) | < 75 |
Sound uncertainty (dB(A)) | 3 |
EAN | 8717981418701 |
