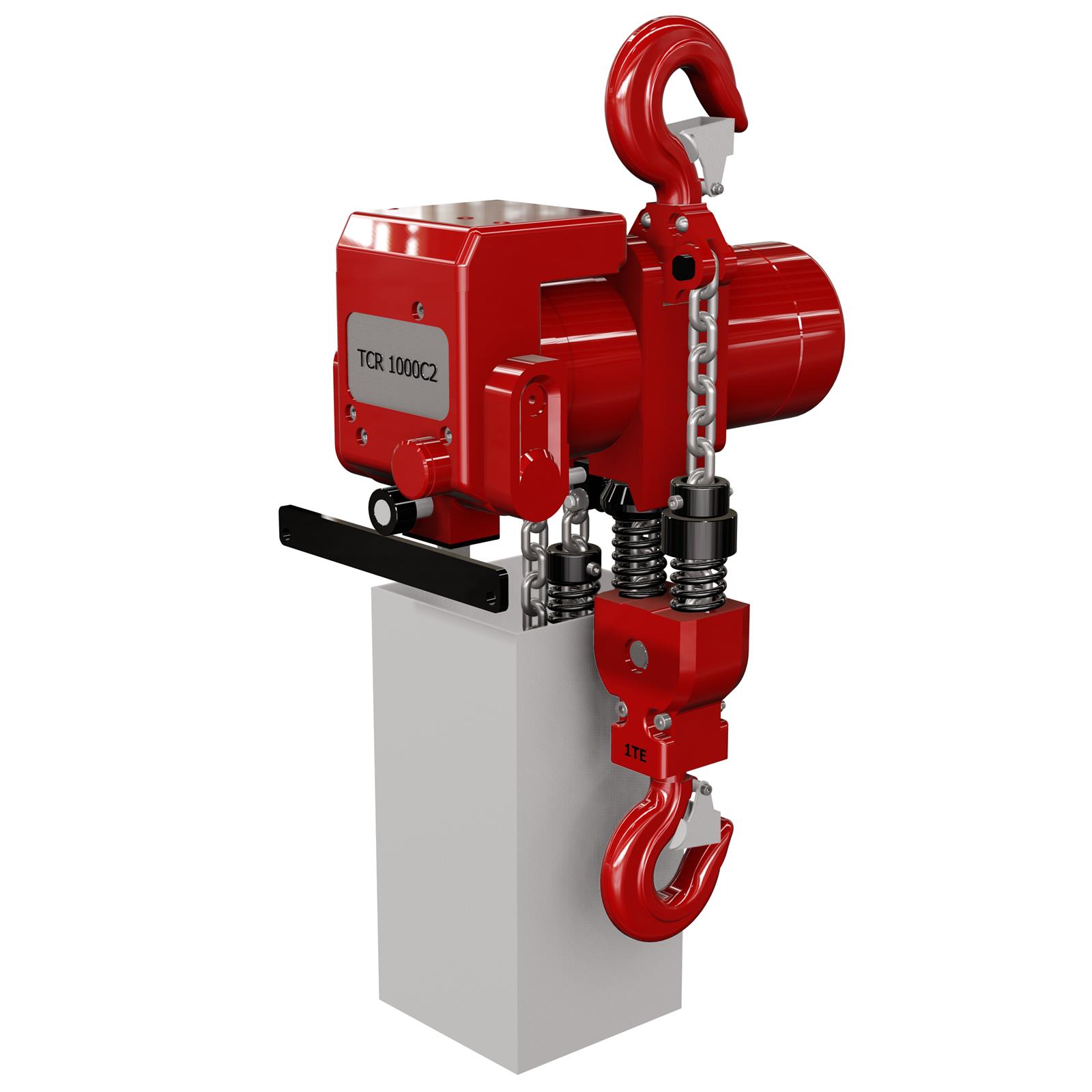

These RED ROOSTER Air Chain Hoists are especially developed for heavy industrial use.
Robust cast steel body. Valveblock same for all models, less spare parts. Standard with load limiter.
Characteristics:
* Precise variable speed control (cord - and pendant control)
* Optimum control of the load, very precise positioning
* Compact design
* Endstop system
* Load limiter built-in without loss of headroom
* Cord control or pendant control
* Quiet, low noise level, silenced
* Air pressure 0,4 - 0,63 MPa (4 - 6,3 Bar)

Related products

AC40-F04DM-8-B

Modular FRL Unit

6,3X19,1RS60

Chain RSA60 DIN 5684-6

6,3X19,1RTS

Chain RTS EN 818-7





Specifications

Brand Red Rooster
Number of chain falls 2
Lowering speed full load (m/min) 9,0
Lowering speed 0-load (m/min) 6,5
Weight incl. 3m lift (kg) 35,2
Lifting speed full load (m/min) 5,3
Lifting speed 0-load (m/min) 9,5
Chain weight (kg/m) 1,8
Chain (mm) 6,3 x 19,1
Chainbag/Chainbucket +
Loadlimiter +
Airconnection 1/2" BSPT
Airpress max. (MPa) 0,63

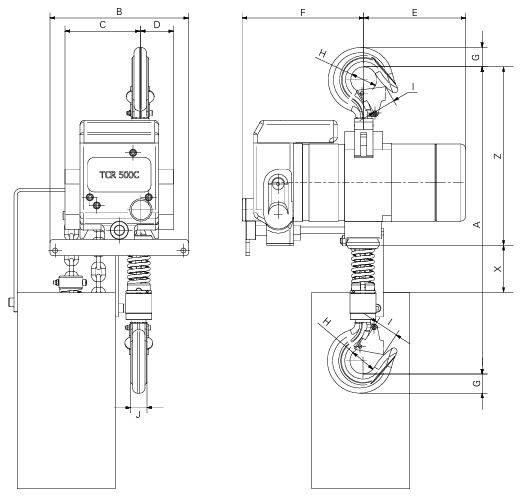

mm A 519
mm B 212
mm C 162
mm D 50
mm E 156
mm F 186
mm G 29
mm H 40
mm I 29
mm J 25
mm X 100
mm Z 250
Hosediameter (mm) 13
SMC Airtreatment unit AC40-F04DM-8-B
Capacity (kg) 1000
Air consumption lifting (l/s) 25
Air consumption lowering (l/s) 27
EAN 8717981100415
