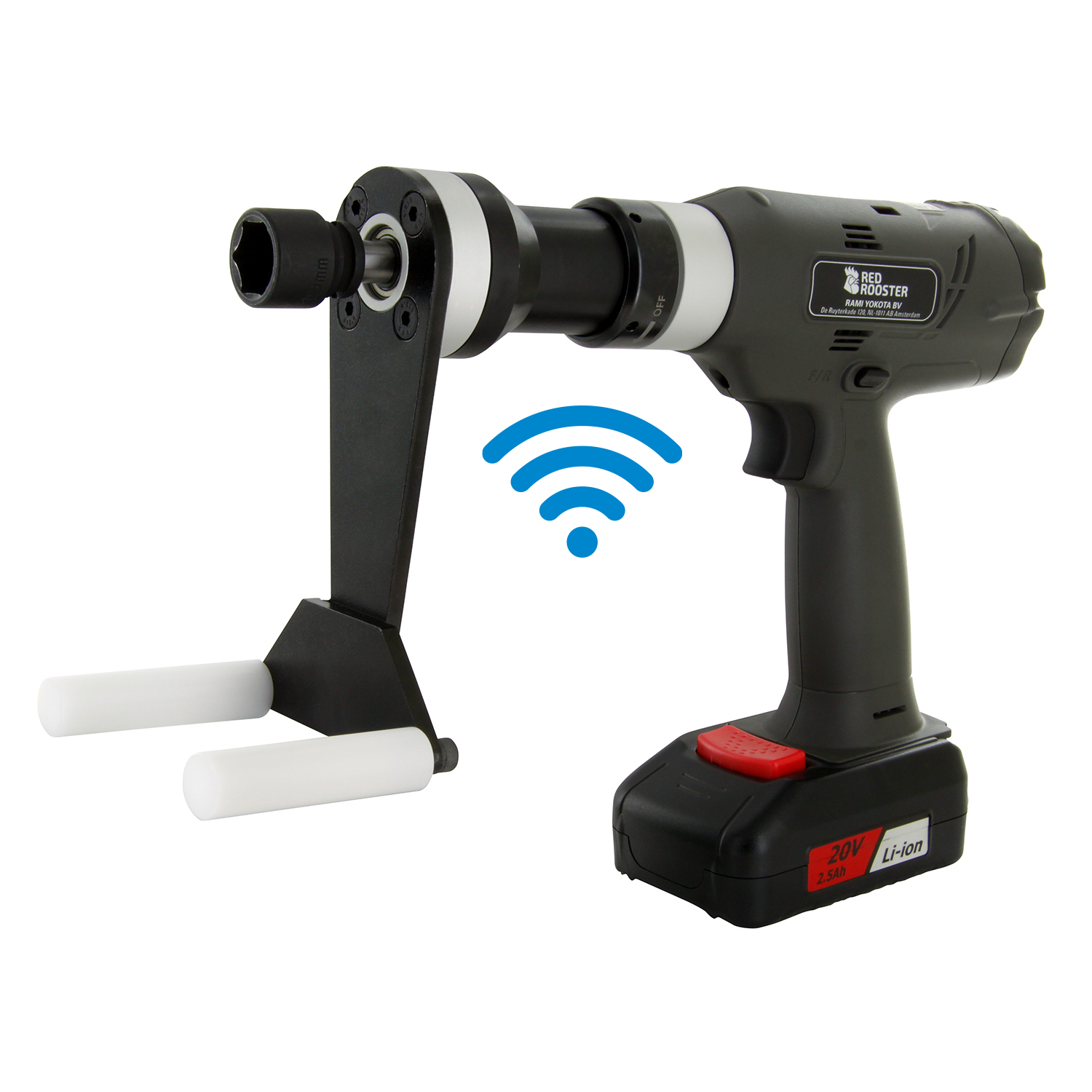

RED ROOSTER Cordless transducerized screwdriver.
Very well suited for assembly applications with a need of good torque accuracy.

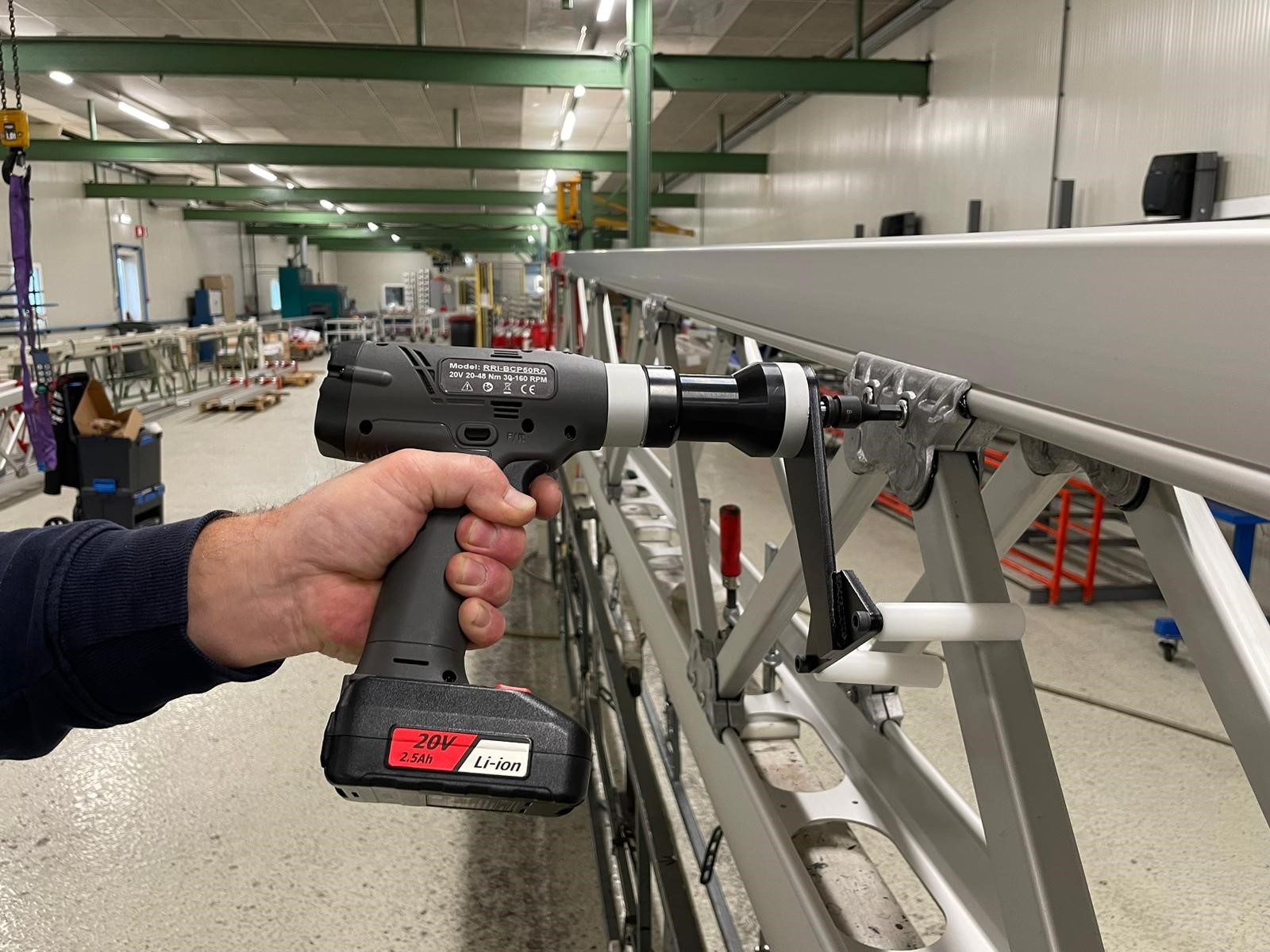

This specific tool is developped for the bicycle manufacturing industry, crank shaft application.
Contactless trigger and forward / reverse switch for a long lifetime. Repeatability Cm/Cmk > 2 at +/- 7%.
Characteristics:
• Brushless motor
• 20 Volt Lithium-Ion battery
• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Programmable torque
• Programmable angle limits
• Programmable speed
• Group check / counting
• 8 programs including sequence
• Tightening Data collection by WLAN
• Battery (2,5 Ah: BB200D-325; 5,0 Ah: BB200D-350) and charger (B84192B) to be ordered separately

Related products

DWL-B

2.4G/5.8G WLAN receiver

BB200D-325

20V 2.5Ah Battery, Li-ion

BB200D-350

20V 5.0Ah Battery, Li-ion

B84192B

18-20V Charger



Related accessories

D39SC180B-1

Suspension Bail

33116-B200D-01

Protection Cover

33116-B200D-02

Protection Cover

33116-NPA-01

Protection Cover RRI-BCP



Specifications

Brand Red Rooster Industrial
Square Drive 3/8"
Bolt capacity (mm) 10
RPM 30 ~ 160
Torque (Nm) 20 ~ 48
Weight w/o battery (kg) 2,26
Battery voltage (Volt) 20
Battery type Li-ion….(Ah) 2,5 / 5,0
Safety standard EN ISO 11148-6
Sound standard ISO 15744
Sound pressure (dB(A)) < 75
Sound uncertainty (dB(A)) 3
EAN 8717981440429
