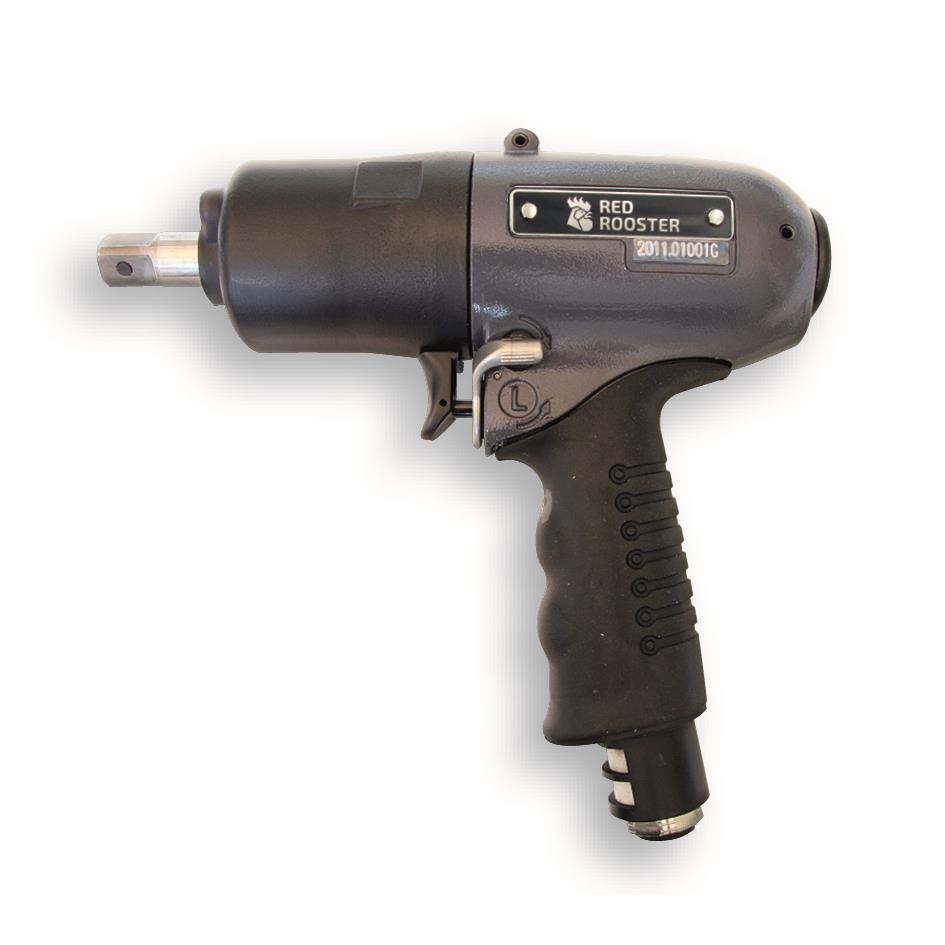

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
• Auto shut off function
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
61022-TH004
Tool Holder, diameter 73mm
ATLUB
Air Tool Oil, 1 litre
I100-109-A05
Protection Cover RRI-100 (T)
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 12 - 14 |
| RPM | 5300 |
| Torque (Nm) | 85 - 120 |
| Airconsumption (l/s) | 8,7 |
| Weight (kg) | 1,87 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 209 |
| mm B | 195 |
| Hosediameter (mm) | 8 |
| Square Drive / Hexagon | 1/2" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 7,6 |
| Vibration uncertainty (m/s²) | 1,25 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 79 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981204175 |
Manuals
| RRI-100T-DE.pdf | Download |
| RRI-100T-EN.pdf | Download |
| RRI-100T-FI.pdf | Download |
| RRI-100T-IT.pdf | Download |
| RRI-100T-SV.pdf | Download |
| RRI-100T-NL.pdf | Download |
| RRI-100T-DA.pdf | Download |
| RRI-100T-SK.pdf | Download |
| RRI-100T-PT.pdf | Download |
| RRI-100T-FR.pdf | Download |
| RRI-100T-ES.pdf | Download |
| RRI-100T-EL.pdf | Download |
| RRI-100T-PL.pdf | Download |
| RRI-100T-NO.pdf | Download |
| RRI-100T - QR Card.pdf | Download |
