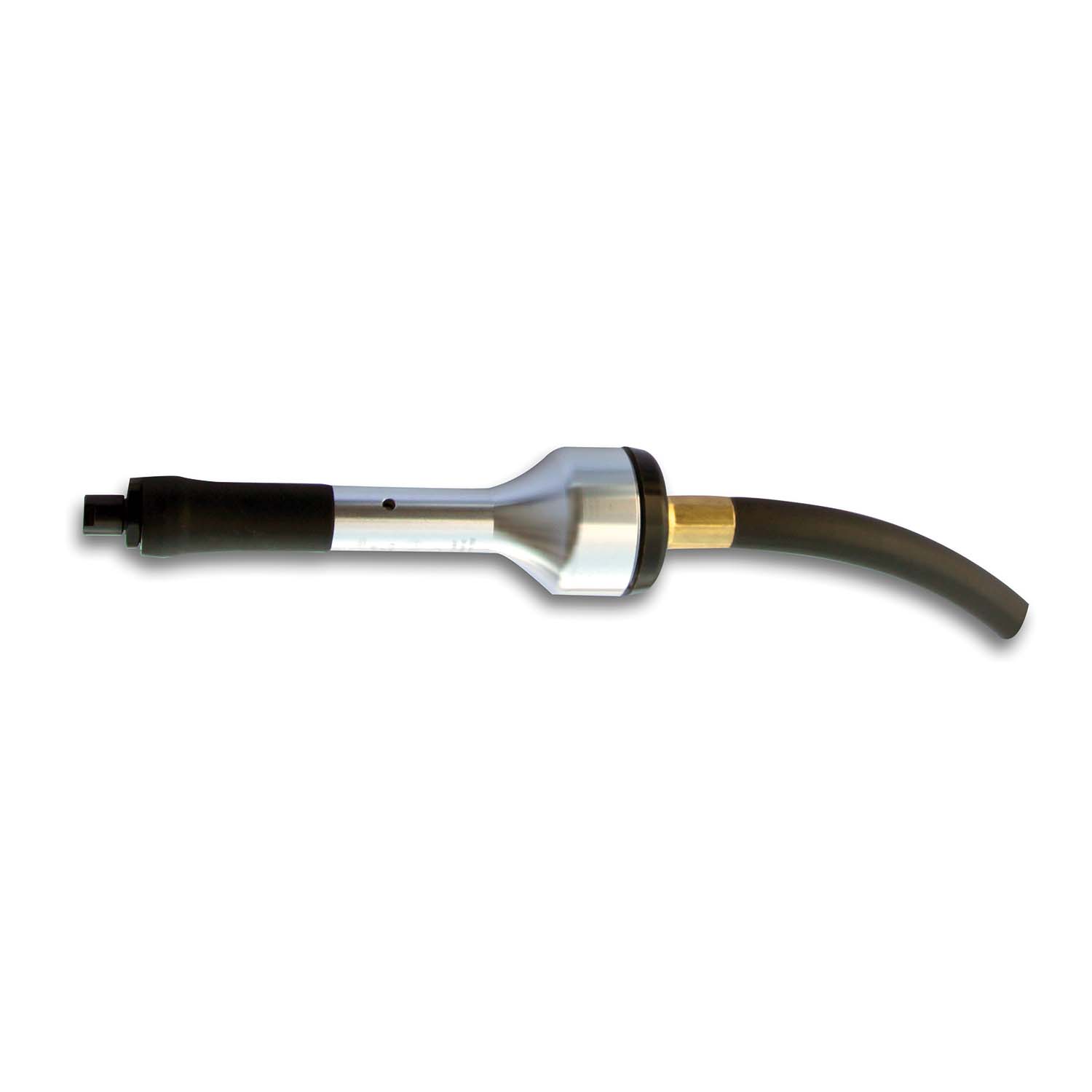

The high speed RED ROOSTER RRI-T1565 die grinder is specifically destined for grinding and de-burring with hardmetal burrs on a 3mm shaft. The good torque and power ratio of the turbine motor transmit a stable speed of the shaft, even under loads. This is truly a very lightweight and compact die grinder.Use for moulds and dies but also for non-metallic materials.
Characteristics:
• Low noise-level by means of integrated exhaust-air muffler.
• On/Off switch in the hose for flexibility of handling the tool.
• Contactless turbine motor ensures long lifetime and low vibration levels.
• This grinder should be used with oil-free air.
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| RPM | 65000 |
| Airconsumption (l/s) | 3,7 |
| Weight (kg) | 0,135 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

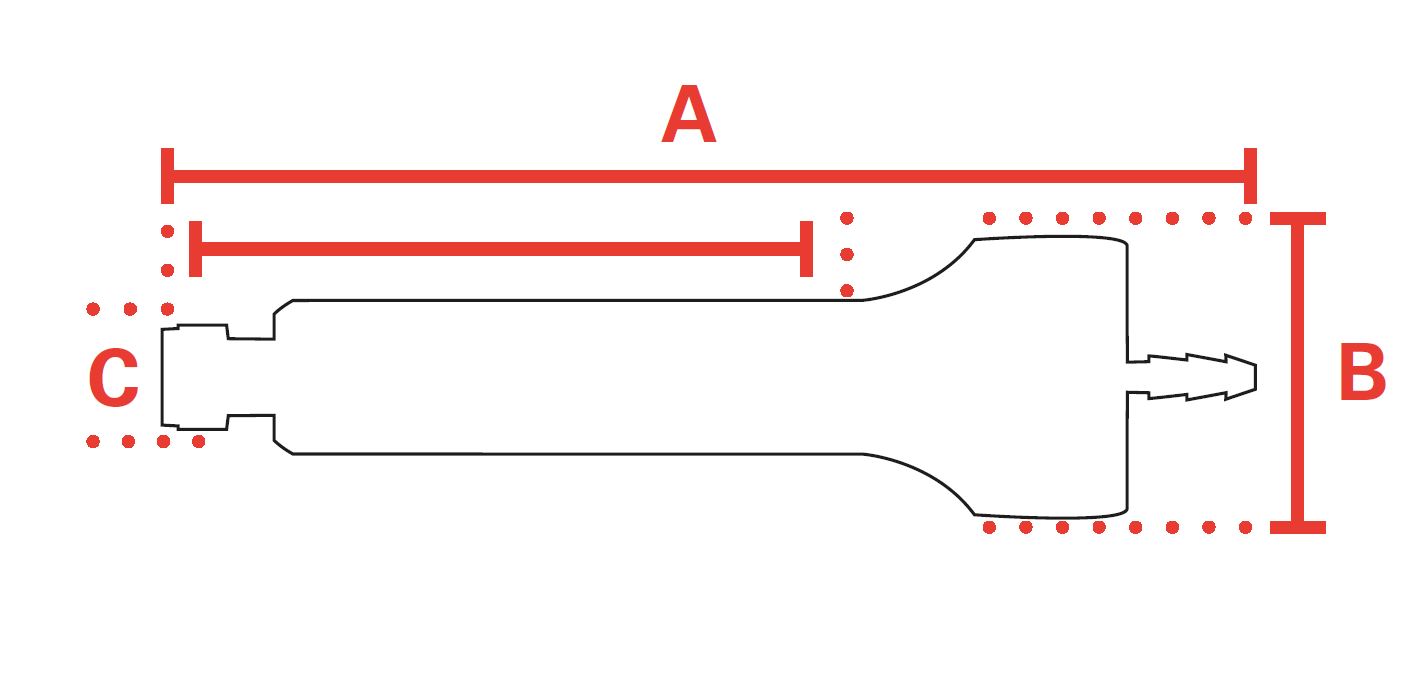

| mm A | 156 |
| mm B | 31 |
| mm C | 13 |
| mm D | 120 |
| Hosediameter (mm) | 6,5 |
| Collet chuck (mm) | 3 |
| Power (kW) | 0,15 |
| Wheel size (mm) | 9 |
| Safety standard | EN ISO 11148-7 |
| Vibration standard | EN ISO 28927-12 |
| Vibration value (m/s²) | 3,4 |
| Vibration uncertainty (m/s²) | 0,83 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 69 |
| Sound uncertainty (dB(A)) | 0,22 |
| EAN | 8717981214426 |
