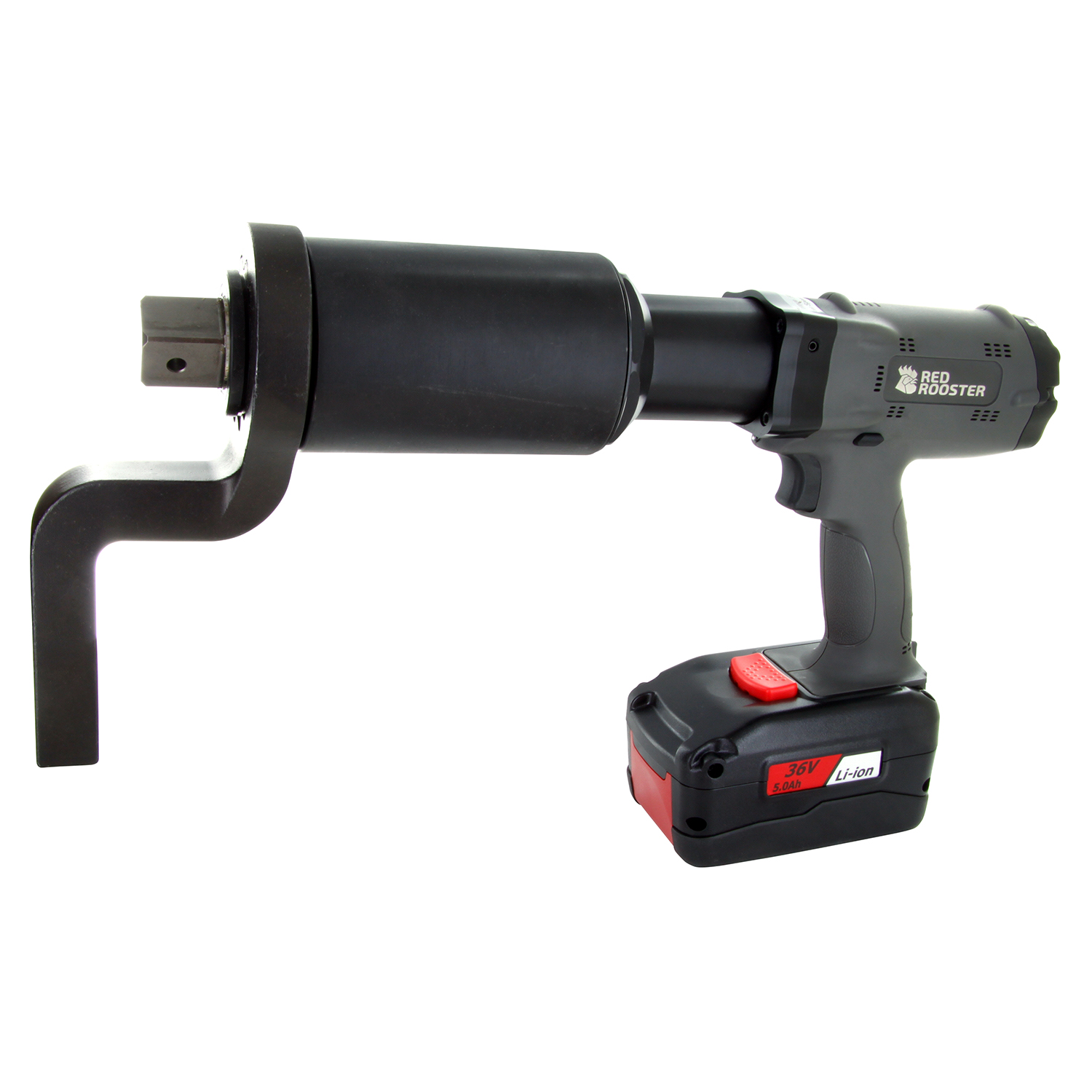

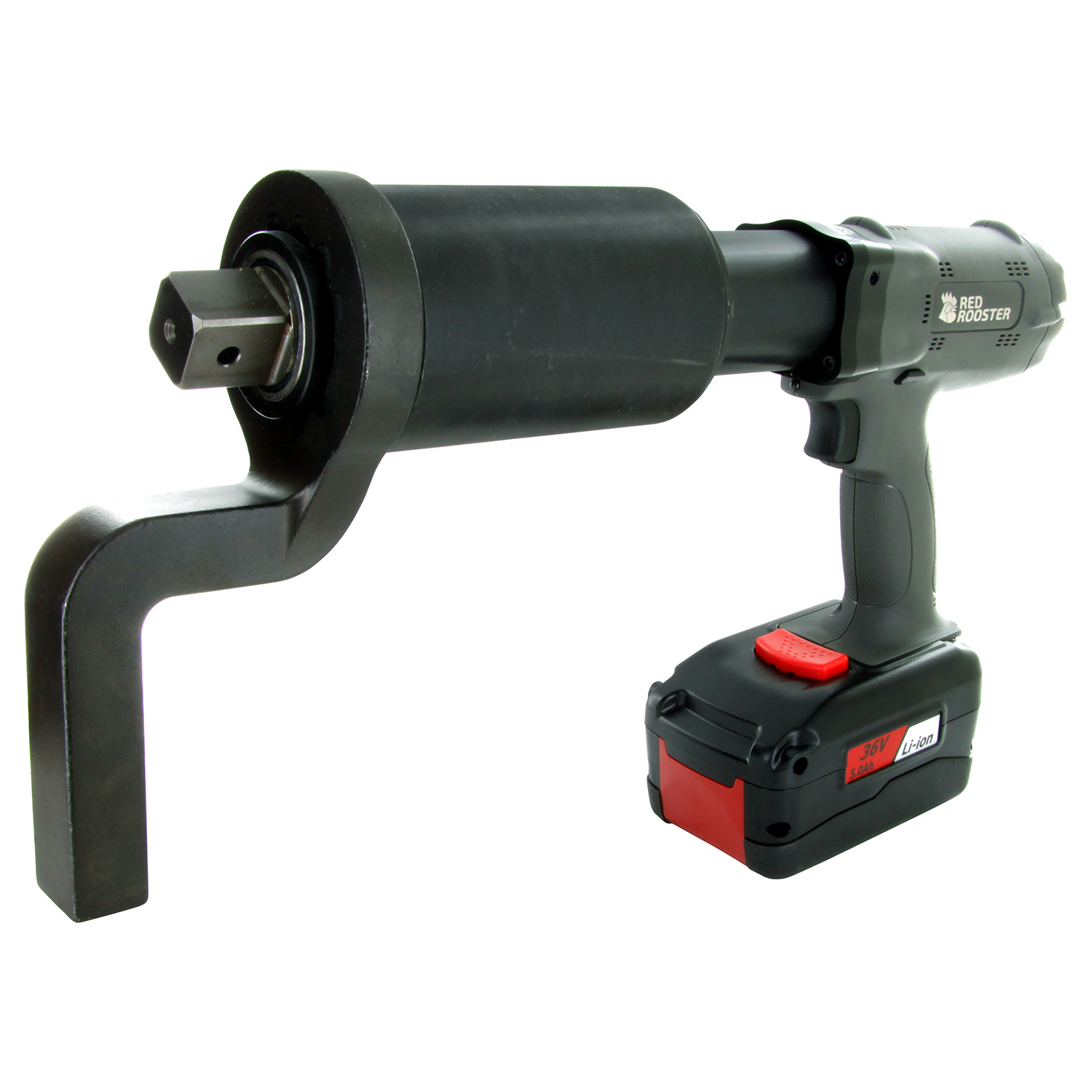

RED ROOSTER Cordless high torque geared wrench. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility. Contactless trigger and forward / reverse switch for a long lifetime.
Characteristics:
• Brushless motor
• 36 Volt Lithium-Ion battery

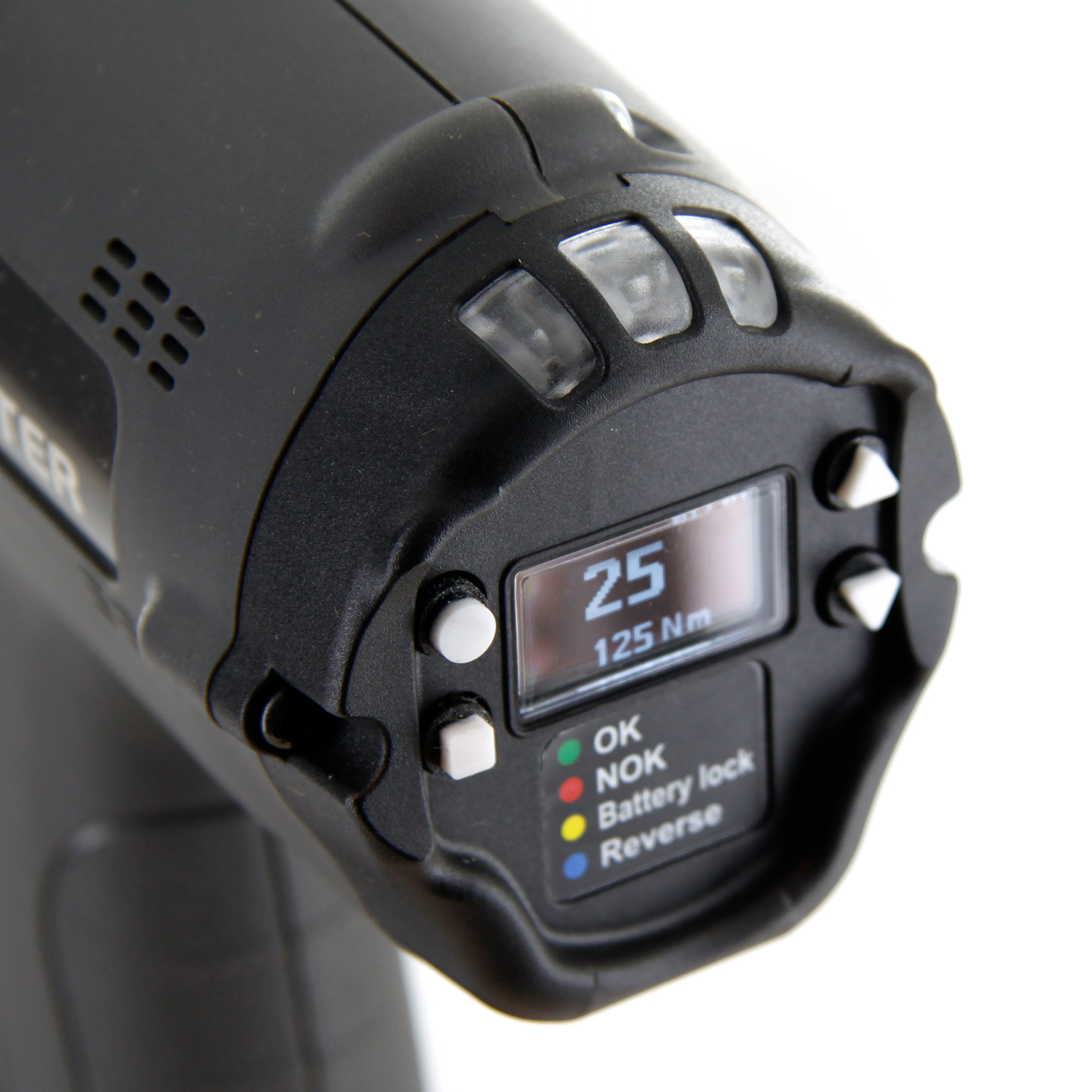

• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque in 50 steps
• Display shows torque and setting

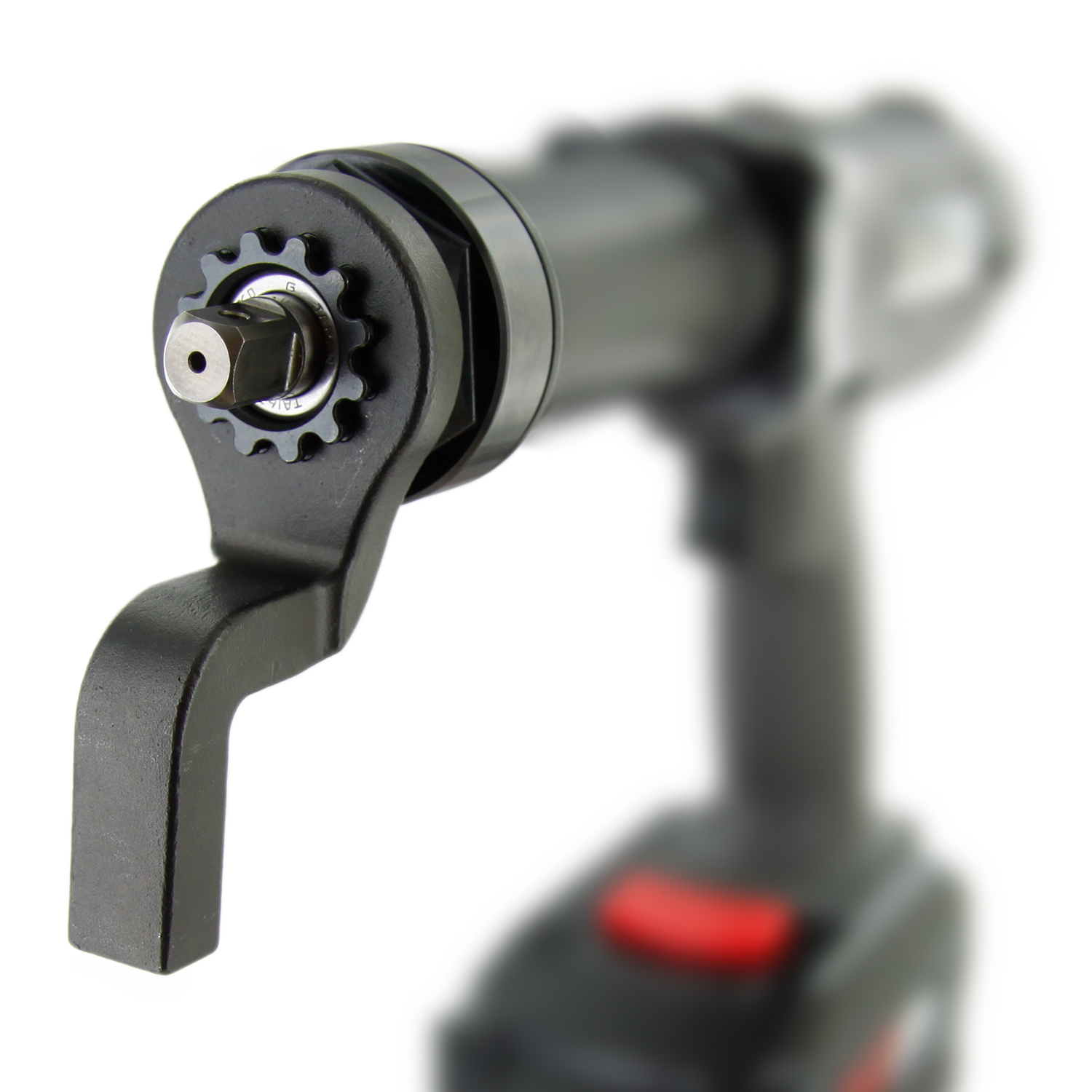

• automatic reaction arm release
• Tightening data retrievable via USB interface
Standard reaction arm is included. Batteries, charger and other accessories must be ordered separately.
Related accessories

                        SW40-283-0102
Hanger

                        31084-360F
36V Charger

                        31022-GW019
Reaction Welding Ring RRI-BEC150/250

                        Koffer RRI-BEC250
Case RRI-BEC250

                        31022-GW001
Reaction Bar RRI-BEC025-250

                        31022-GW008
Sliding Reaction Plate RRI-BEC150/250

                        31022-GW010
Reaction Bar RRI-BEC025-250

                        BW209
Back Up Wrench 12-Pt A/F 65 mm, max 6169 Nm

                        31022-GW007
Secondary Handle RRI-BEC/120/150/250

                        31022-GW009
Reaction Bar RRI-BEC025-250

                        DO6055S032
High Torque Socket 1" x 32mm

                        DO6055S065
High Torque Socket 1"x 65mm

                        31022-GW013
Reaction Bar Adapter RRI-BEC150/250

                        33257-RRI-BEC250
Standard Reaction Bar RRI-BEC150/250

                        DOESR-3
Ret Ring

                        BB360F-350
36V 5.0Ah Li-ion Battery
Specifications
| Brand | Red Rooster Industrial |
| Square Drive | 1" |
| Bolt capacity (mm) | 22 ~ 42 |
| RPM | 35 / 5 |
| Torque (Nm) | 500 ~ 2500 |
| Weight w/o battery (kg) | 6,6 |
| Sound level (dB(A)) | <80 |

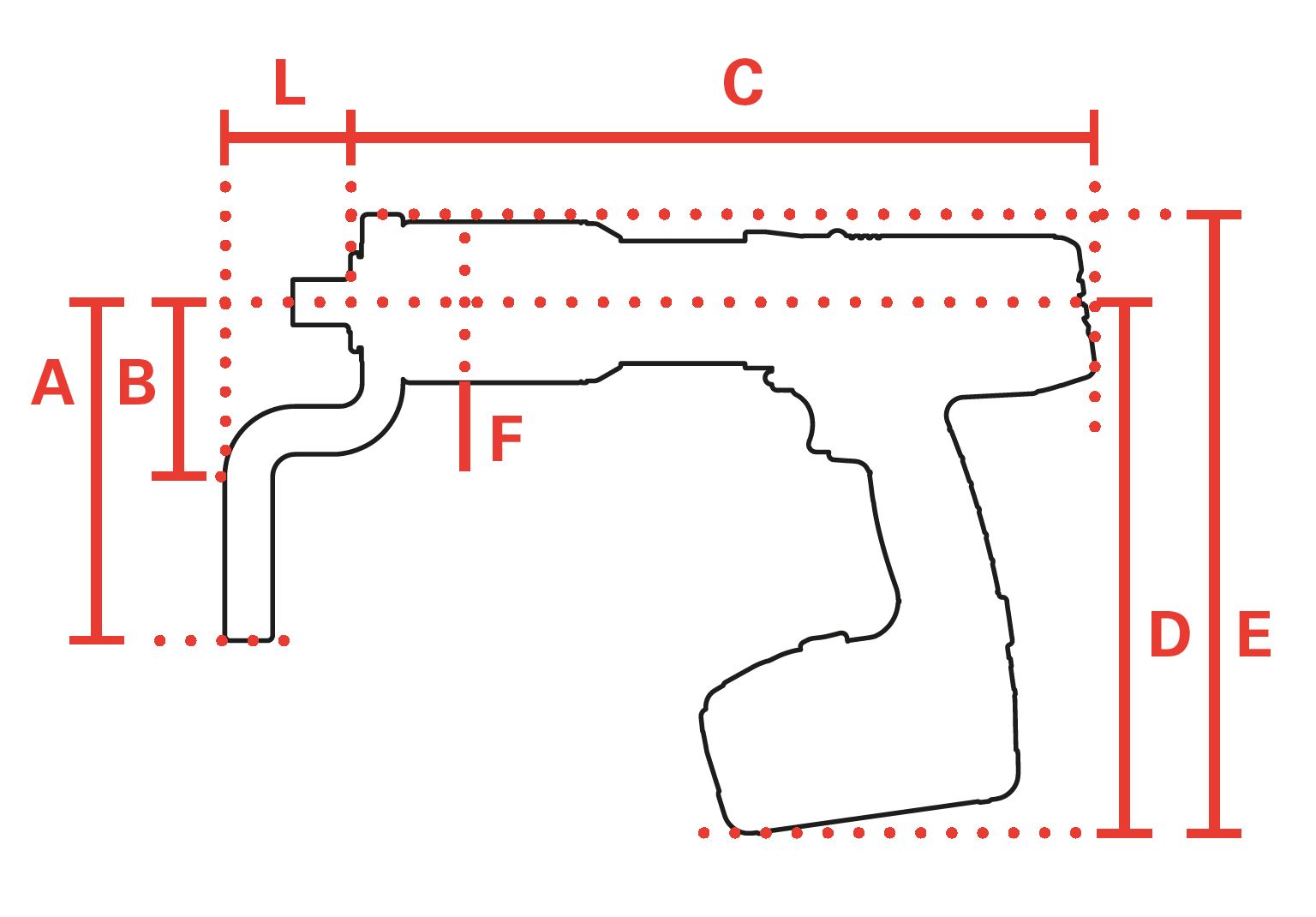

| mm A | 170 |
| mm B | 80 |
| mm C | 368 |
| mm D | 228 |
| mm E | 273 |
| mm F | Ø 82 |
| mm L | 70 |
| Battery voltage (Volt) | 36 |
| Battery type Li-ion….(Ah) | 5,0 |
| EAN | 8717981444106 |
