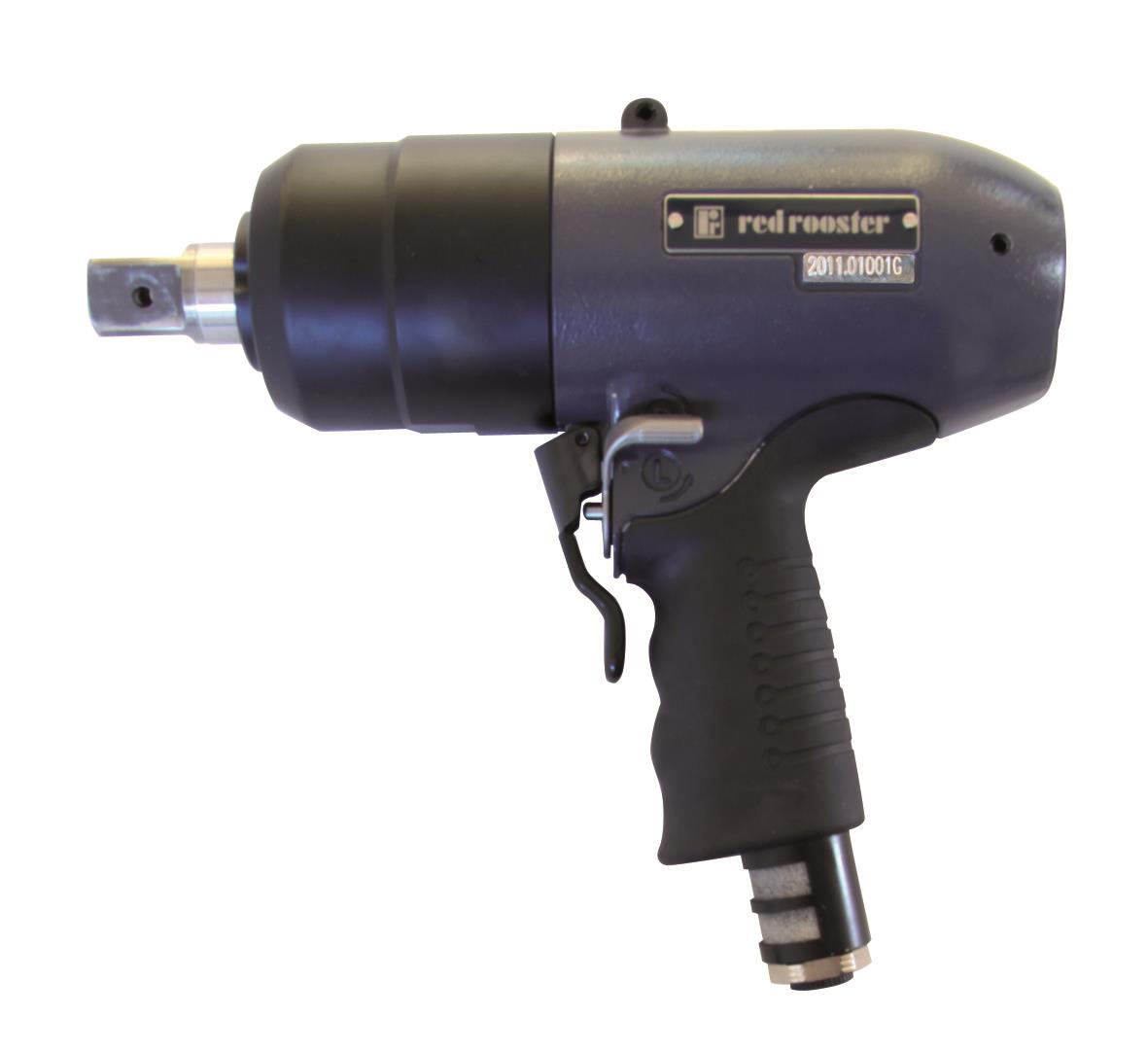

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Pistol model
• Auto shut off function
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
01-0511YO
standard accessories kit
I180-109-A05
Protection Cover RRI-180(T)
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 16 - 18 |
| RPM | 2700 |
| Torque (Nm) | 180 - 255 |
| Airconsumption (l/s) | 12,2 |
| Weight (kg) | 3,80 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| mm A | 263 |
| mm B | 232 |
| Hosediameter (mm) | 11 |
| Square Drive / Hexagon | 3/4" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 3,2 |
| Vibration uncertainty (m/s²) | 0,49 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 80 |
| Sound power (dB(A)) | 91 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981207701 |
