The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Angled model
• Auto shut off function
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
70RH-RT-008
Key Wrench for 70RG, 70RH, 80RH
ATLUB
Air Tool Oil, 1 litre
YouTubeSpecifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 10 - 12 |
| RPM | 2800 |
| Torque (Nm) | 50 - 70 |
| Airconsumption (l/s) | 9,3 |
| Weight (kg) | 1,70 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

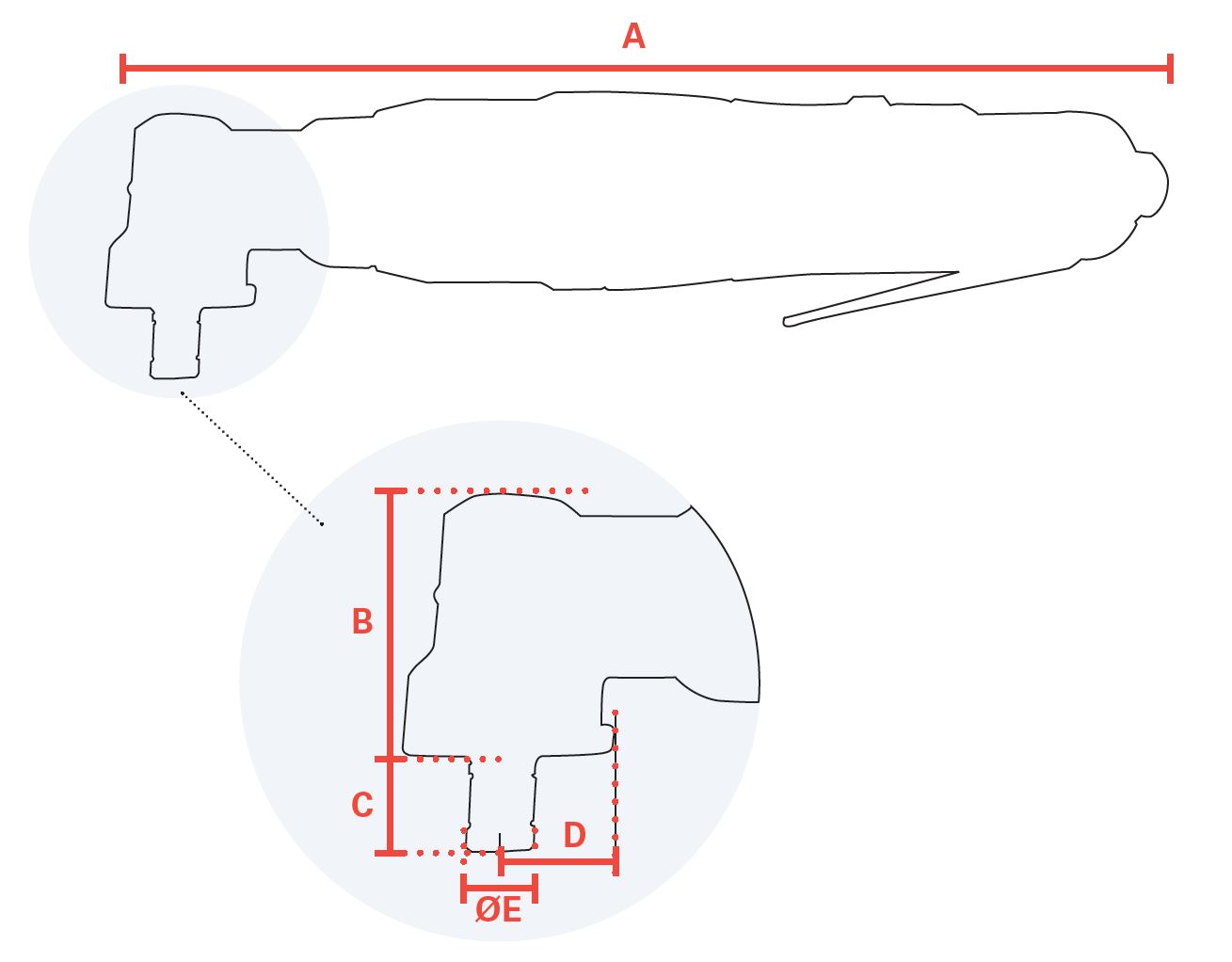

| mm A | 281 |
| mm B | 47 |
| mm C | 21 |
| mm D | 21 |
| mm E | 16 |
| Hosediameter (mm) | 8 |
| Square Drive / Hexagon | 1/2" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 8,7 |
| Vibration uncertainty (m/s²) | 1,35 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 81,7 |
| Sound power (dB(A)) | 92,7 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981280650 |
Manuals
| RRI-80RHT-NO.pdf | Download |
| RRI-80RHT-DE.pdf | Download |
| RRI-80RHT-PL.pdf | Download |
| RRI-80RHT-FR.pdf | Download |
| RRI-80RHT-SK.pdf | Download |
| RRI-80RHT-SV.pdf | Download |
| RRI-80RHT-PT.pdf | Download |
| RRI-80RHT-EL.pdf | Download |
| RRI-80RHT-IT.pdf | Download |
| RRI-80RHT-DA.pdf | Download |
| RRI-80RHT-EN.pdf | Download |
| RRI-80RHT-FI.pdf | Download |
| RRI-80RHT-ES.pdf | Download |
| RRI-80RHT-NL.pdf | Download |
| RRI-80RHT - QR Card.pdf | Download |
