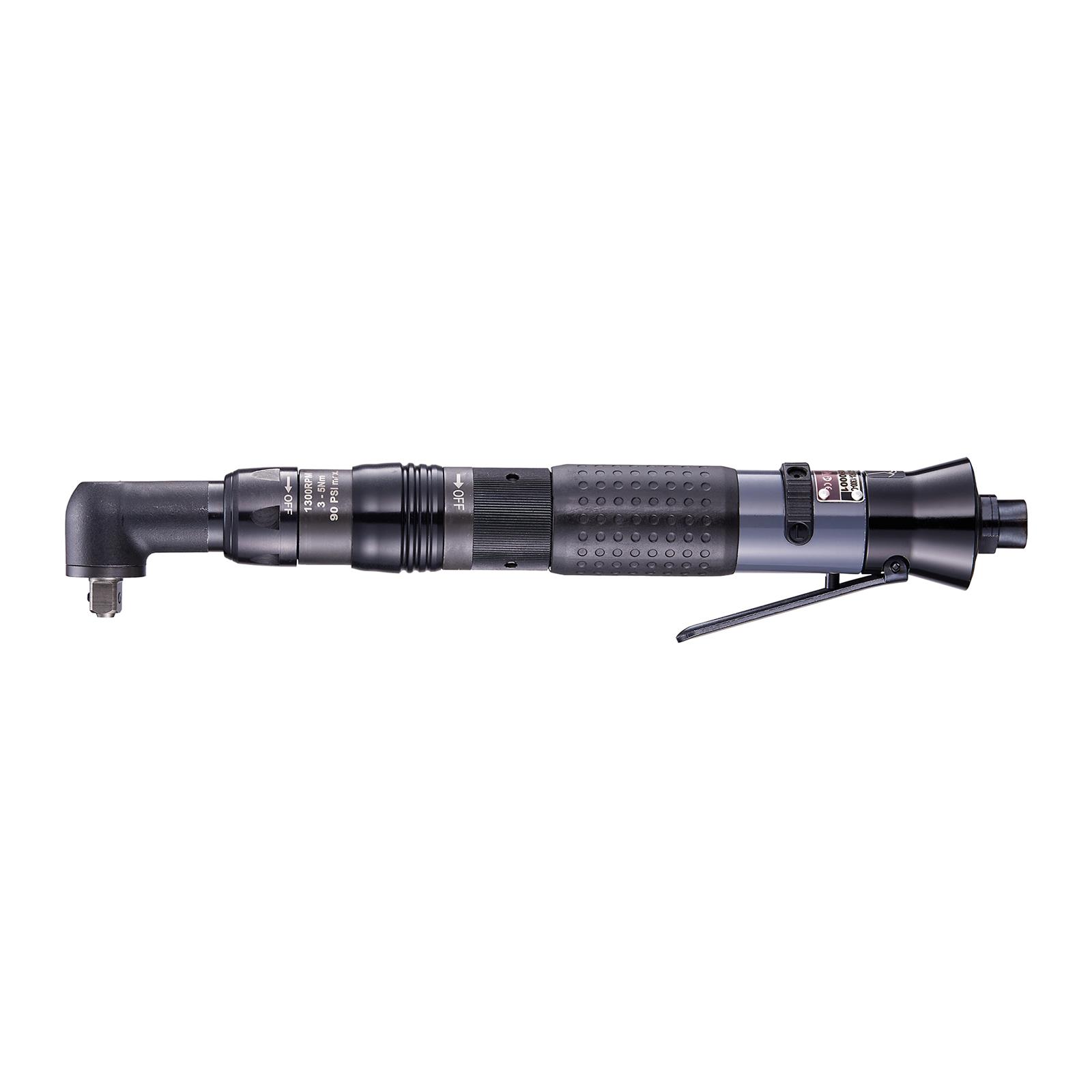

The RED ROOSTER Shut-Off screwdrivers have a large torque-range, are highly accurate and have a low vibration level. Very ergonomic design and low noise level. The special design of the clutch combines low reaction forces with a high repeatability of the torque. This air tool is designed for the assembly industry, where threaded fasteners are used.
Characteristics:
• New angled body-design with soft grip
• Reversible
• Rear-exhaust, silenced
• ergonomic grip, lever start
• easily adjustable
Related products
AC30A-F03E-B
Modular FRL Unit
TW-0
Spring Balancer 0,5-1,5kg
Related accessories
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 4 |
| RPM | 900 |
| Torque (Nm) | 0,5 - 1,8 |
| Airconsumption (l/s) | 6 |
| Weight (kg) | 0,88 |
| Hexagon | 1/4" |
| Sound level (dB(A)) | 68 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

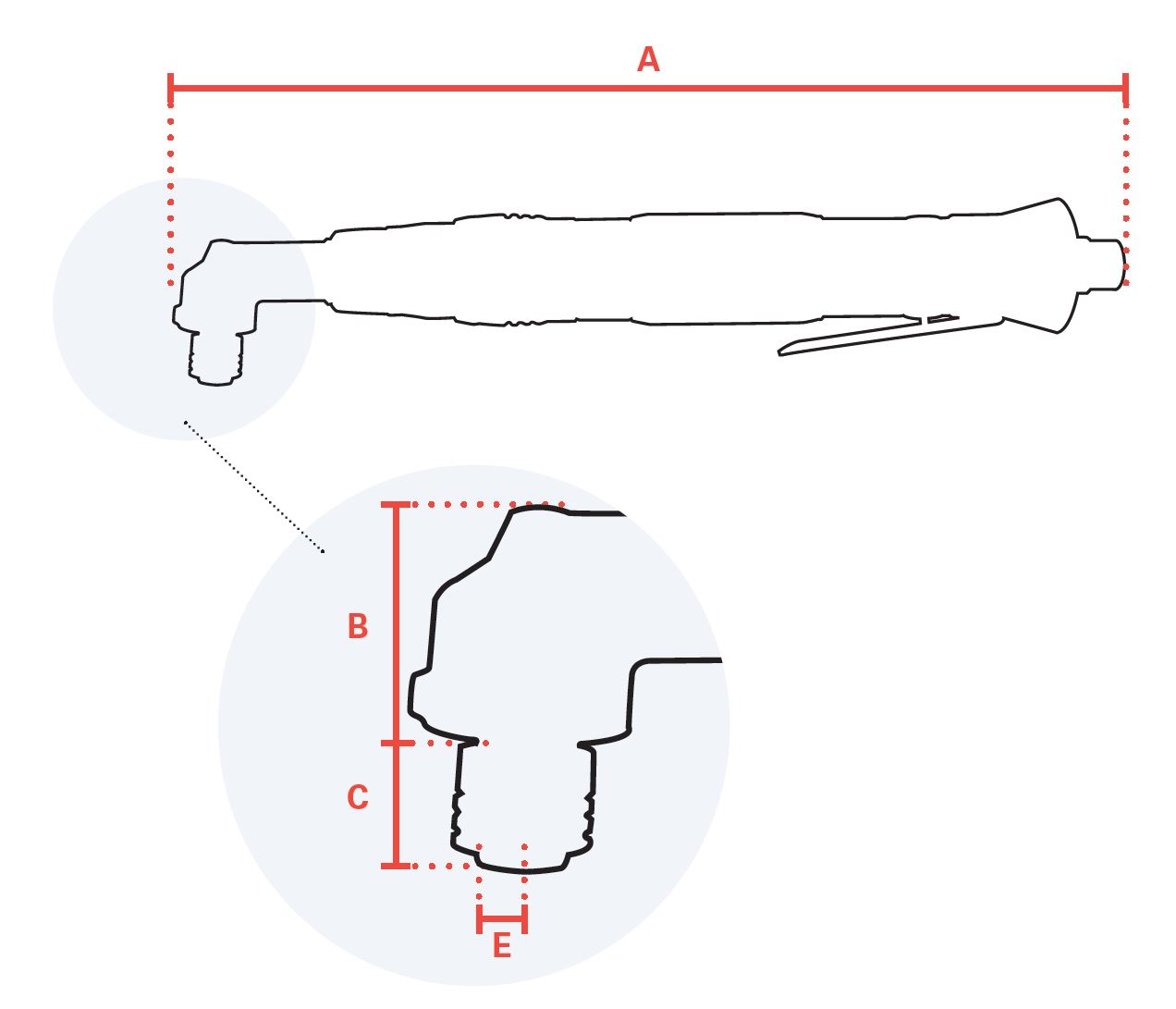

| mm A | 298 |
| mm B | 29,5 |
| mm C | 18 |
| mm D | 14,5 |
| mm E | 16 |
| Hosediameter (mm) | 6,5 |
| Execution | Angle |
| Vibration level (m/s²) | < 2,5 |
| Safety standard | EN ISO 11148-6 |
| EAN | 8717981414673 |
