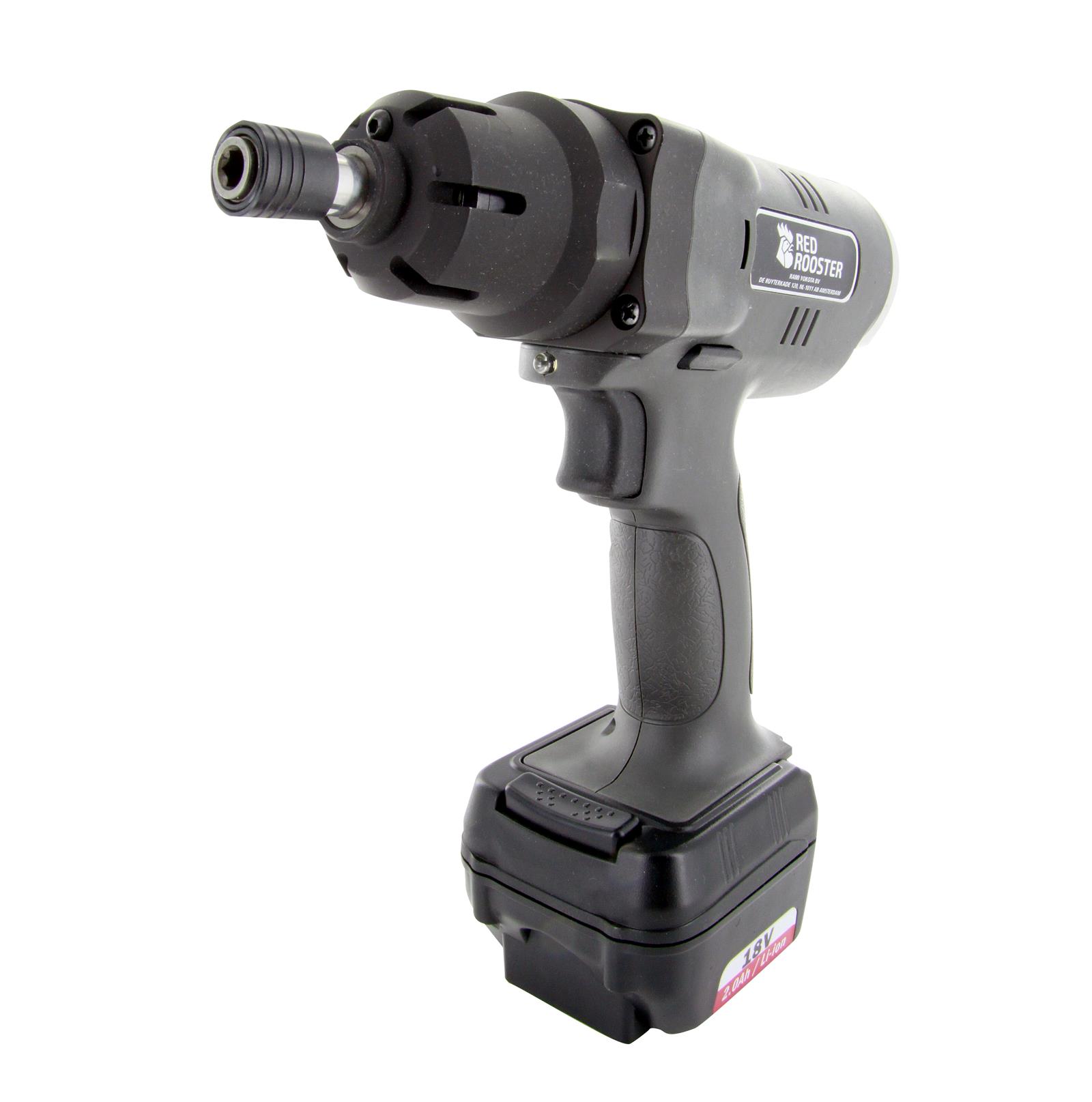

RED ROOSTER Cordless shut-off impulse wrench. High tightening speed combined with good accuracy. No reaction forces during the tightening process. Brushless motor for long motor life and high efficiency. No tightening functionality when battery charge is low, thus process safety improves. Very well suited in areas where cables and hoses impede handling flexibility of tools, such as interiors of cars, coaches and trains.
Characteristics:
• Brushless motor
• Lithium-Ion battery (choice for 2,5 Ah or 5,0 Ah capacity)
• LED status indicates: Reverse, OK, NG, Battery low
• Torque adjustable
• Fine-tuning on hardness of the joint, electronically
• Variable speed control with two-step trigger
• Run-down speed: 4500 RPM

Battery and charger to be ordered separately


Related products

BB200D-325

20V 2.5Ah Battery, Li-ion

B74SC180B

Programmer

BB200D-350

20V 5.0Ah Battery, Li-ion

B84192B

18-20V Charger

E86B-VD

Power Cord (EU)



Related accessories

33116-B200D-01

Protection Cover

C16PW-15

Protection Cover RRI-BIM15

61022-TH005

Tool Holder

33116-B200D-02

Protection Cover

B10PW15

Back Panel Cover (ALU)



Specifications

Brand Red Rooster Industrial
Bolt capacity (mm) 6
RPM 4500
Torque (Nm) 7 - 15
Weight w/o battery (kg) 1,16
Hexagon 1/4"

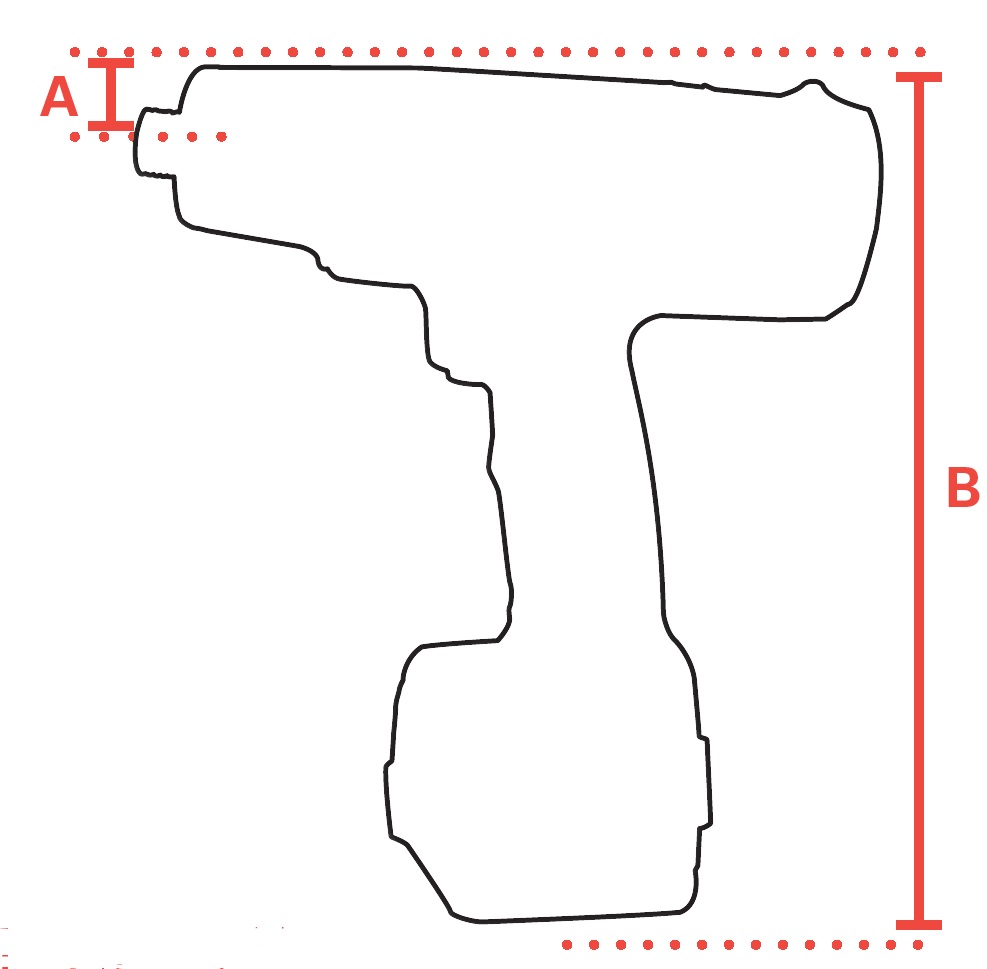

mm A 29
mm B 227
Battery voltage (Volt) 20
Battery type Li-ion….(Ah) 2,5 / 5,0
Safety standard EN ISO 11148-6
Vibration standard EN ISO 28927-2
Vibration value (m/s²) 4,672
Vibration uncertainty (m/s²) 1,5
Sound standard ISO 15744
Sound pressure (dB(A)) 73,5
Sound uncertainty (dB(A)) 3
EAN 8717981326228
