RED ROOSTER cordless angle wrench with automatic shut-off. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility, such as interiors of cars, coaches and trains.
Characteristics:
• Brushless motor
• 18 Volt Lithium-Ion battery
• Led status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque (10-22 Nm)
• Speed 270 RPM
• in-line open geared offset head with 14 mm Hexagon drive
• Compact and light weight
Battery and charger to be ordered separately
Related products
BB200D-325
18V 2.5Ah Battery, Li-ion
BB200D-350
18V 5.0Ah Battery, Li-ion
Related accessories
33116-B200D-01
Protection Cover
33116-B200D-02
Protection Cover
00-4507
Torque Adjust Key RRI screwdriver
Specifications
| Brand | Red Rooster Industrial |
| RPM | 270 |
| Torque (Nm) | 10 - 22 |
| Weight (kg) | 2,3 |

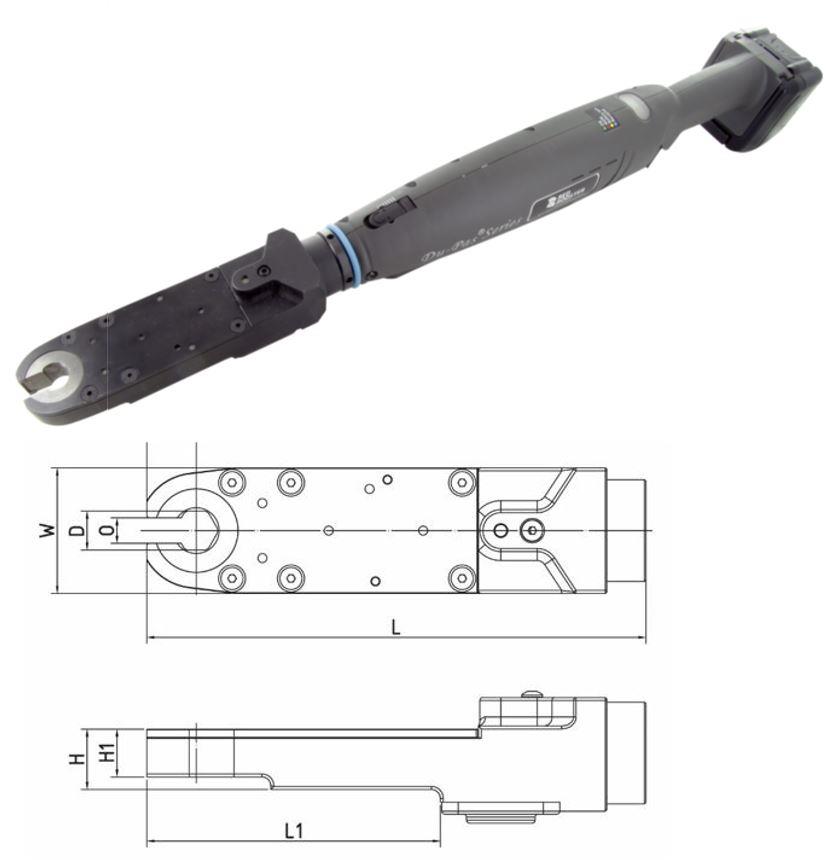

| mm A | 480 |
| mm B | 87 |
| mm D | 14 |
| mm H | 20 |
| mm L | 166,7 |
| mm O | 10,2 |
| mm R | 17 |
| mm W | 40 |
| A/F (mm) | 14 |
| L1 mm | 98,7 |
| H1 mm | 16 |
| Battery voltage (Volt) | 18 |
| Battery type Li-ion….(Ah) | 2,5 / 5,0 |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 12,2 |
| Vibration uncertainty (m/s²) | 1,5 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 74,9 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981357291 |
