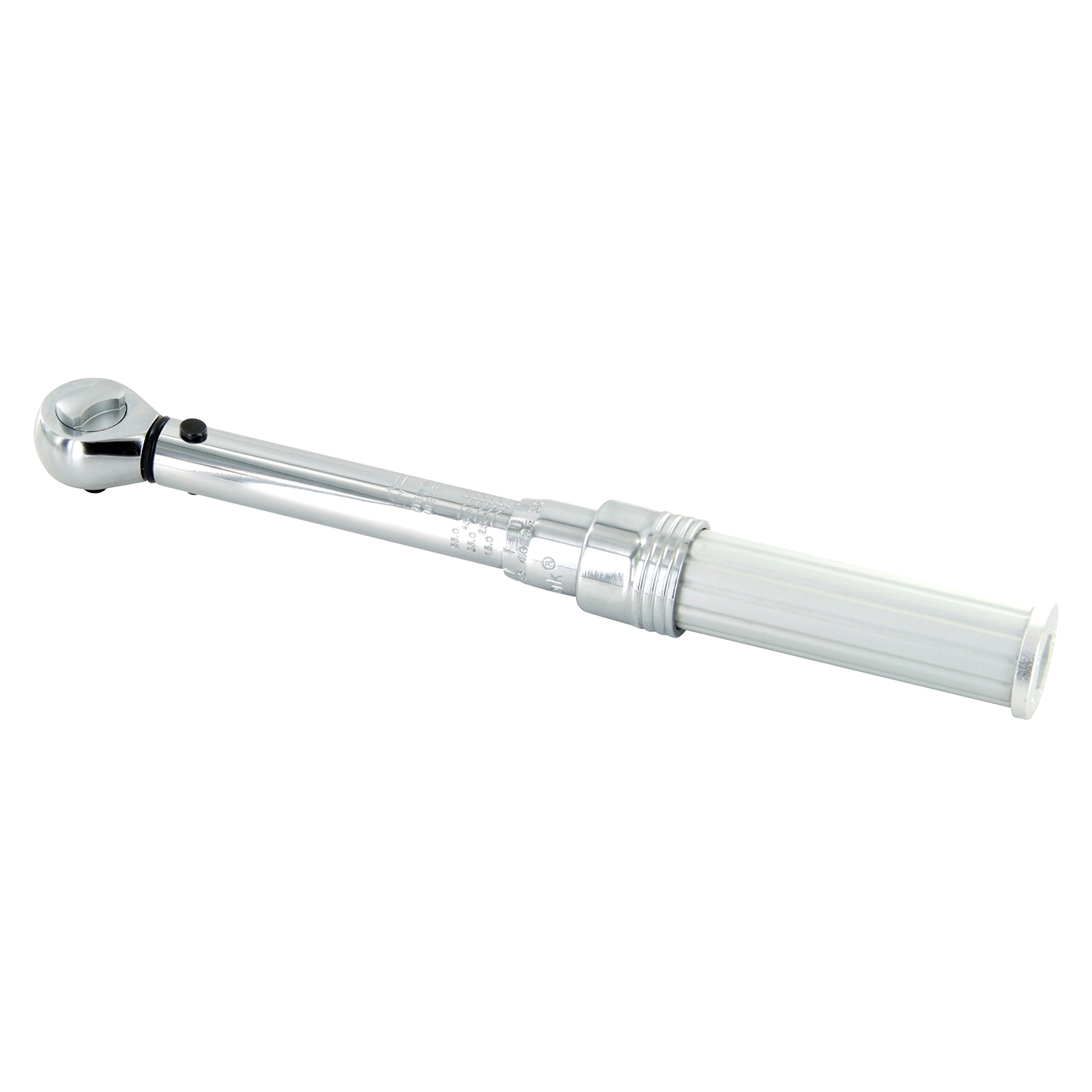

GS Series Mini Micrometer Adjustable (Click) Torque Wrench
• Accuracy: ±4% in clockwise direction from 20% to 100% of capacity.
• Small sizes and light weight, and can be operated in confined spaces.
• Permanently stamped major and minor scales for precision torque values setting.
• Minor scale is 1/10 of increment of main scale.
• Set torque by locking ring. The rebound self-locking structure can reliably lock the required torque.
• Grooved non-slip grip fits comfortably in your hand.
• Various kinds of heads designed for different applications:
- GSM_S / GS_S model: Reversible ratchet head, fine-tooth ratchets suitable for operation in confined spaces requiring only 8 degrees swing.






Specifications

Brand NovaTork
Square Drive 3/8"
Torque (Nm) 8 ~ 40
Weight (kg) 0,37
mm B 36
L mm 260
EAN 8717981421503
