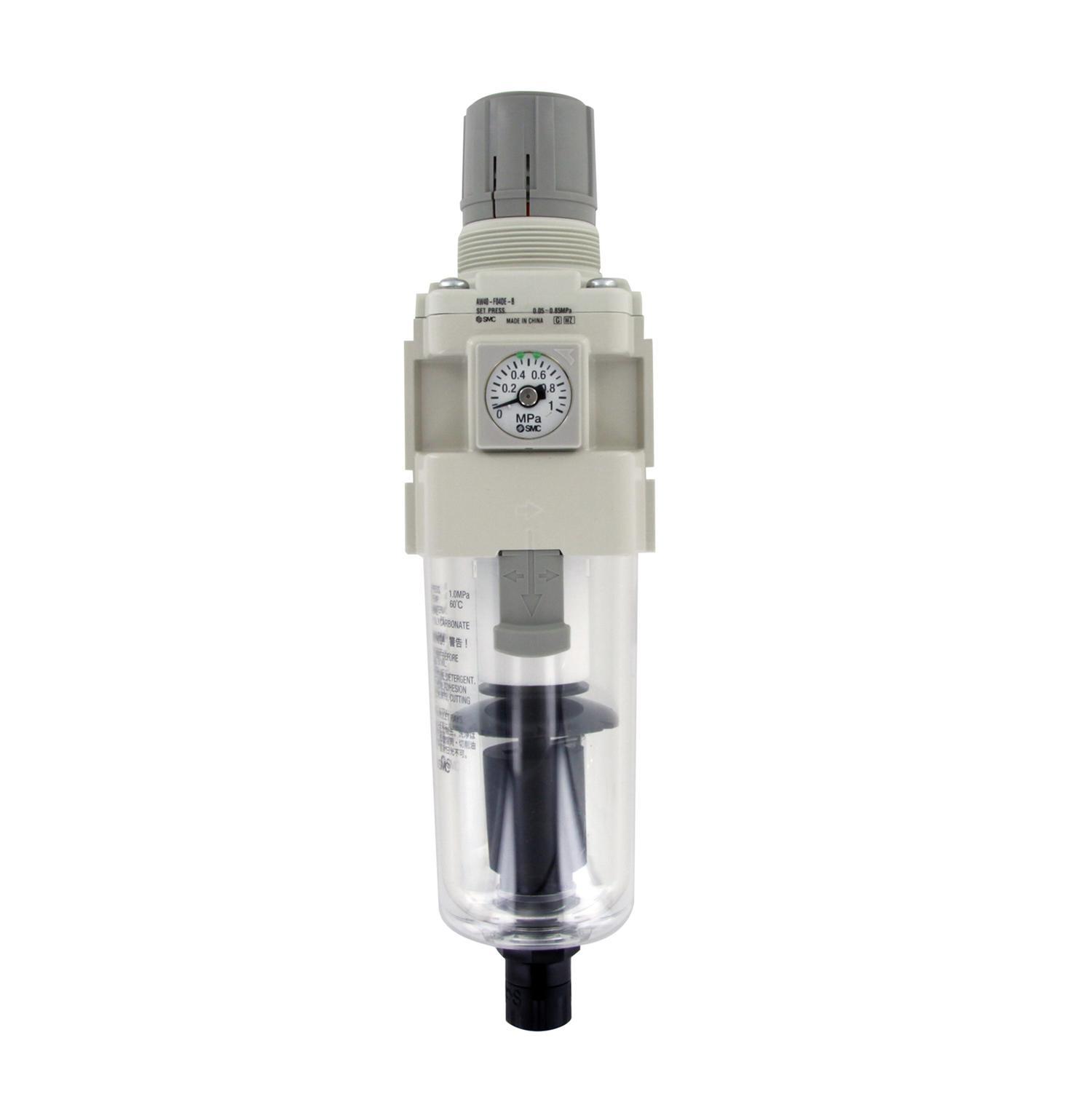

Filtration grade: 5µm
Port Size: 1" G
Auto drain: N.O. (drain port is open when pressure is not applied)
Pressure gauge: Square embedded type pressure gauge (with limit indicator)
Bowl: Polycarbonate
Drain port: With drain cock
Exhaust mechanism: Relieving type
Standard set pressure: 0,05 - 0,85MPa

Related products

AW62P-270AS

Bracket assembly





Specifications

Brand SMC
Connection pressure gauge Integrated
Bowl Polycarbonate
Filter (micron) 5
Airconnection 1"
Airpress max. (MPa) 1
Mountingbrackets AW62P-270AS
Mountingnuts -
(Nl/min) 8000
Workingpressure (MPa) 0,05 - 0,85
EAN 8717981402182


Manuals
