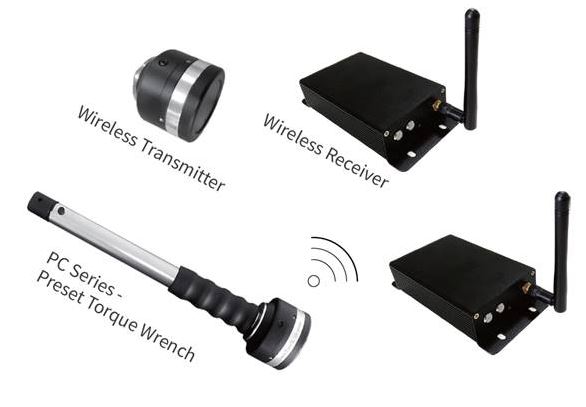

● This One-to-One wireless transmission system is specially designed for the production line to ensure all the bolts are tightened.
● After “Click” , the wireless receiver will capture a signal and meanwhile send out one to the switch, then the system is available.
● Wireless wrenches can be used at a radial distance of 20m.
● Wireless transmission frequency is 2.4GHz.
● The power of receiver is 12V DC, transformed by dedicated adapter.
● When “Click”, the four green LEDs around the transmitter will on, as well as the green LED on the receiver.
● The transmitter is equipped with 3.7V 14500 lithium battery, which can be replaced without delay.
● The antenna of the transmitter is built-in, good looking and safe.


Related products

PCH9120

Torque wrench 25~120Nm

PC2125

Torque wrench 25 ~ 125 Nm

PC120

Torque wrench 4 ~ 20 Nm

PCH920

Torque wrench 4~20Nm

PC260

Torque wrench 10 ~ 60 Nm

PC112

Torque wrench 2,5 ~ 12 Nm

PC230

Torque wrench 6 ~ 30 Nm

PCH925

Torque wrench 5~25Nm

PCH985

Torque wrench 15~85Nm

PCH935

Torque wrench 7~35Nm

PCH950

Torque wrench 10~50Nm



Datasheet

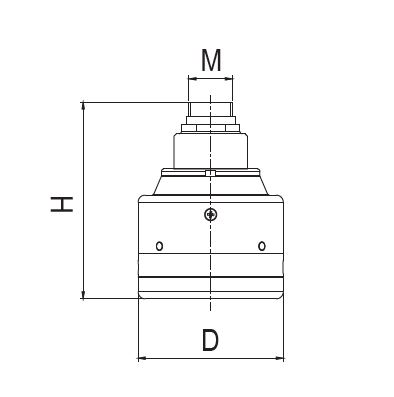

Dimensions



Specifications

Brand NovaTork
mm H 84,1
mm M M18x1,25
EAN 8717981442430
