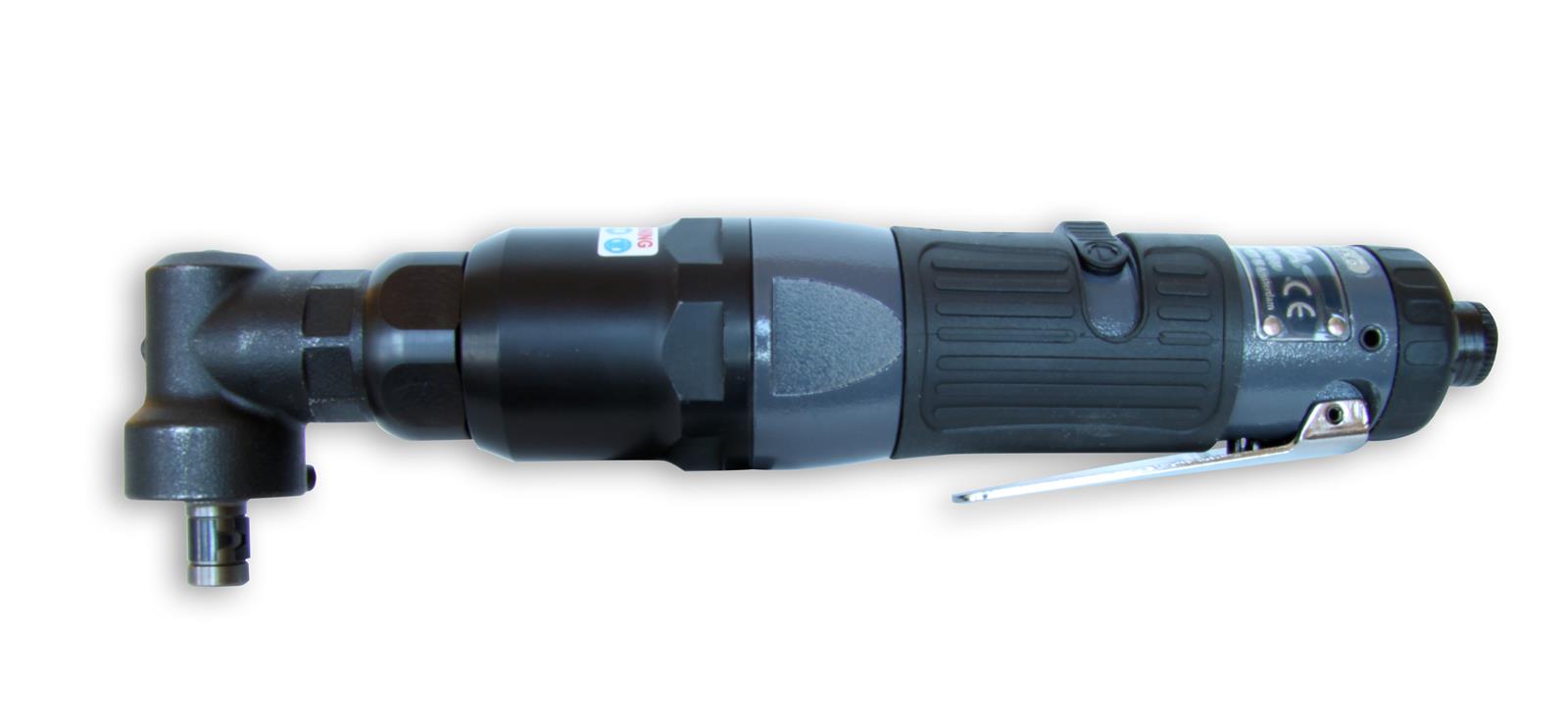

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Angled model
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 6 - 8 |
| RPM | 4300 |
| Torque (Nm) | 9,5 - 16 |
| Airconsumption (l/s) | 4,8 |
| Weight (kg) | 1,20 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

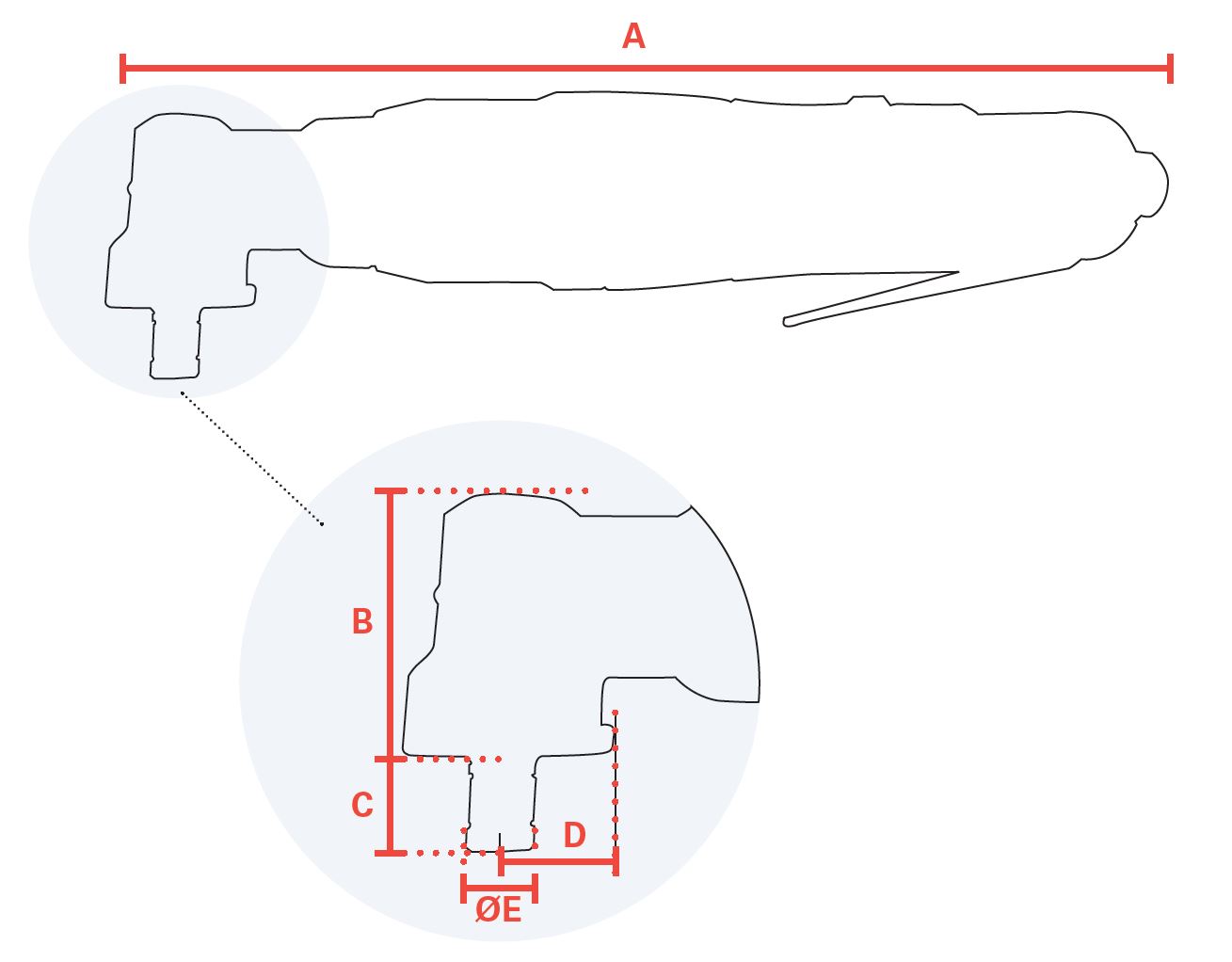

| mm A | 253 |
| mm B | 45 |
| Hosediameter (mm) | 6,5 |
| Square Drive / Hexagon | 1/4" |
| Safety standard | EN ISO 11148-6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 11,6 |
| Vibration uncertainty (m/s²) | 1,64 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 75,1 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981203819 |
