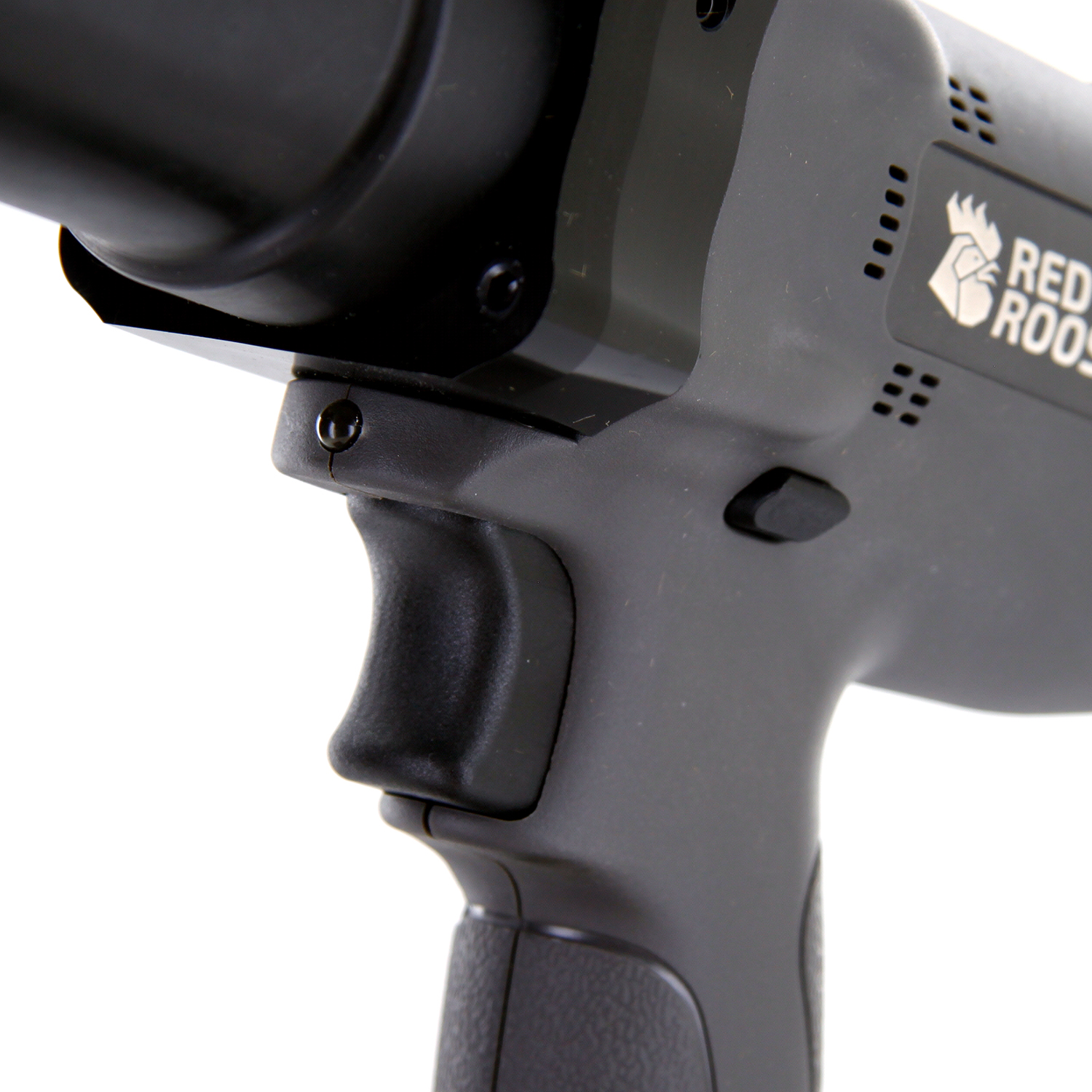

RED ROOSTER Cordless high torque geared wrench. Very well suited for assembly applications with a need of good torque accuracy. Especially in areas where cables and hoses impede handling flexibility. Contactless trigger and forward / reverse switch for a long lifetime.
Characteristics:
• Brushless motor
• 36 Volt Lithium-Ion battery

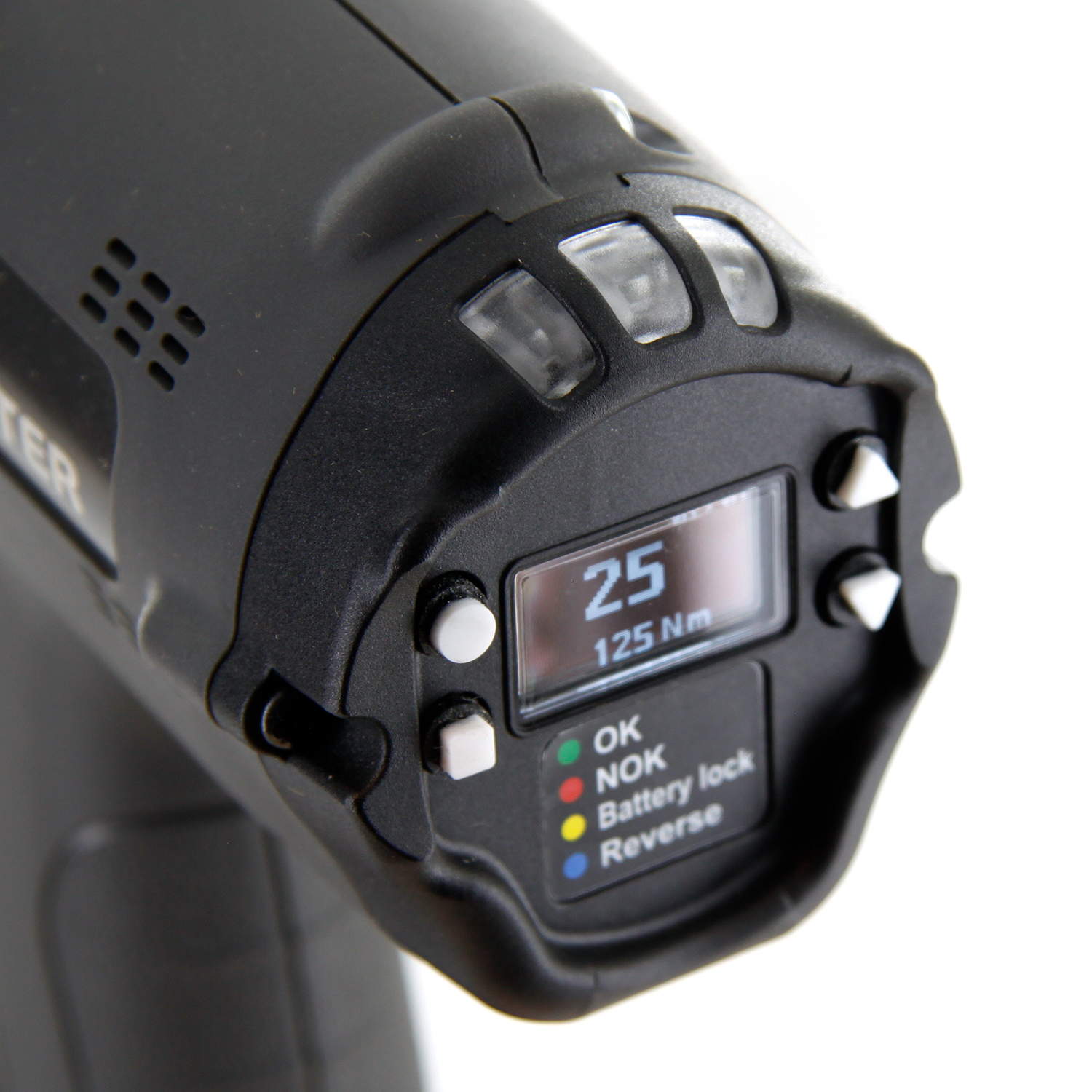

• LED status indicates OK - NOK - REVERSE - BATTERY LOW
• Adjustable torque in 50 steps
• Display shows torque and setting

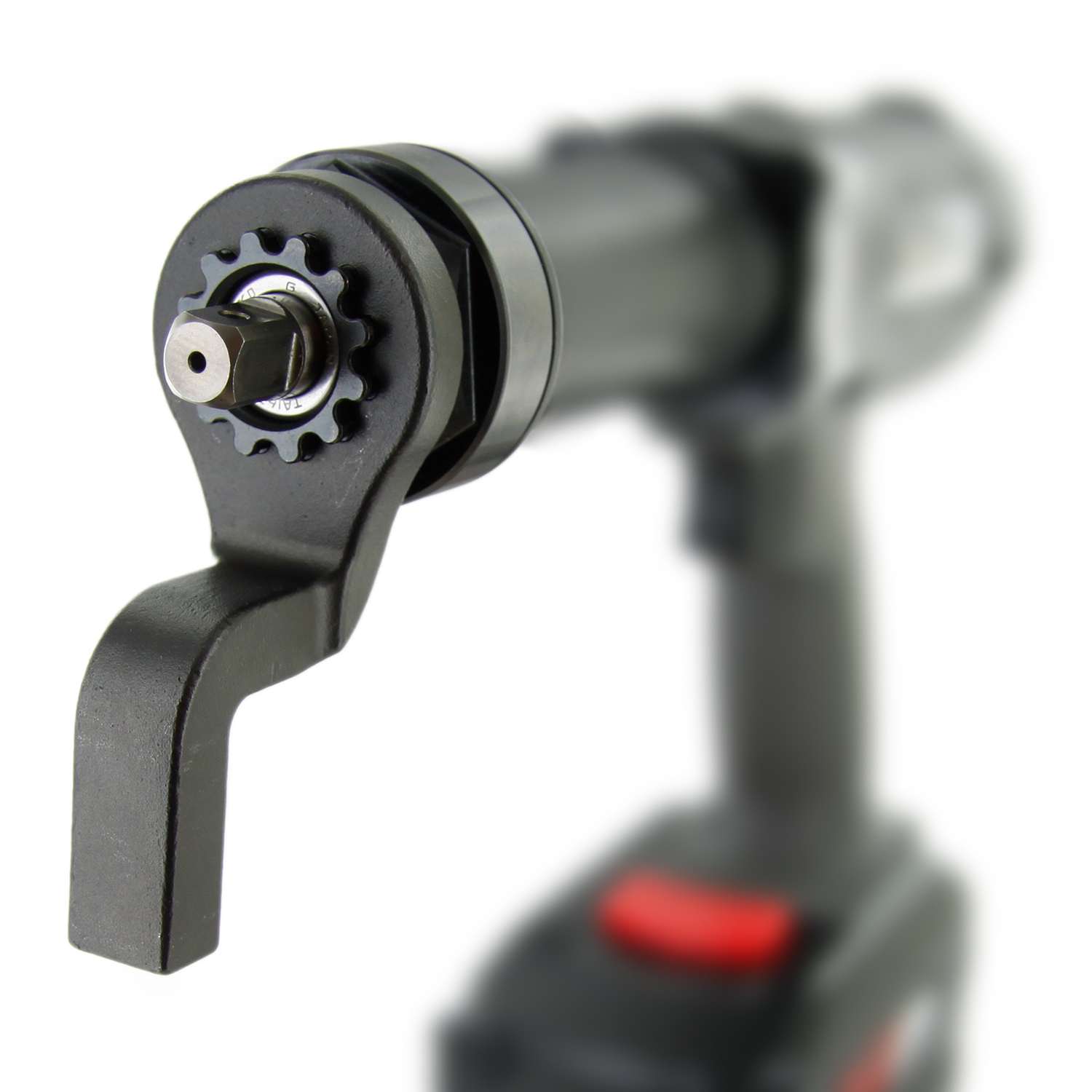

• automatic reaction arm release
• Tightening data retrievable via USB interface
Standard reaction arm is included. Batteries, charger and other accessories must be ordered separately.
Related accessories
61022-GW010
Nose extension for Truck and Bus wheels
31022-GW005
Sliding Reaction Plate RRI-BEC090/120
SW40-283-0102
Hanger
31084-360F
36V Charger
33257-RRI-BEC090
Standard Reaction Bar RRI-BEC090/120
31022-GW001
Reaction Bar RRI-BEC025-250
31022-GW003
Single-Sided Reaction Plate RRI-BEC090/120
31022-GW010
Reaction Bar RRI-BEC025-250
31022-GW002
Reaction Bar Adapter RRI-BEC090/120
BW110
Back Up Wrench 12-Pt A/F 41 mm, max 4745 Nm
DOESR-2
Ret Ring
Koffer RRI-BEC090
Case RRI-BEC090
31022-GW009
Reaction Bar RRI-BEC025-250
31022-GW004
Double-Sided Reaction Plate RRI-BEC090/120
31022-GW018
Reaction Welding Ring RRI-BEC090/120
DOESR-1
Ret Ring
BB360F-350
36V 5.0Ah Li-ion Battery
Specifications
| Brand | Red Rooster Industrial |
| Square Drive | 3/4" |
| Bolt capacity (mm) | 16 ~ 27 |
| RPM | 88 / 15 |
| Torque (Nm) | 180 ~ 900 |
| Weight w/o battery (kg) | 4,1 |
| Sound level (dB(A)) | <80 |
| mm A | 145 |
| mm B | 75 |
| mm C | 319 |
| mm D | 228 |
| mm E | 265 |
| mm F | Ø 68,5 |
| mm L | 54 |
| Battery voltage (Volt) | 36 |
| Battery type Li-ion….(Ah) | 5,0 |
| EAN | 8717981444076 |
