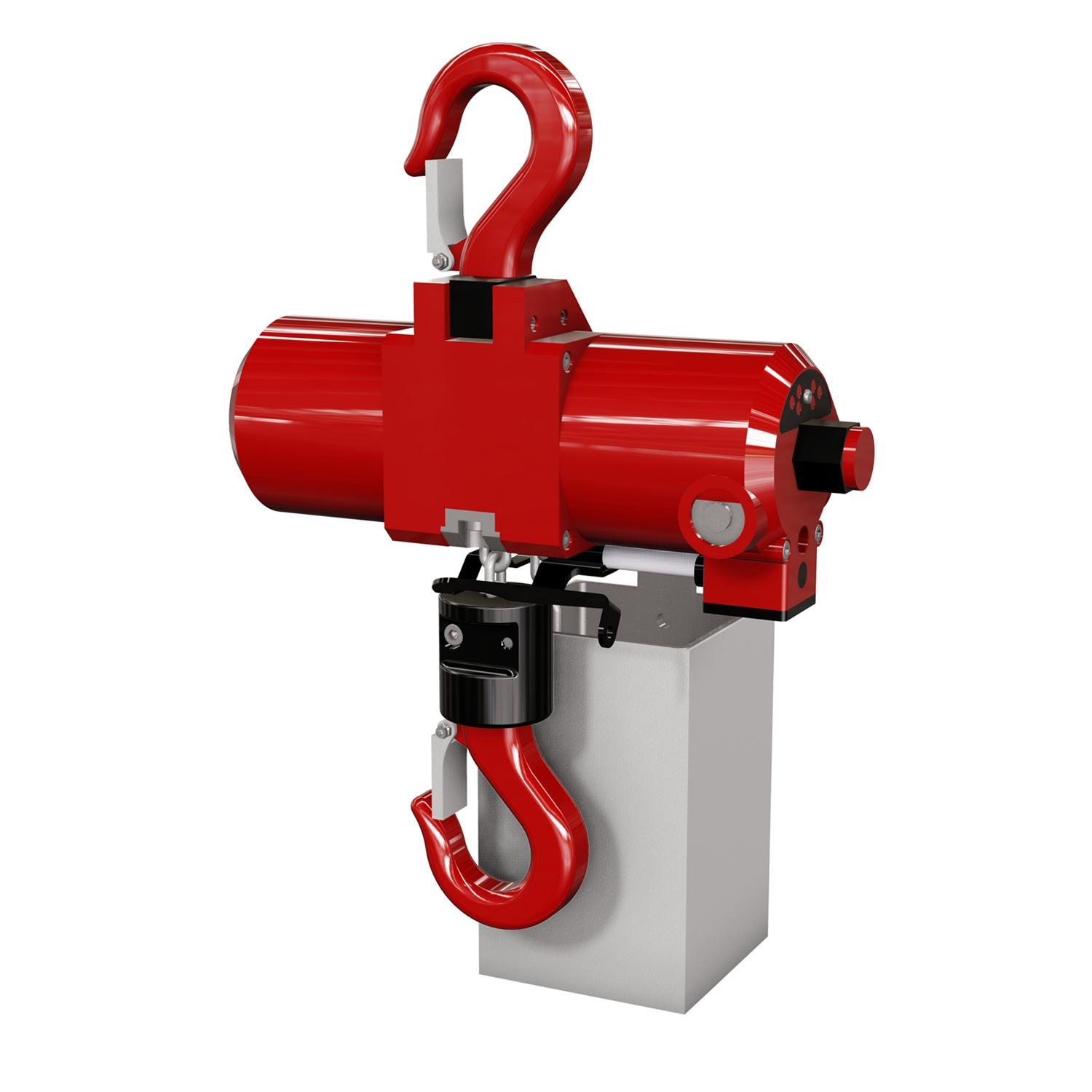

The RED ROOSTER Mini Air Chain Hoists are besides industrial use also very suitable for "Material Handling". Due to the low weight, these hoists are very suitable for service applications.
Characteristics:
• Low weight and therefore very mobile, easy mounting
• TCR-125 only 7 kg, 3 meter lift included
• Precise variable speed control
• Very compact design
• Robust aluminium housing
• Air motor is cooled by the exhaust air (internal)
• Cord control
• Quiet, low noise level, silenced
The price includes three meter of lift and two meter of control length, excluding the chain bucket.
Specifications
| Brand | Red Rooster |
| Number of chain falls | 1 |
| Lowering speed full load (m/min) | 16 |
| Lowering speed 0-load (m/min) | 13 |
| Weight incl. 3m lift (kg) | 7 |
| Lifting speed full load (m/min) | 14 |
| Lifting speed 0-load (m/min) | 19 |
| Chain weight (kg/m) | 0,35 |
| Chain (mm) | 4,0 x 12,0 RTS |
| Chainbag/Chainbucket | + |
| Loadlimiter | - |
| Airconnection | 3/8" BSPT |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 13,3 |

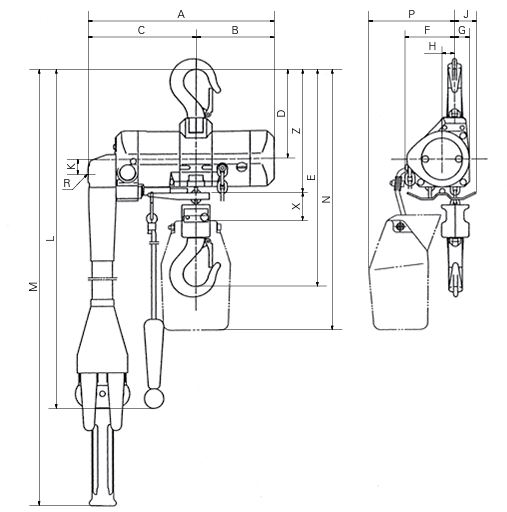

| mm A | 249 |
| mm B | 112 |
| mm C | 137 |
| mm D | 130 |
| mm E | 305 |
| mm F | 71 |
| mm G | 21 |
| mm H | 19 |
| mm J | 33 |
| mm K | - |
| mm L | 1660 |
| mm M | - |
| mm N | 375 |
| mm P | 124 |
| mm X | 40 |
| mm Z | 170 |
| Hosediameter (mm) | 13 |
| SMC Airtreatment unit | AC30-F03DM-8-B |
| Capacity (kg) | 125 |
| EAN | 8717981391691 |
