RED ROOSTER Industrial pneumatic-hydraulic rivet nut setter. Fast and powerful, with low air consumption per blind rivet nut. Lightweight and ergonomically designed for optimum ease of use. Comes with multiple adapters from M4 up to M12.

Features:
• fast and powerful
• low air consumption
• ergonomic and lightweight
• adapters for M4, M5, M6, M8, M10 and M12
• Including case, keys, oiler and rubber stand




Related accessories

CP258A14

Bolt (M6)

CP258A13

Bolt (M5)

CP258A16

Bolt (M10)

CP258A17

Bolt (M12)

CP258A12

Bolt (M4)

CP258A15

Bolt (M8)



Specifications

Brand Red Rooster Industrial
Weight (kg) 2,2
Sound level (dB(A)) 82
Airconnection PT 1/4"
Airconsumption (liter per cut) 1,5
Max. capacity M4-M12* (*M12 @ 7 bar)

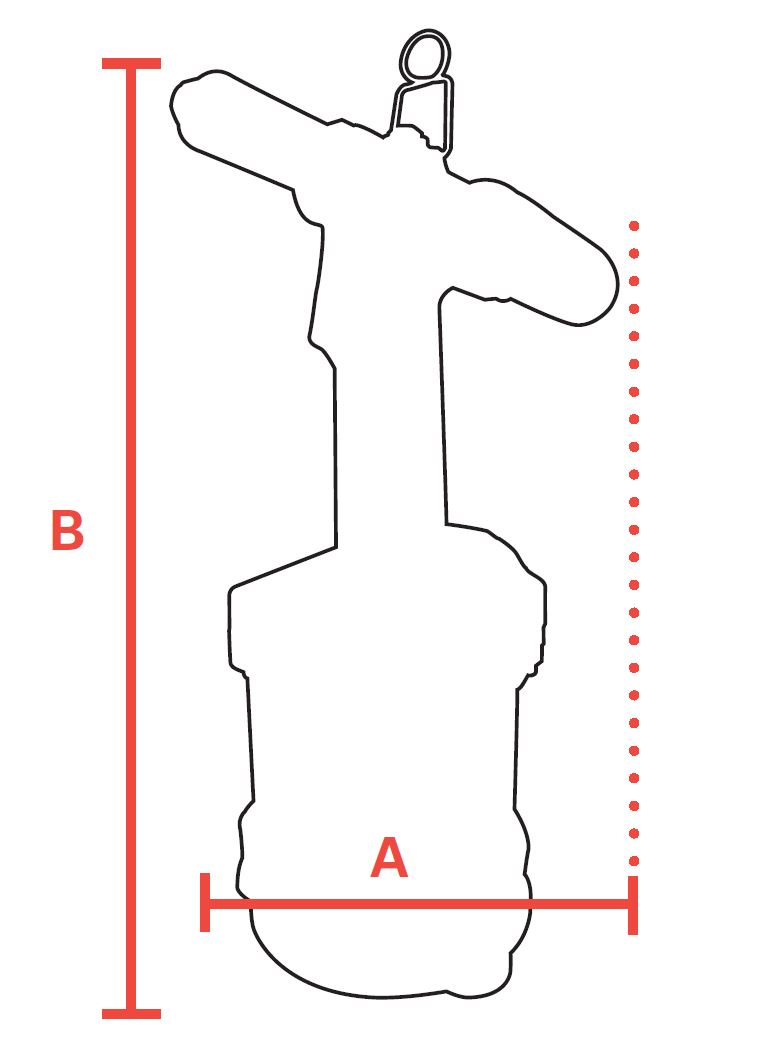

mm A 298
mm B 345
Stroke (mm) 6
Hosediameter (mm) 10
Vibration level (m/s²) 1,0
Pulling force (N) 16000
Maximum Airpressure (Bar) 6,3
Safety standard EN ISO 11148-1
EAN 8717981364725



Manuals
