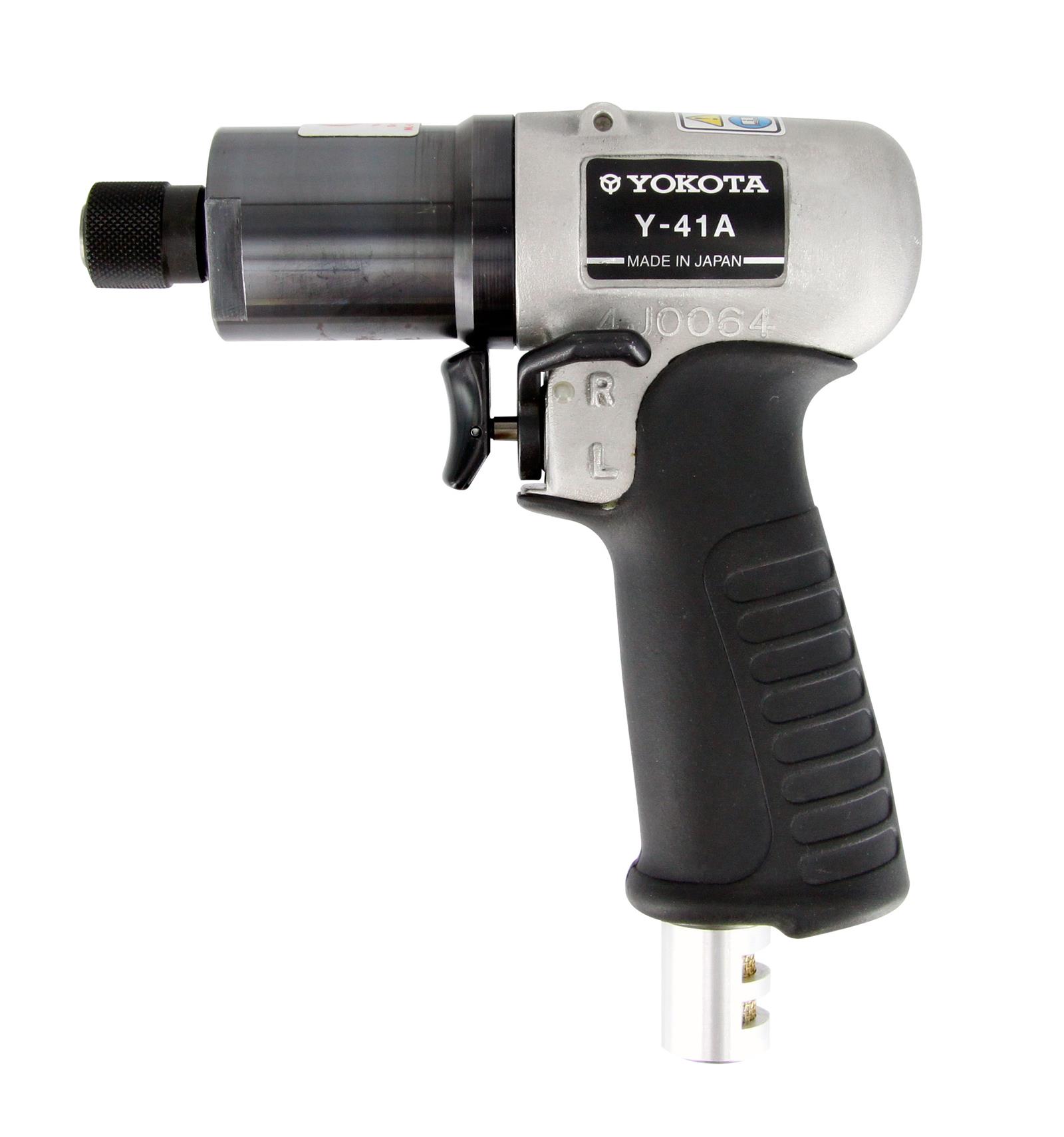

Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Pistol model with double chamber airmotor.
Related products
RRI-9001/1
Spring balancer 0,5 -1,5 kg
Related accessories
61022-TH001
Tool Holder, diameter 42mm
0160-0029-00-00
Rubber protection cover Y-46
Specifications
| Brand | Yokota |
| Bolt capacity (mm) | 5 - 6 |
| RPM | 8000 |
| Torque (Nm) | 16 - 26 |
| Weight (kg) | 0,87 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |
| Airconsumption fullload (l/s) | 5,8 |
| mm A | 158 |
| mm B | 18 |
| Hosediameter (mm) | 6,5 |
| Square Drive / Hexagon | 1/4" |
| Safety standard | EN ISO 11148-6 |
| Air consumption no load (l/s) | 9,6 |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | < 2,5 |
| Vibration uncertainty (m/s²) | 1 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 79 |
| Sound uncertainty (dB(A)) | 3 |
| EAN | 8717981021208 |
