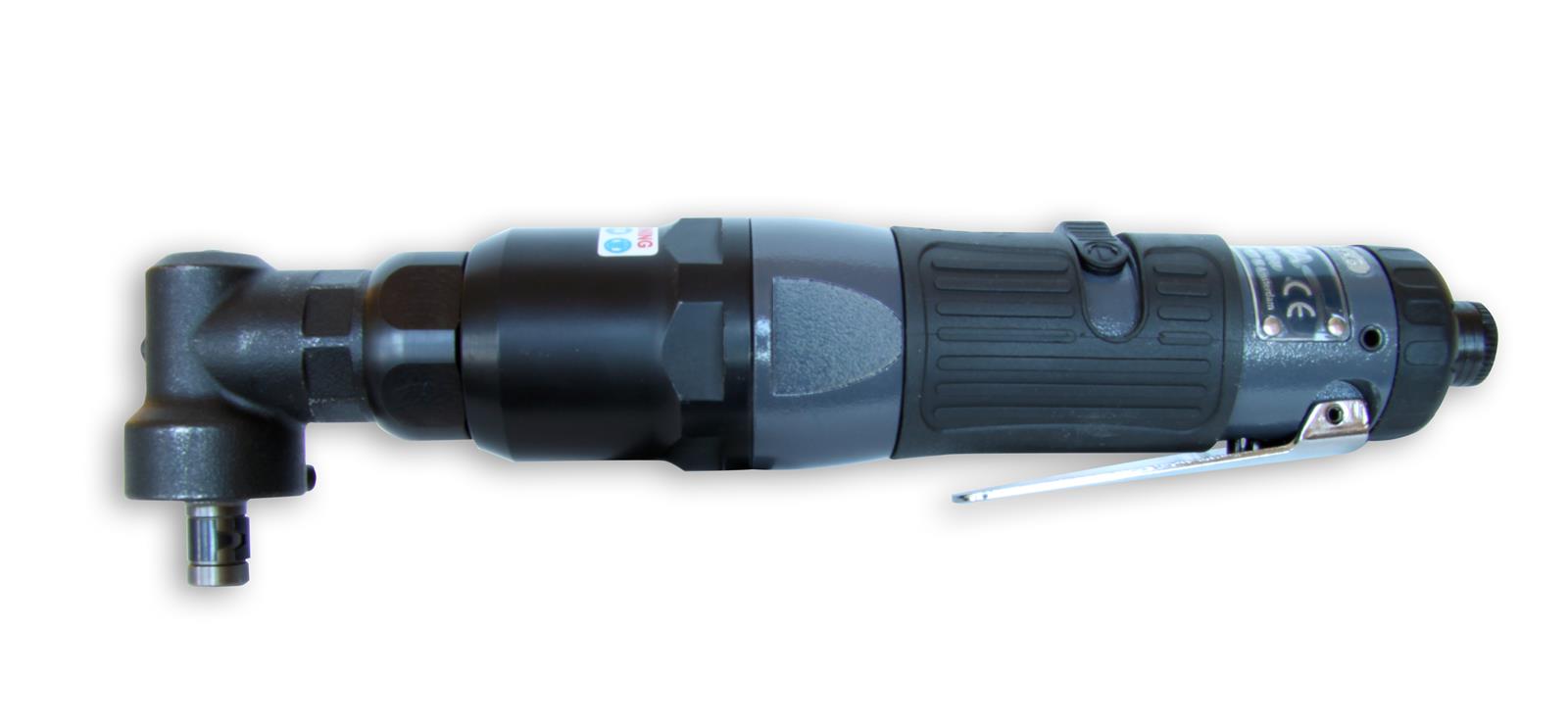

The RED ROOSTER Impulse wrenches are handheld tools made for assembly with threaded fasteners. Impulse wrenches increase productivity. Typically meant for use in: Production of agricultural machinery, production of pumps, motors, bikes and any other serial production. The tool has a wide body air motor. Torque level adjustable in the impulse mechanism.
Characteristics:
• Lightweight
• Free of reaction forces
• Low noise and vibration levels
• Powerful and fast
• High repeatability of the torque level
• Angled model
Related products
AC30A-F03E-B
Modular FRL Unit
Related accessories
ATLUB
Air Tool Oil, 1 litre
Specifications
| Brand | Red Rooster Industrial |
| Bolt capacity (mm) | 8 |
| RPM | 4700 |
| Torque (Nm) | 15 - 22 |
| Airconsumption (l/s) | 6,2 |
| Weight (kg) | 1,30 |
| Airconnection | PT 1/4" |
| Airpress max. (MPa) | 0,63 |

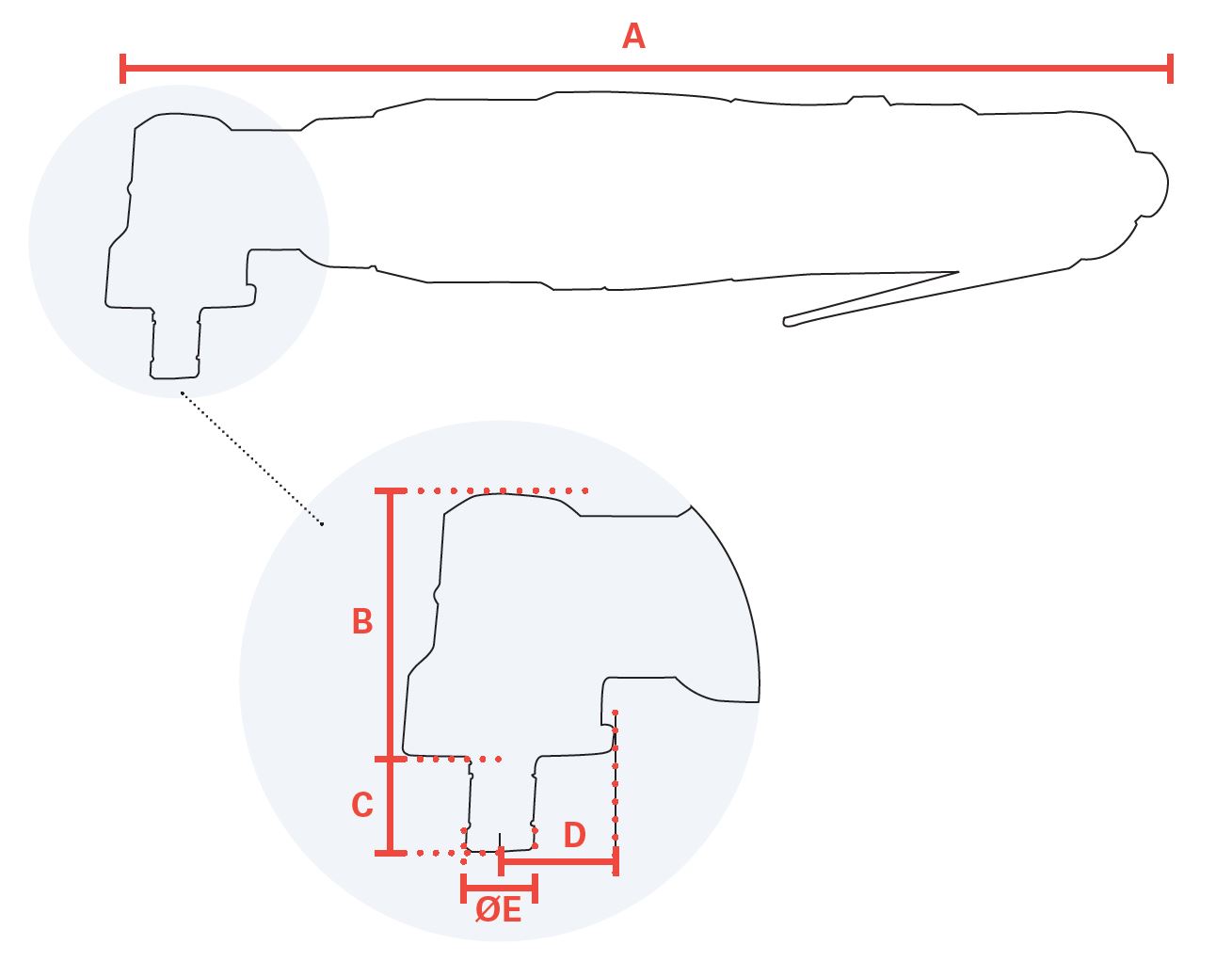

| mm A | 264 |
| mm B | 45 |
| Hosediameter (mm) | 8 |
| Square Drive / Hexagon | 1/4" |
| Safety standard | EN ISO 11148-6 |
| Formal Capacity | 15 - 22 |
| Formal Serie From | 2017.11052GB |
| Vibration standard | EN ISO 28927-2 |
| Vibration value (m/s²) | 12,2 |
| Vibration uncertainty (m/s²) | 1,7 |
| Sound standard | ISO 15744 |
| Sound pressure (dB(A)) | 76,9 |
| Sound uncertainty (dB(A)) | 3 |
| Product Group | Impulse Wrenches |
| Sales Group | 018 |
| UNSPSC number | 27131501 |
| Eclass number | 21061206 |
| EAN | 8717981203826 |
